IPMTB-GS Motherboard Reference Guide
7 Connectors

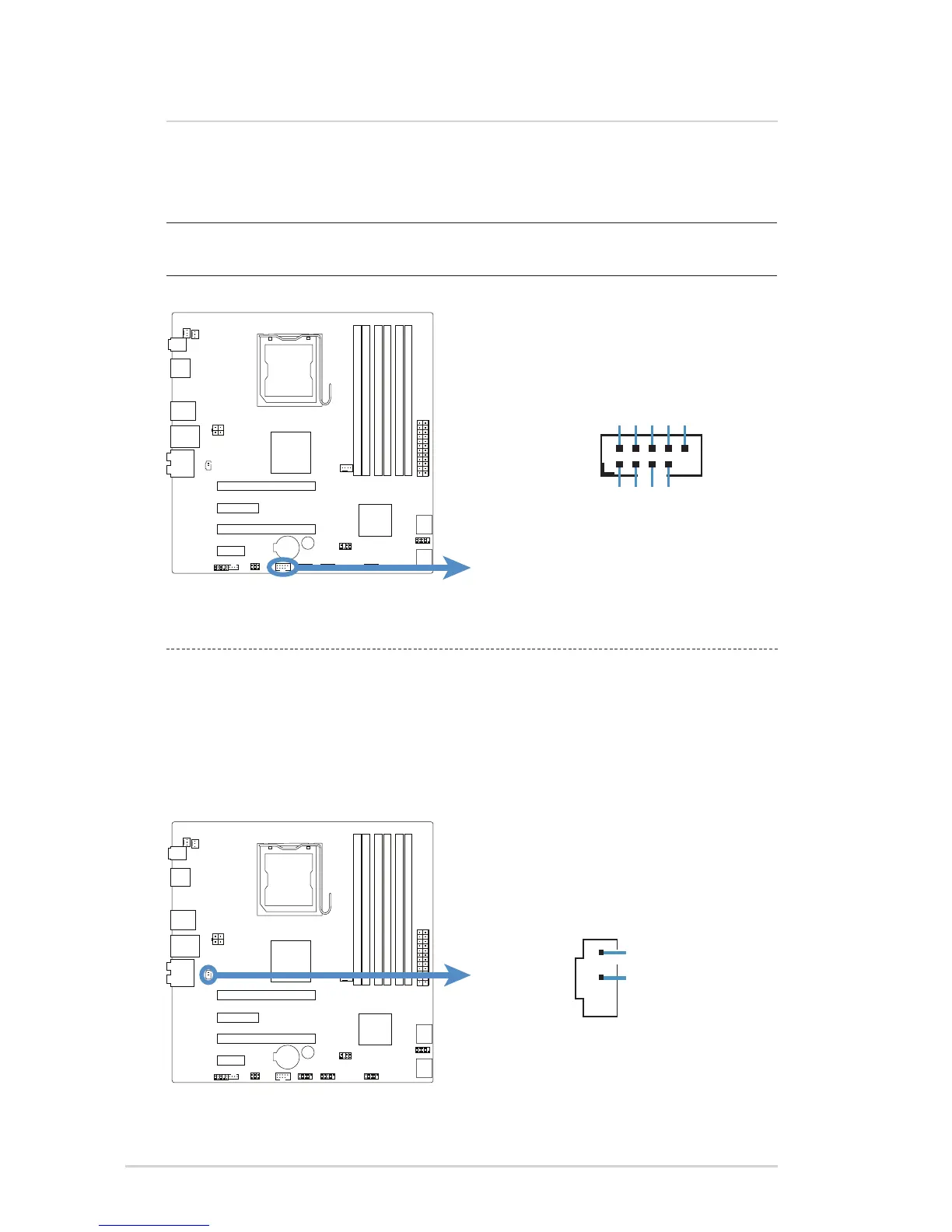

F_1394
IEEE 1394 port connector
This connector is for a 1394 port. Connect the 1394 cable from the system front
panel to this connector.
WARNING: Never connect a USB cable to the IEEE 1394 connector. Doing
so will damage the motherboard!
TPA*(-) Ground TPB*(-) (+)12V Ground
TPA*(+)
Ground
TPB*(+)
(+)12V
Digital Audio connector
This connector is for the S/PDIF audio module to allow digital sound output.
Connect one end of the S/PDIF audio cable to this connector and the other end to
the S/PDIF module (may require separate purchase).
SPDIF_OUT2
SPDIF Out
Ground
