1. PV-plugs
2. Socket for RS485-cable
3. Socket for ethernet cable
4. Wi-antenna
5. Opening for digital input and
digital output
6. AC-cable plug
7. Connection points for additional
PE-cable
EN

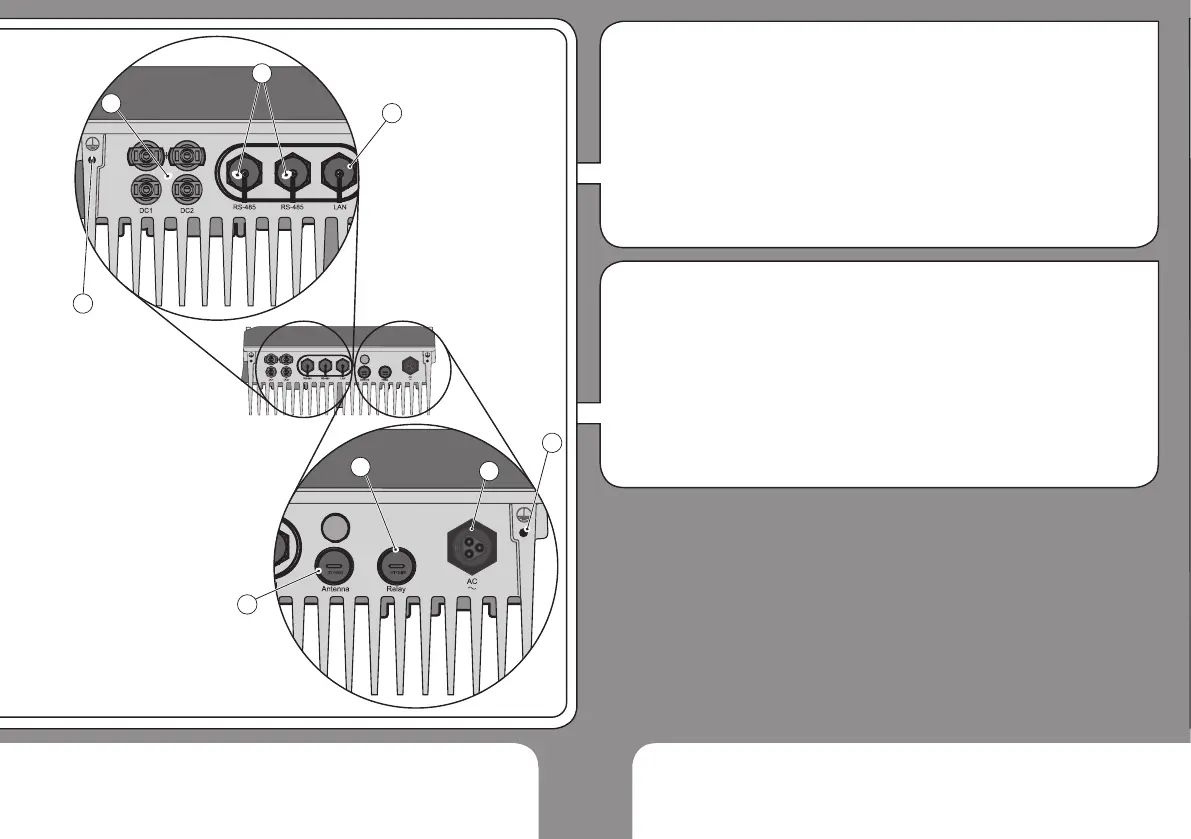

Connections on the Inverter
4
1
3
2
5
7
7
6
1. Connettore FV
2. Presa per cavo RS485
3. Presa per cavo Ethernet
4. Antenna WLan
5. Apertura per ingresso digitale e
uscita digitale
6. Connettore per cavo AC
7. Collegamento per ulteriore
connessione PE
Collegamenti con l’inverter
IT
