Warnning
Safety wire.This wire must connect to the ground of car.Otherwise,there are no picture on
the TFT screen when playing video le or a picture.

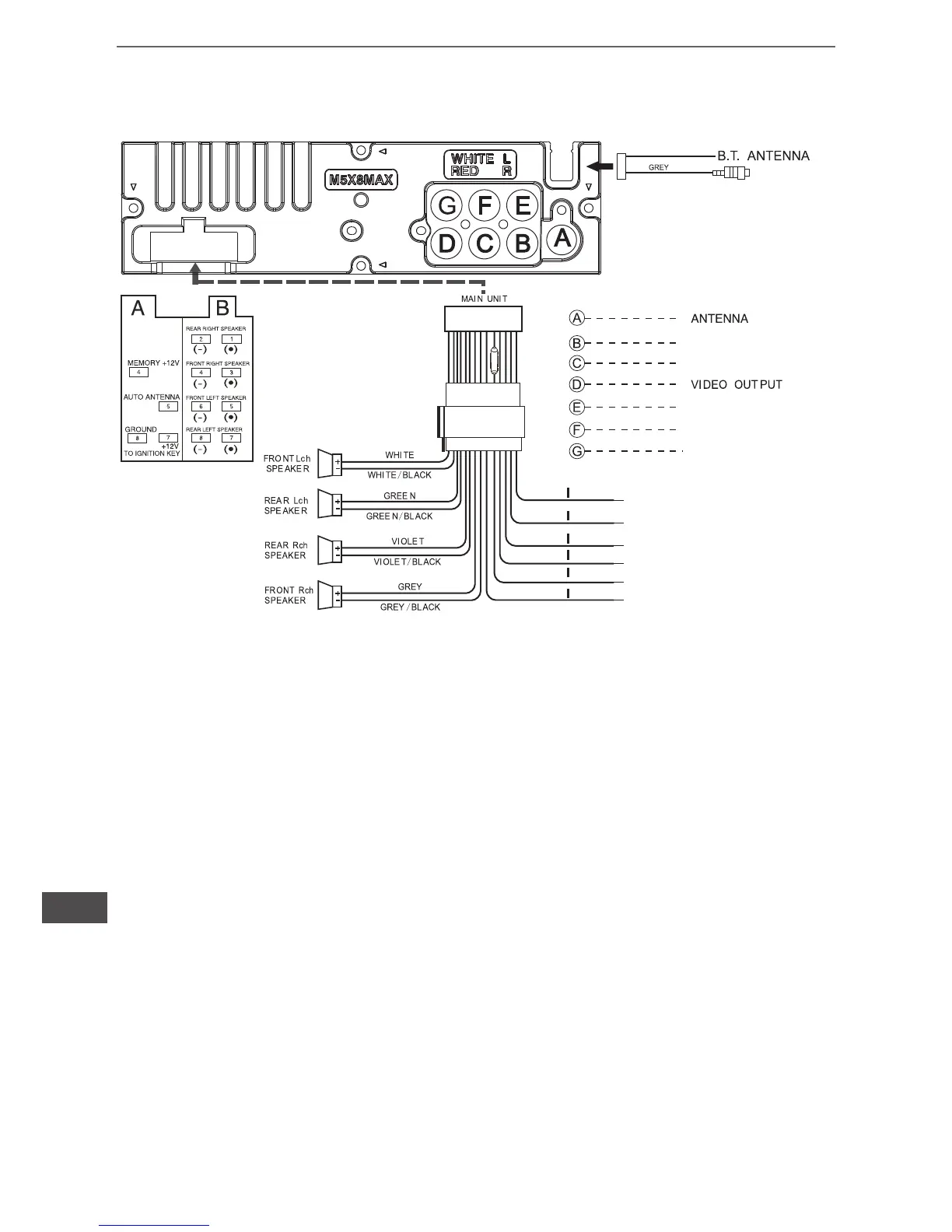

DIAGRAM PODŁĄCZANIA PRZEWODÓW
BASIC OPERATION
INITIAL SYSTEM STARTS- UP
Operating the unit for the rst time or after replacing the car battery, you should press ( 14) to
detach the front panel, and LED ( 15) will be blinking. Press( 1) Reset button with a pointed object(
such as a ballpoint) to set the unit to initial procedure.
Note: When some errors occur in the LCD display, you can also press RESET button to resume
tonormal. And it will erase the clock setting and some memorized functions.
TURNING THE UNIT ON/OFF
Press any button to turn on the unit, Press (2)POWER button more than 3 seconds to turn off.
15A
RE AR Lc h LI NE OUT
RE AR Rc h LI NE OUT
FR ON T Lc h LI NE OUT
FR ON T Rc h LI NE OUT
BA CK VI EW I NP UT
SU BWO OF ER
IGNITION SWITCH (B+)
PINK
BROWN
RED
BLACK
YELLOW
BLUE
BACK VIEW (B+)
SAFETY WIRE
GROUND (B-)
MEMORY BACK -UP
POWER ANTENNA
To Next Page
