5. Cable Information
5.1. Cable for Pressure Inputs
12 feet (3.7 m) in length with a 4 pin connector to connect a pressure sensor on one end
and a male DB 15connector to connect to the PressureMAT on the other end
(DB15 connector connected to PendoTECH Part Number PDKT-650-298)

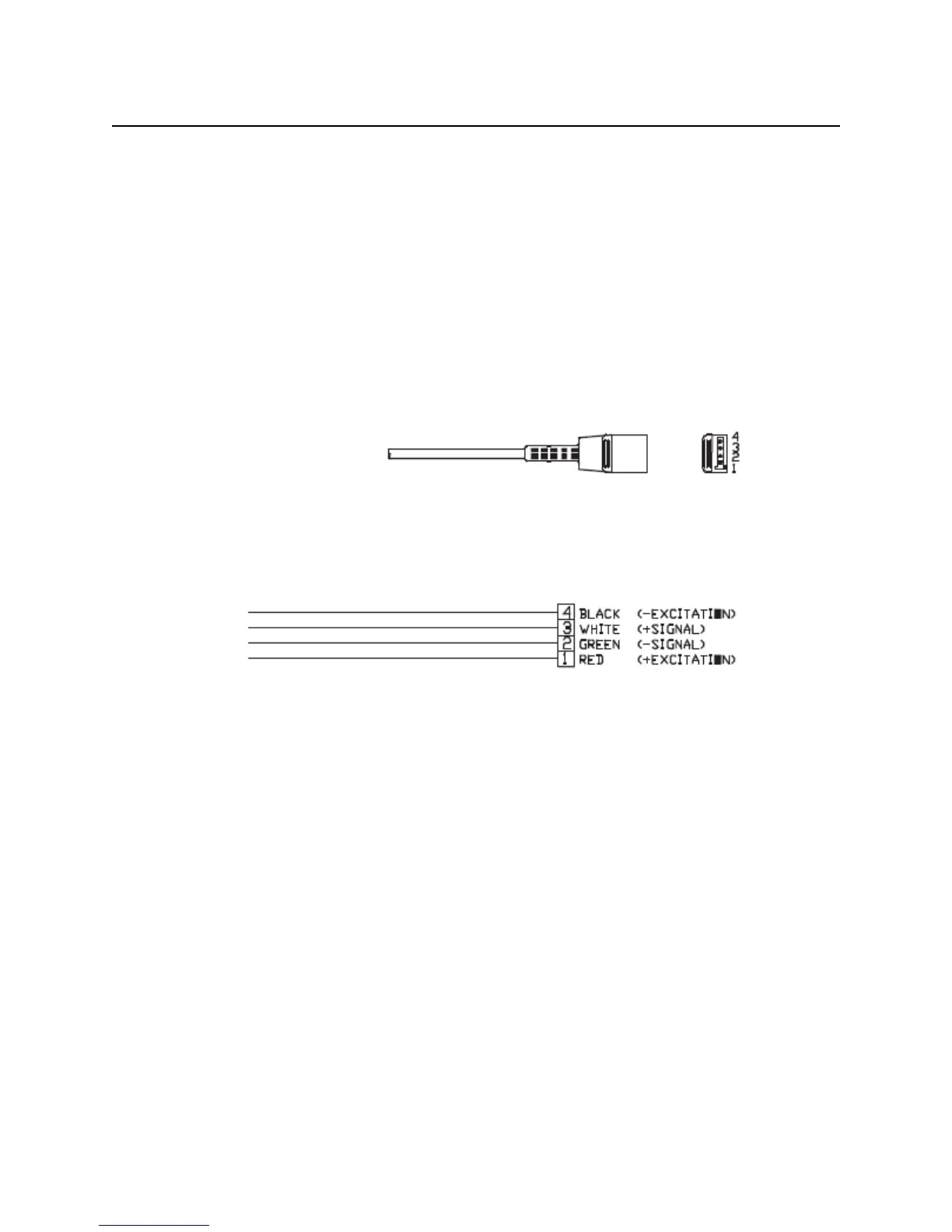

Wiring:
DB15 Pins: 2: WHITE 7: GREEN 9: RED 12: BLACK and SHEILD (Silver)
