4. Analog Input Function in PressureMAT-PLUS (2P, 3A & 2A only)
4.1. Display
The home screen displays the scaled analog input value as shown below (PMAT2P shown and bar
units shown).
1 Pressure X.XX bar
2 Pressure X.XX bar
3 PV X.XX YYY
4 PV Rate X.XX mL/m
4.2. Back Panel

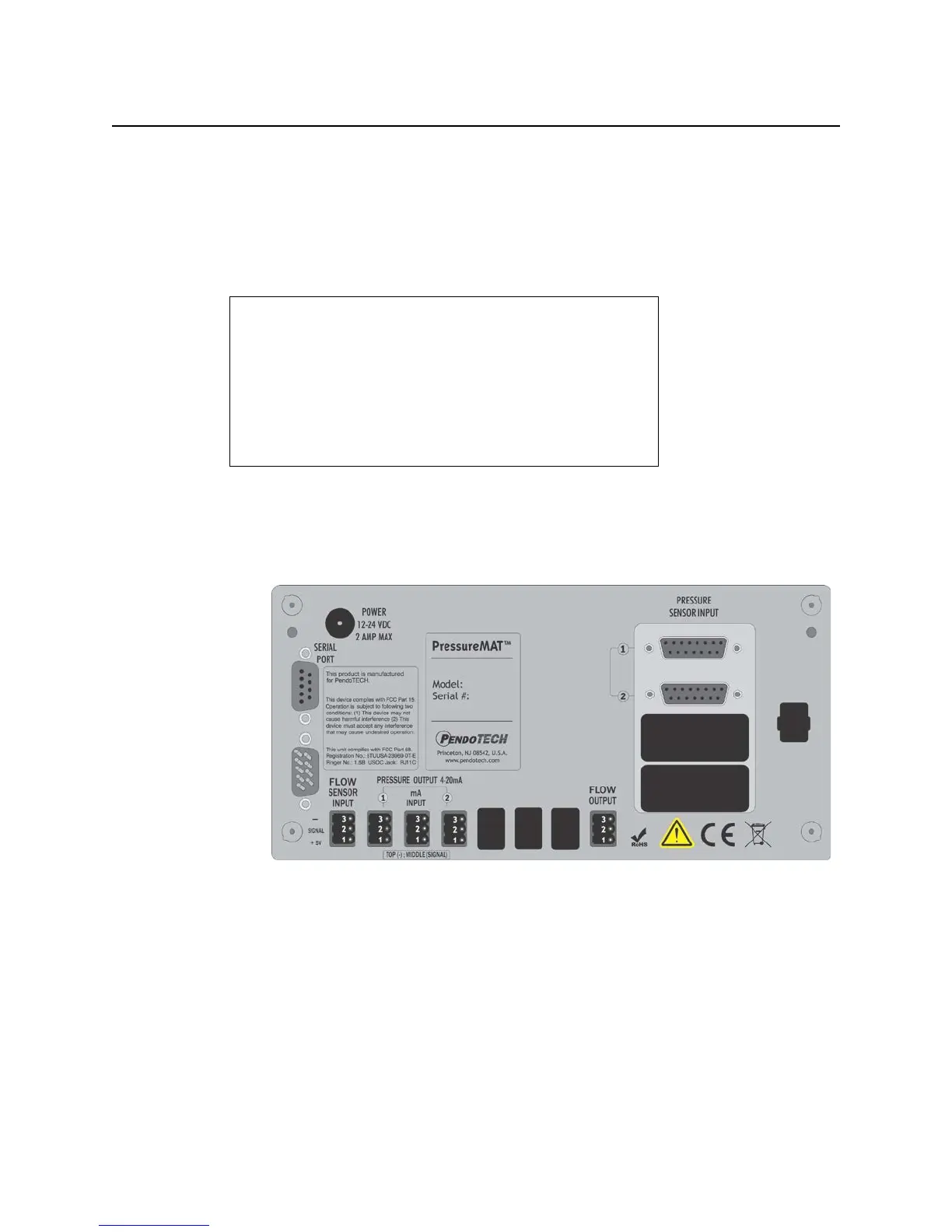

The back panel of the unit is as shown below:
PMAT2P:
