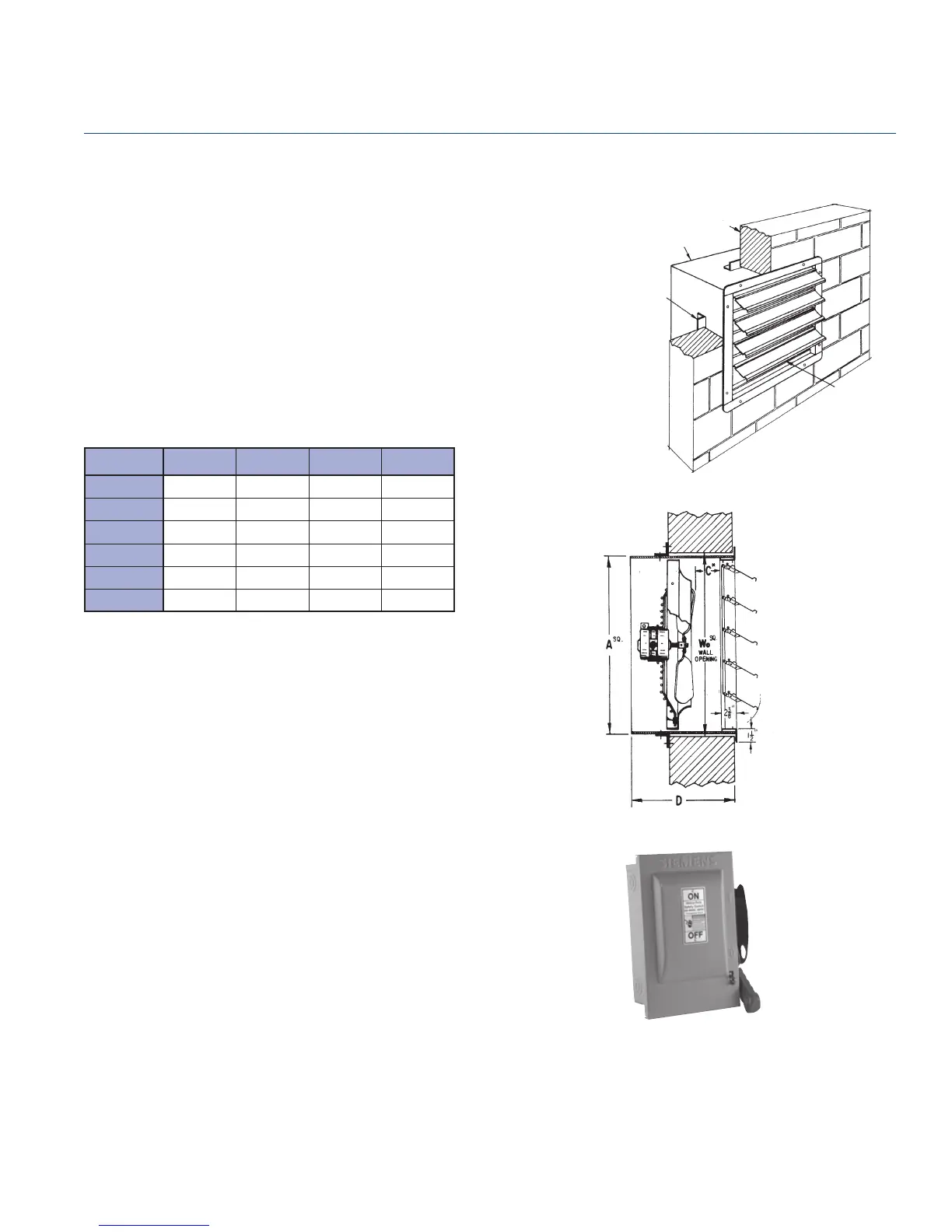

Breezeway P Series Slip-In Fan Pak
Provides a ventilation package in one convenient and compact
assembly. The Fan Pak incorporates the Breezeway Type P
direct drive fans with their integral back guards installed in a
galvanized steel sleeve with a self-acting shutter on the exterior
face. (A motorized shutter can be substituted for the standard
shutter when desired.)
A moveable angle frame is positioned on the perimeter of
the sleeve. This adjusts to the wall thickness. When properly
fastened it secures the assembly in the wall opening. Anchor
bolts, lag screws or other appropriate fasteners should be
used to fasten the unit to the inside and outside face of the
wall or mounting frame.
Paint and Coatings
In most cases, the standard epoxy fi nish is suffi cient to provide
years of attractive life to your propeller fan. For those cases
where corrosive fumes are encountered or where special
protective fi nishes are otherwise needed, the Breezeway can
be provided with special coatings. Accessories for BHM/BHH
will be provided assembled, not knocked down, if painting is
specifi ed.
Disconnect Switches
Safety disconnect switches are required under the National
Electric Code whenever an electric power source is controlled
from a switch or panel that is out of sight of the operated
equipment. Factory wiring is not available for explosion proof
motors.
Wall
Wall Shutter
(Self Acting)
Galv. Steel Sleeve with Type P Direct
Drive Fan and Integral Rear Guard
Movable Permeter Angle Frame
(Adjusts to Wall Thickness)
MODEL Wo
SQ.
A
SQ.
C
MIN.
D
P10 15 3/4 15 1/4 4 18 3/4
P12 17 3/4 17 1/4 4 14 3/4
P16 23 1/2 23 4 22 3/4
P18 25 24 1/2 4 23
P20 27 1/2 27 5 24 3/4
P24 33 1/4 32 1/2 5 24 3/4
