CONNECTING TO THE APPLIANCE

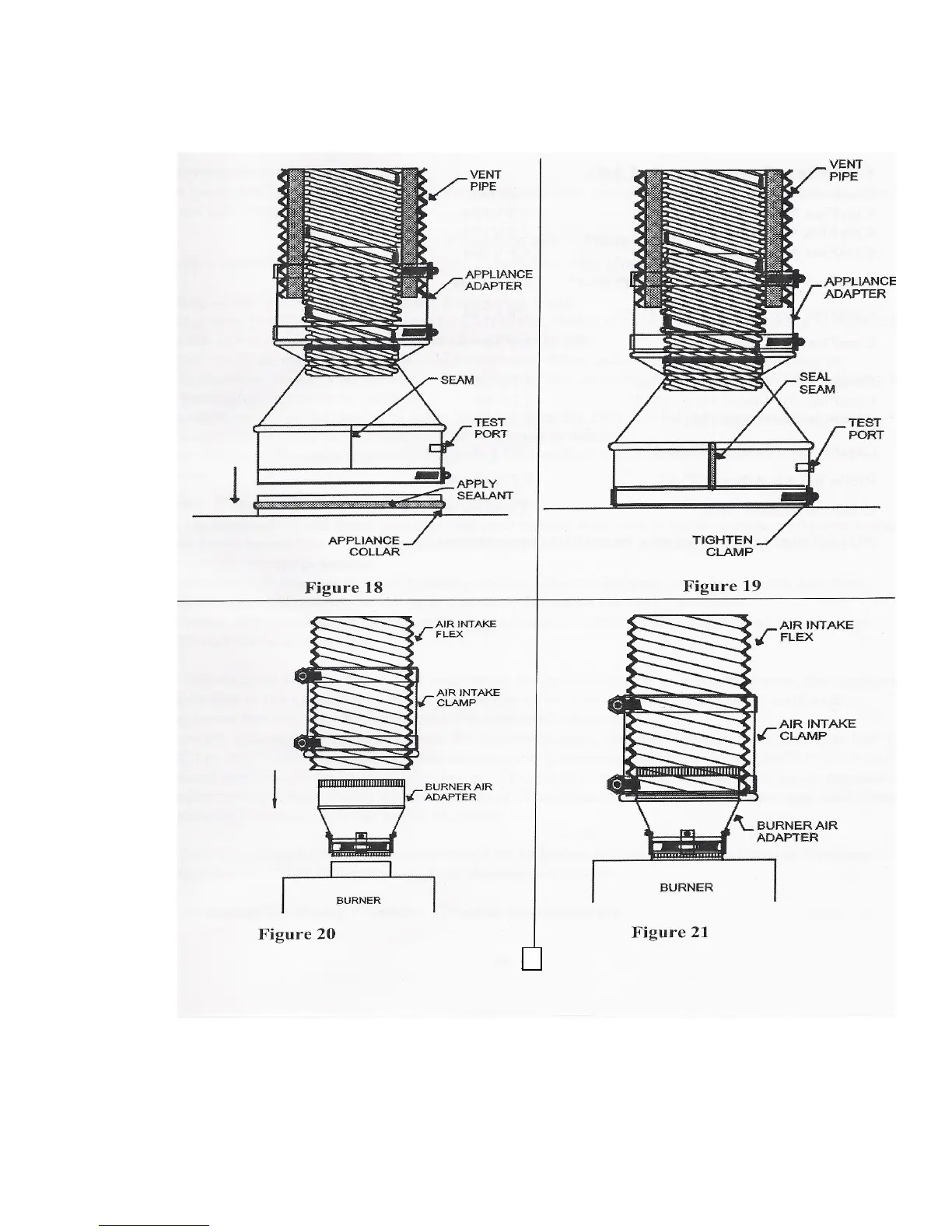

The following series of figures, 18, 19, 20, & 21 provide a pictorial view of the appliance
connection. Follow the steps below to accomplish this task.
- Connect the appliance adapter to the vent pipe as shown in the joint assembly section.
- Apply sealant around the appliance flue collar.
- Slide the appliance adapter over the appliance flue collar.
- Tighten the gear clamp of the appliance adapter around the flue collar.
- Seal the adapter seam with sealant.
