MAINTENANCE
WARNING Pressurized fluid can be extremely dangerous. Always relief hydraulic
pressure before preforming maintenance.
Always ensure that the machine has been properly greased

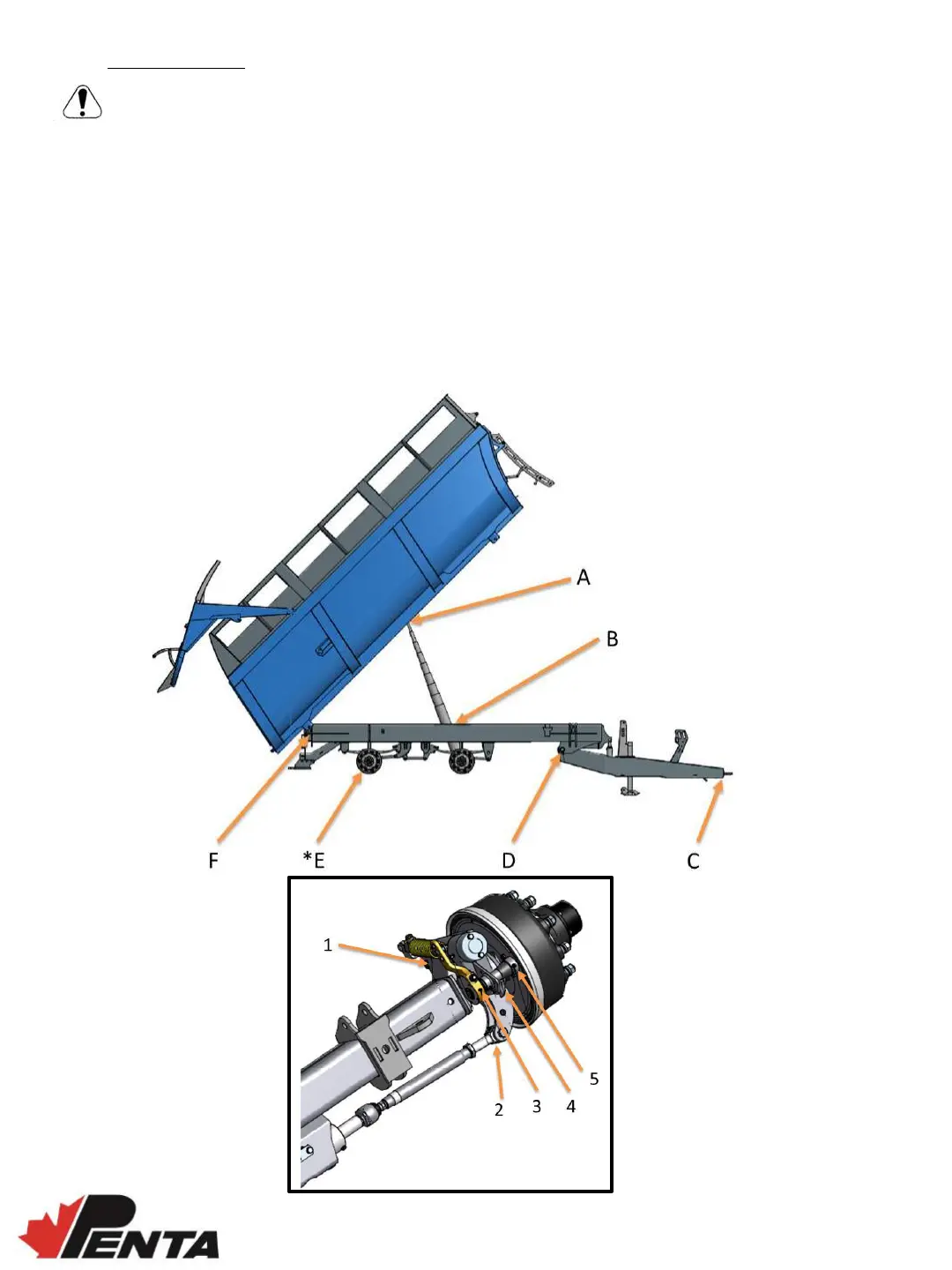

Grease Points: A - Cylinder Ball Joint (1x)
B - Cradle Bushings (Right & Left Side 2x)
C - Front Hitch (1X)
D - Tongue Pivot Point (Right & Left Side 2x)
E - Straight Axle (Right and Left Side 4x)
* - Steering Axle (Right & Left Side 10x) Steering Axle See Figure ___
F - Pivots
*
