PENTA DB30 - Warranty Information; Technical Data

14DBP-001 4
WARRANTY INFORMATION
PENTA warrants against defects in
construction or materials for a period of
ONE year. We reserve the right to inspect
and decide weather material or construction
was faulty or weather abuse or accident
voids our guarantee.
Warranty service must be preformed by a
dealer or service center authorized by Penta.

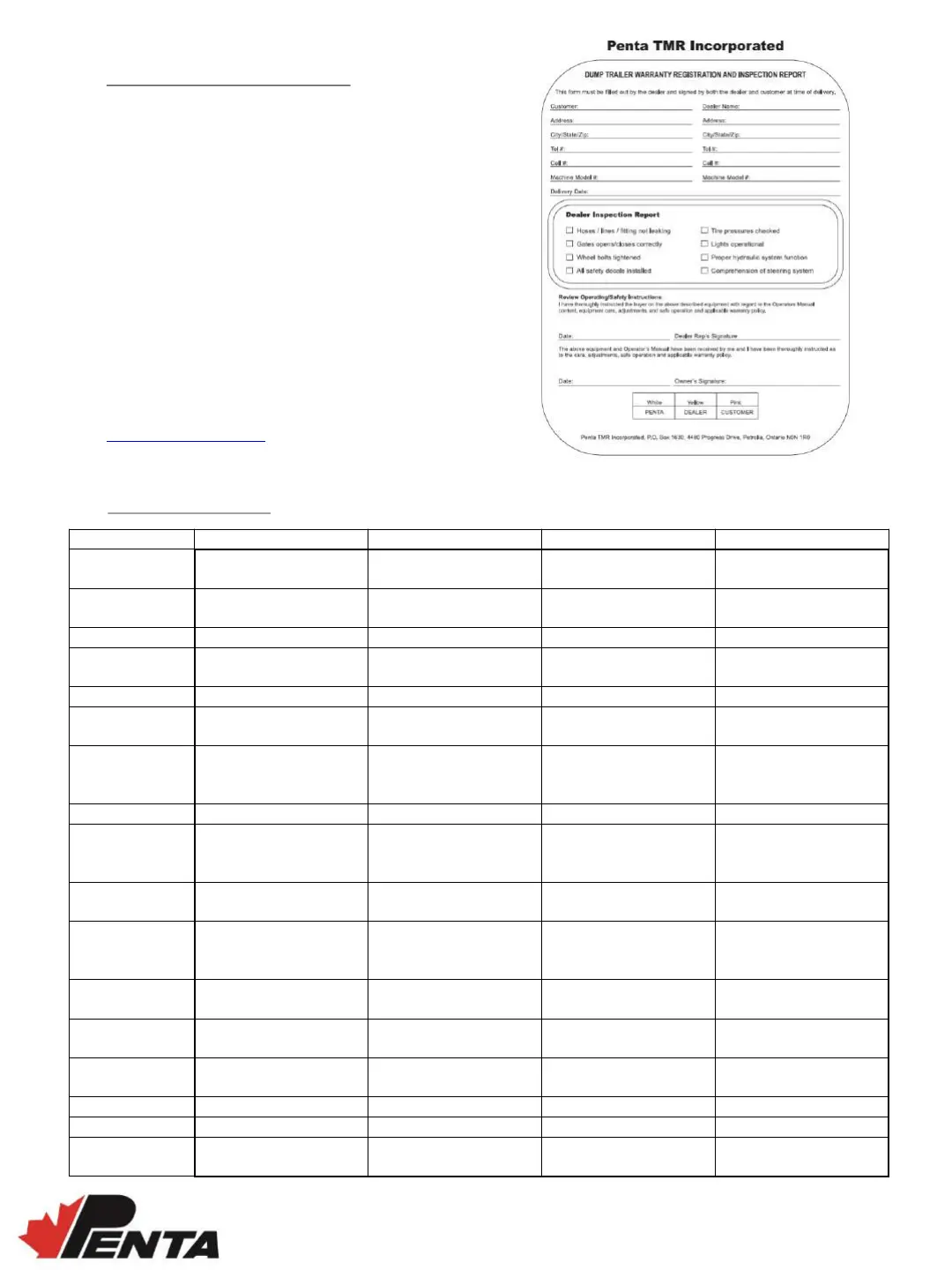

The warranty registration form (fig. 1.0)
must be filled out by the dealer and signed
by both the dealer and customer at time of
delivery. Reference PENTA’s warranty
Guidelines & Stipulations on our website
www.pentatmr.com or
Email: warranty@pentatmr.com
Fig. 1.0
TECHNICAL DATA
DB30 DB40 DB50 DB70
Axles Tandem Tandem
Tri-
Axle
Tandem Axle (Optional)
Quad-Axle -
Standard
Tri-Axle - Optional
Steering Axles N/A N/A
2 Steering , 1 Fixed (Tri-
Axle)
2 Steering, 2 fixed (Quad-
Axle)
Extension Height
32 inch (81.3cm) 32 inch (81.3cm) 32 inch (81.3cm) 32 inch (81.3cm)
Front Tilt
Extension
Hydraulic Hydraulic Hydraulic Hydraulic
Tailgate Hydraulic Hydraulic Hydraulic Hydraulic
Tailgate Chute
Manual
Hydraulic (optional)
Manual
Hydraulic (optional)
Manual
Hydraulic (optional)
Manual
Hydraulic (optional)
Tires
BKT FL630 800/45R26.5
Michelin 800/45R26.5
(optional)
BKT FL630 800/45R26.5
Michelin 800/45R26.5
(optional)
BKT FL630 800/45R26.5
Michelin 800/45R26.5
(optional)
BKT FL630 800/45R26.5
Michelin 800/45R26.5
(optional)
Total Length 292 inch (742 cm) 336 inch (853 cm) 405 inch (1029 cm) 468 inch (1189 cm)
Total Height
(With Tires and 32
inch extension)
148 inch (376 cm) 148 inch (376 cm) 149 inch (376 cm) 150 inch (376 cm)
Outside Width
(With Tires)
126 inch (322.5 cm) 127 inch (322.5 cm) 128 inch (322.5 cm) 129 inch (322.5 cm)
Interior
Dimensions
(LxWxH)
17 ft x 10.5 ft x 7.3 ft
(5.18 m x 3.20 m x 2.23 m)
21 ft x 10.5 ft x 7.3 ft
(6.40 m x 3.20 m x 2.23 m)
26.6 ft x 10.5 ft x 7.3 ft
(8.11 m x 3.20m x 2.23m)
32.5 ft x 11.4 ft x 7.3 ft
(9.91 m x 3.47 m x 2.23m)
Tandem Axle
Weight Capacity
40,000 lbs ( 18,140kg) 40,000 lbs ( 18,140 kg) 40,000 lbs ( 18,140 kg) N/A
Tri-
Axle Weight
Capacity
N/A N/A *60,000 lbs (27,200 kg) 60,000 lbs (27,200 kg)
Quad
-
Axle Weight
Capacity
N/A N/A N/A 80,000 lbs (36,285 kg)
Volume 1050 cu.ft (30m³) 1400 cu.ft (40m³) 1850 cu.ft (52m³) 2475 cu.ft (70m³)
Hoist Oil Volume
5.55 US Gal (21 litres) 8.5 US Gal (32 litres) 12.698 US Gal (48 litres)
**26.4 US GAL (100 litres)
Recommended
Tractor H.P.
140 160 190 240
* Based on Hoist Cylinder Rating
** DB70 is equipped
with Oil reservoir and Pump
