21
2
2A

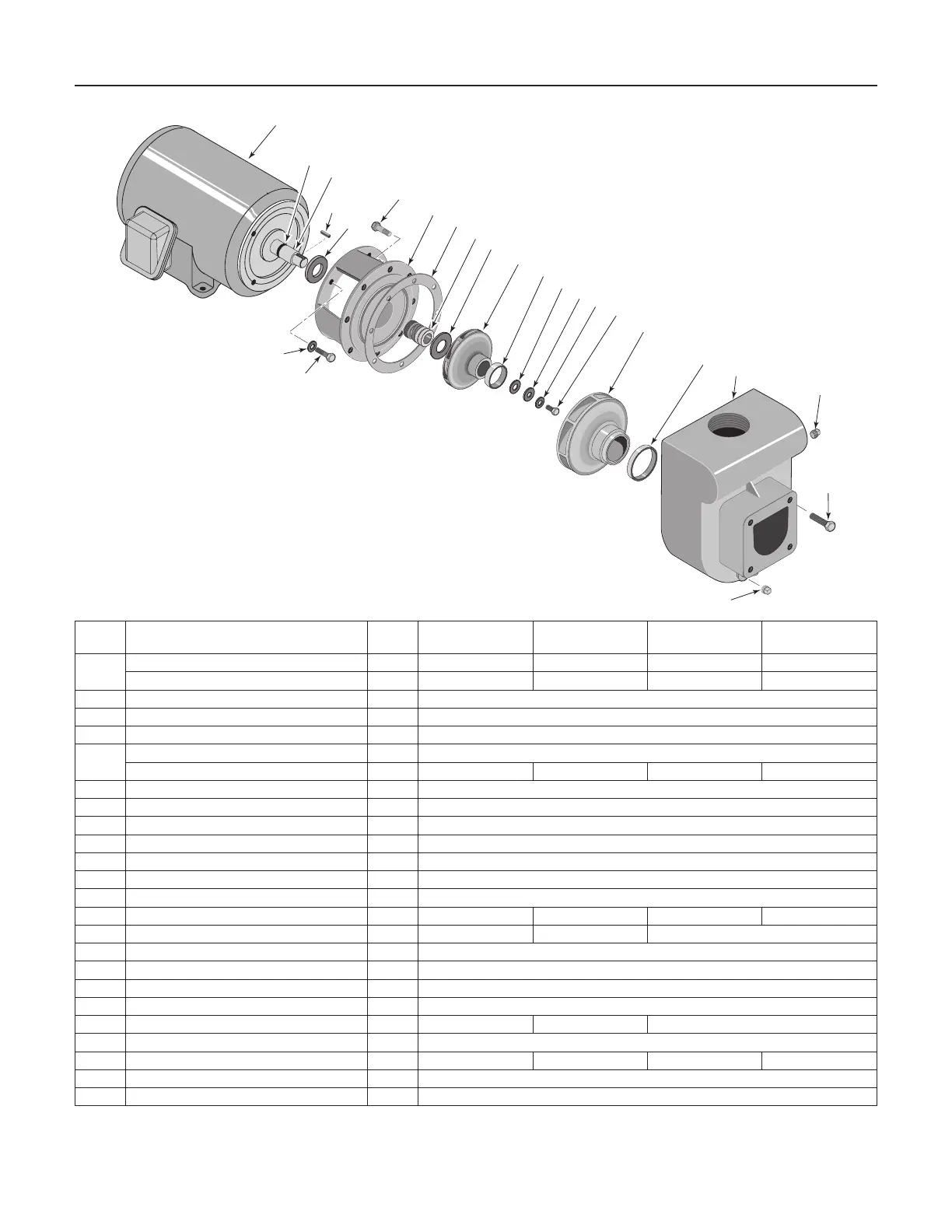

Ref. Description Qty.
3 HP, LTM-3
S40099 S40100
5 HP, LTM-5
S40102 S40103
3 HP, LTH-3
S40093 S40094
5 HP, LTH-5
S40097 S40096
1
Motor - 60 Cycle - 230V, Single Phase 1 C218-177 C218-180 C218-177 C218-180
Motor - 60 Cycle - 230/460V, Three Phase 1 C218-179BD C218-182BD C218-179BD C218-182BD
2 O-Ring 1 U9-265
2A Sleeve 1 C23-58
3 Key - Square 1 U65-42A
4
Water Slinger - Single Phase 1 C69-15
Water Slinger - 230/460V, Three Phase 1 C69-16 C69-15 C69-16 C69-15
5 Capscrew - 3/8 - 16 x 7/8” Lg. 8 *
6 Adapter 1 C2-66
7 Gasket - Adapter 1 C20-46
8 Lockwasher - 3/8” 4 *
9 Capscrew - 3/8 - 16 x 1” Lg. 4 *
10 Shaft Seal 1 U9-433SS
11 Gasket - Seal 1 C20-101
12 Impeller 1 C5-246 C5-247 C5-248 C5-249
13 Wear Ring 1 J23-5 C23-14 J23-5
14 Gasket 1 C20-100
15 Washer - Impeller 1 C43-45SS
16 Gasket 1 C43-46
17 Screw - Impeller - 3/8 - 16 x 3/4” Lg. 1 U30-72SS
18 Volute Diffuser (w/Wear Ring, Ref. No. 13) 1 C101-126 C101-126B C101-132
19 Diffuser Ring 1 C21-2
20 Pump Body 1 C76-12 C76-12C C76-12B C76-12
21 Pipe Plug - 1/4” NPT 2 *
22 Capscrew - 5/16 - 18 x 3/4” Lg. 4 *
* Purchase locally.
Repair Parts 9
