Universal Booster Pump Installation and User’s Guide
Installation with Solar Heaters
With or without a gas heater, install an in-line tee on the
return line between filter and solar heater.
This minimizes the possibility of an air lock in the booster
pump each time the solar panel fills and assures ample
water supply.
Installation with a Heater
To install the booster pump in a system with a heater, install a tee
after the filter. The tee directs a portion of the water to the booster
pump and to the heater.
Do not connect the booster pump directly to the heater; the
heated water can damage the booster pump if the heater malfunc-
tions.
Be sure to install the booster pump at least 3 feet away from the
heater to protect from excess ambient heat.
Installation with a Solar Heater

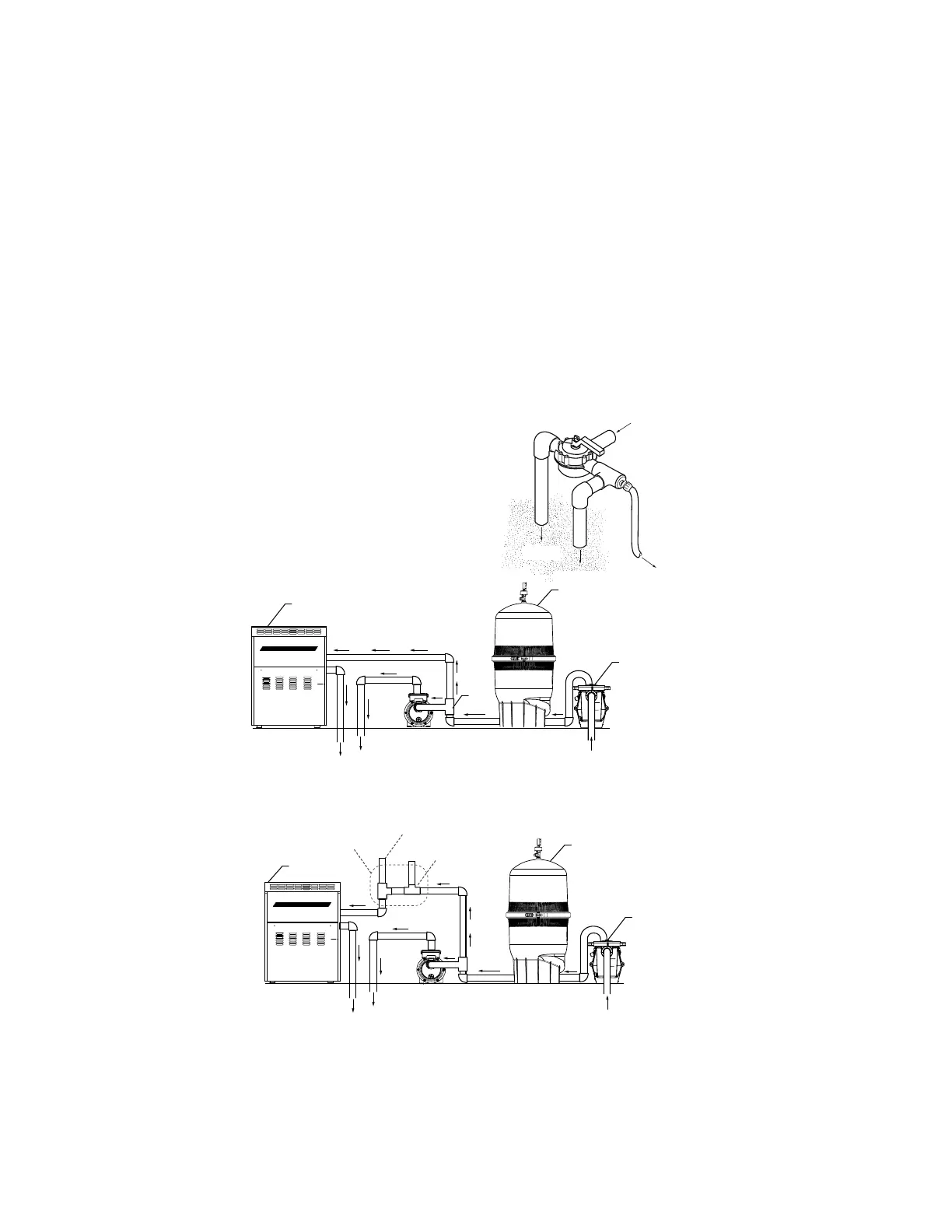

Installation with Pool and Spa Combination
If your pool is plumbed for a pool and spa combination, connect
the suction side of the booster pump before the spa bypass valve.
Be sure to install the booster pump at least 3 feet away from the
heater to protect from excess ambient heat. See image below
for plumbing configuration.
From Filter
To Booster
Pump
Pool Return
To Spa
Ground
Level
Filter
Booster Pump
Filter
Pump
To Pool Return
To Pool
From Pool
From Solar Panel
(Solar only)
To Solar Panel
(Solar only)
Optional
Solar Heater
Installation
Pool Heater
Installation with a Heater
Filter
Booster Pump
Filter
Pump
Pool Heater
To Pool Return
To Pool
From Pool
Tee
