Pentair DELTA ENVIRONMENTAL D1C20-21 Series User Manual

7

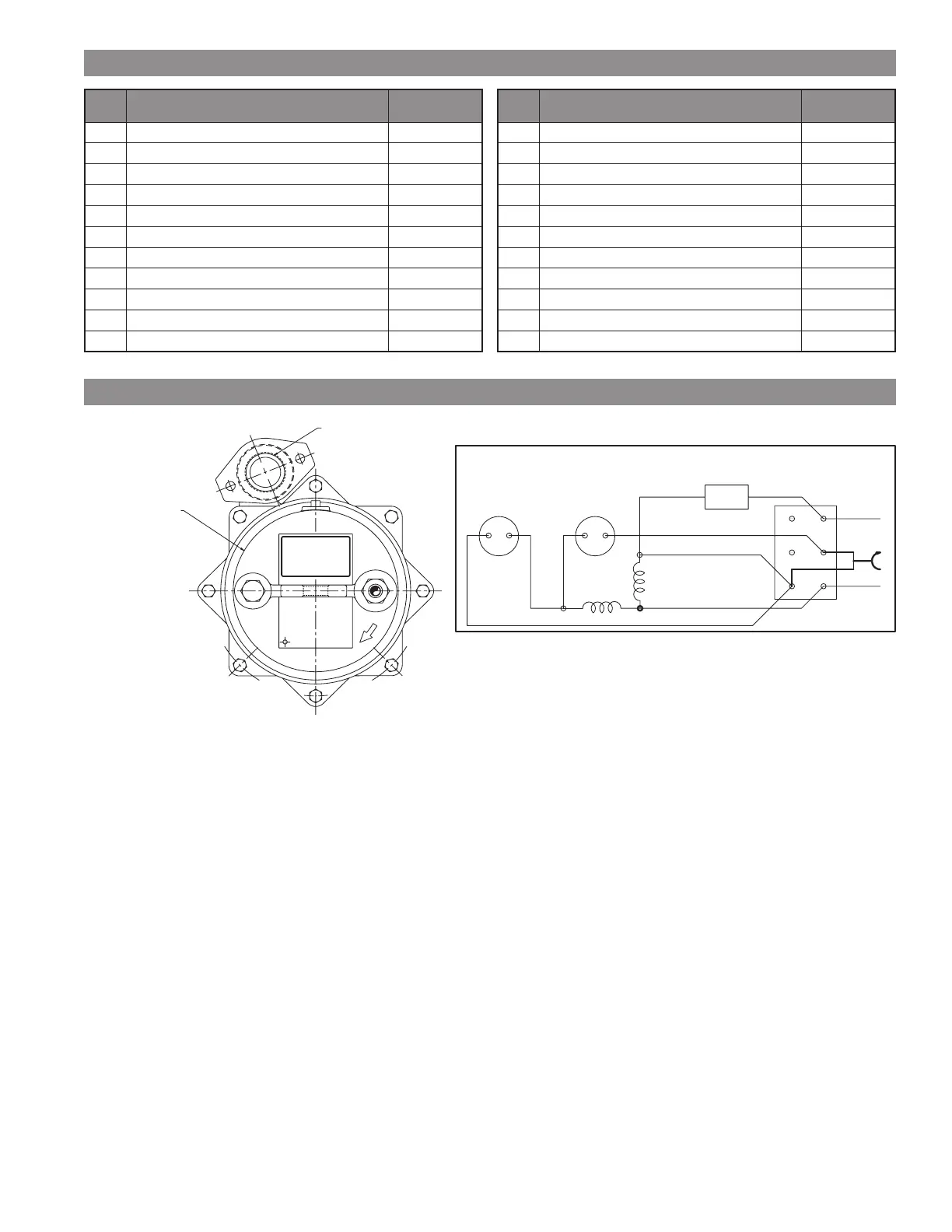

PARTS LIST FOR D1C-20-21
Ref
No.
Description Part
Number
9A Gasket, Tetraseal 7" x 6-3/4" x 1/8" 05014A181
10 Housing, Motor 25327D000
11 Screw, Cap, 5/16" x 1-1/4" Long (8 req’d) 19100A012
12 Seal, 7/8" Shaft 21576A010
13 Motor, 2 HP, 230V, 1 ph 27739D000
14 Plug, Pipe 1/4 NPT 05022A092
15 Washer, SST, 3/32" Thick 05030A235
15A Gasket, Rubber 05014A193
15B Washer, SST, 1/32" Thick 05030A234
15C Nut, Solid 25341A002
16 Cord, Power 25338B001
Ref
No.
Description Part
Number
1 Case, Volute 26433D802
2 Flange, w/Shredding Ring 21584B000
3 Screw, cap 1/4" x 1" Long., SST (3 req’d) 19099A012
4 Retainer, Impeller, SST 21583A000
5 Screw, Flat Head, 1/4" x 3/4" Long 07597A018
5A Sealant, Loctite Grade 271 14550A001
6 Impeller, Grinding 21582B000
7 Screw, Set 1/4" x 3/8" Long (2 req’d) 05013A039
8 Impeller, Pump Plastic 26434C010
8 Impeller, Cast Iron (Optional) 26434C000
9 Plate, Seal/Bearing 26430D001
D1C-20-21 DIMENSIONAL DRAWINGS
1¼" NPT Discharge
Top View
Motor Housing must be
positioned as shown
RUN
CAPACITOR
START
CAPACITOR
20 µF
370 V
324 µF - 389 µF
125 V
BROWN
BLACK
PHASE
MAIN
ORANGE
YELLOW
BLUE
RED
LINE
LINE
WHITE
PROTECTOR
SENSATA TECHNOLOGIES TYPE 15HM2412
WIRING SCHEMATIC
2
3
5
1
4
6
