Pentair EasyTouch User Manual

5
Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Legacy Upgrade Kits Installation Instructions
Removing the Existing Outdoor Control Panel (Continued)
5. Disconnect the transformer connector from the existing Outdoor Control Panel circuit board.
6. Disconnect all other connections from the existing Outdoor Control Panel circuit board.

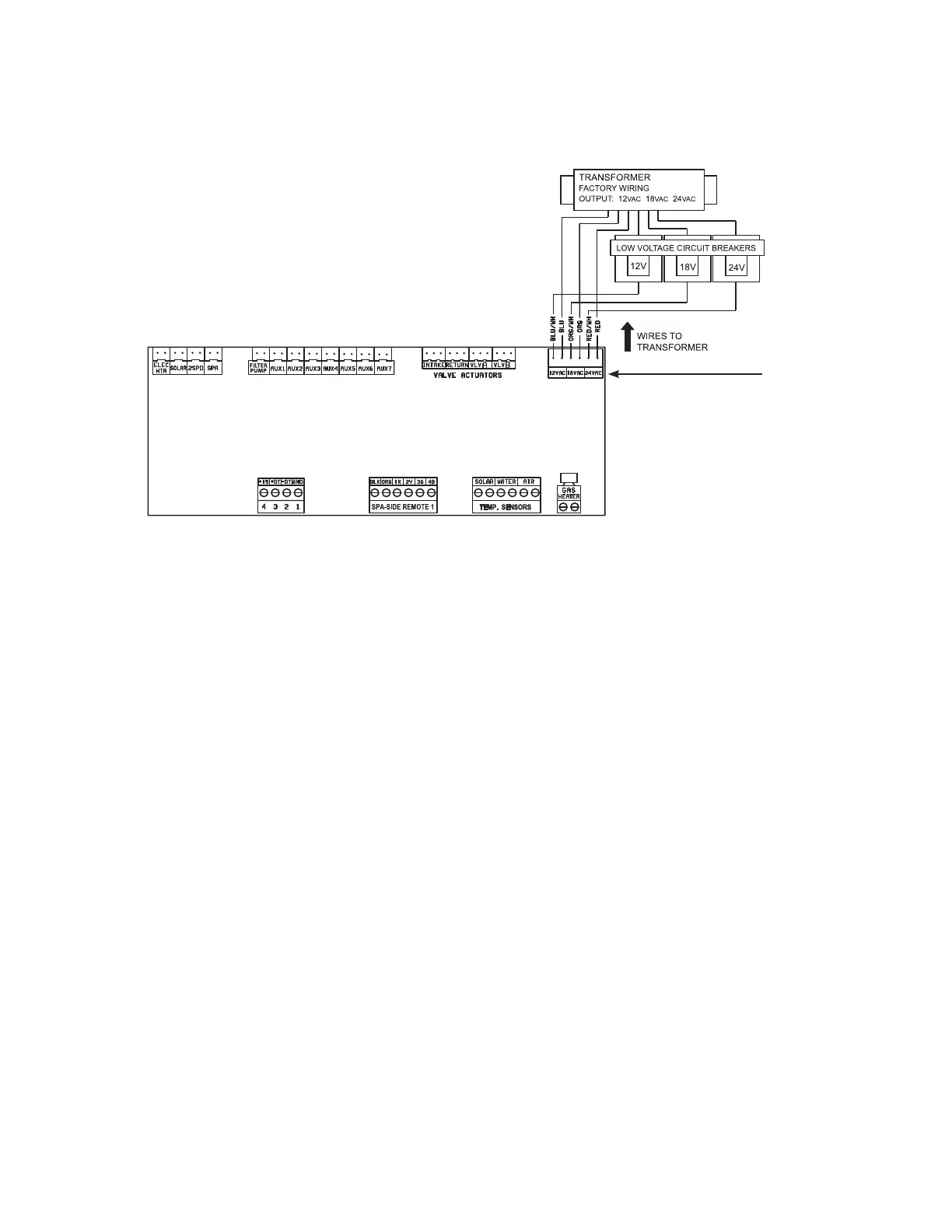

Figure 3. Transformer Connector
7. Remove the two screws securing the outdoor control panel bezel. Remove the outdoor control panel
and bezel from the enclosure. See Figure 2 on page 4.
Transformer
Connector

Pentair EasyTouch Specifications

General

Lighting Control	Yes
Heater Control	Yes
Valve Control	Yes
Type	Pool and Spa Control System
Enclosure	Weatherproof
Water Features	Yes
Enclosure Rating	NEMA 3R
Control Type	Automated
Pump Control	Yes
Scheduling	Yes
Number of Circuits	4 or 8
Power Supply	120/240V
