Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Legacy Upgrade Kits Installation Instructions
The following upgrade installation instructions are for EasyTouch
®
PL4/PSL4, EasyTouch or
IntelliTouch Control Systems using the 2003-2012 (horizontal low voltage circuit breakers
configuration on bezel) Load Center or Power Center.
1. TURN OFF POWER TO ALL POOL AND SPA EQUIPMENT BEFORE STARTING.
CAUTION! DO NOT PLUG IN OR UNPLUG ANY SYSTEM COMPONENTS WITH THE
POWER ON. THIS MAY DAMAGE THE SYSTEM COMPONENTS.
2. Unlatch the front door latch. Open the door of the Load Center or Power Center.
3. Remove the two screws securing the High Voltage Cover Panel. Remove the panel and set
aside.
4. Loosen the two retaining screws securing the existing control panel. Fold down the panel to
access the circuit board low voltage connections and transformer connector.
Continue to next page

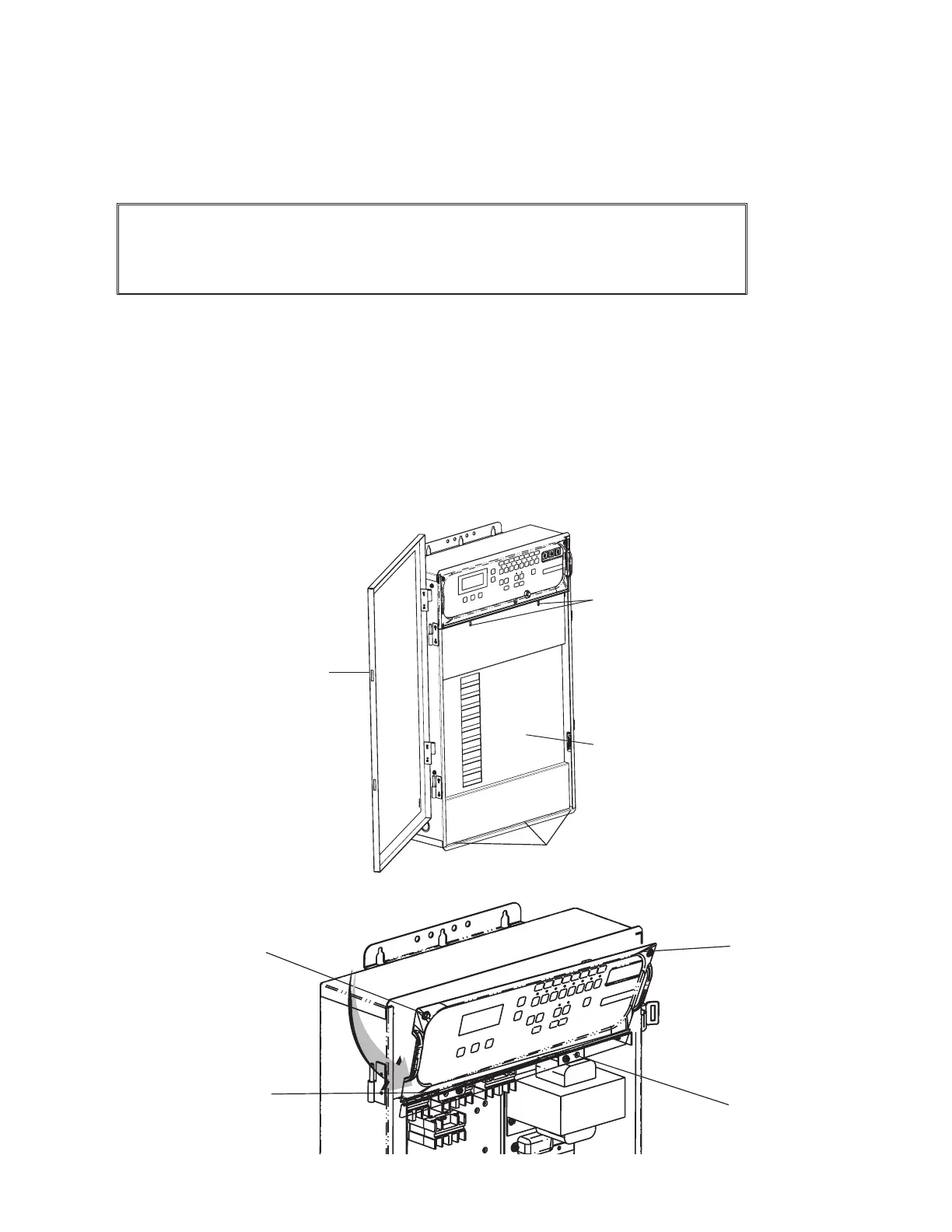

Figure 2. Load Center or Power Center (2003-2012)
Retaining screw
Retaining screw
Bezel screw
Bezel screw
High Voltage
Cover Panel
Retaining screws
(for High Voltage
Cover Panel)
Front
door
Three Tabs/Slots
WARNING!
RISK OF ELECTRICAL SHOCK. BEFORE REMOVING THE HIGH VOLTAGE
COVER PANEL FROM THE ENCLOSURE SWITCH OFF THE
MAIN POWER AT THE HOME AT THE MAIN CIRCUIT BREAKER BOX.
Removing the Existing Outdoor Control Panel

Pentair EasyTouch Specifications

General

Lighting Control	Yes
Heater Control	Yes
Valve Control	Yes
Type	Pool and Spa Control System
Enclosure	Weatherproof
Water Features	Yes
Enclosure Rating	NEMA 3R
Control Type	Automated
Pump Control	Yes
Scheduling	Yes
Number of Circuits	4 or 8
Power Supply	120/240V
