3
Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Legacy Upgrade Kits Installation Instructions



Legacy Kit P/N 522045, 522046, 523218, 523530
Wireless Antenna Kit P/N 544425
(Not included with 523530 Expansion Kit)
(P/N 523143)
Transformer Bracket Assembly
P/N 520222
Six (6) Screws


PCBA
(i10P / i10PS / i10D / i10X)
Outdoor Control Panel
(i5P, i5X)

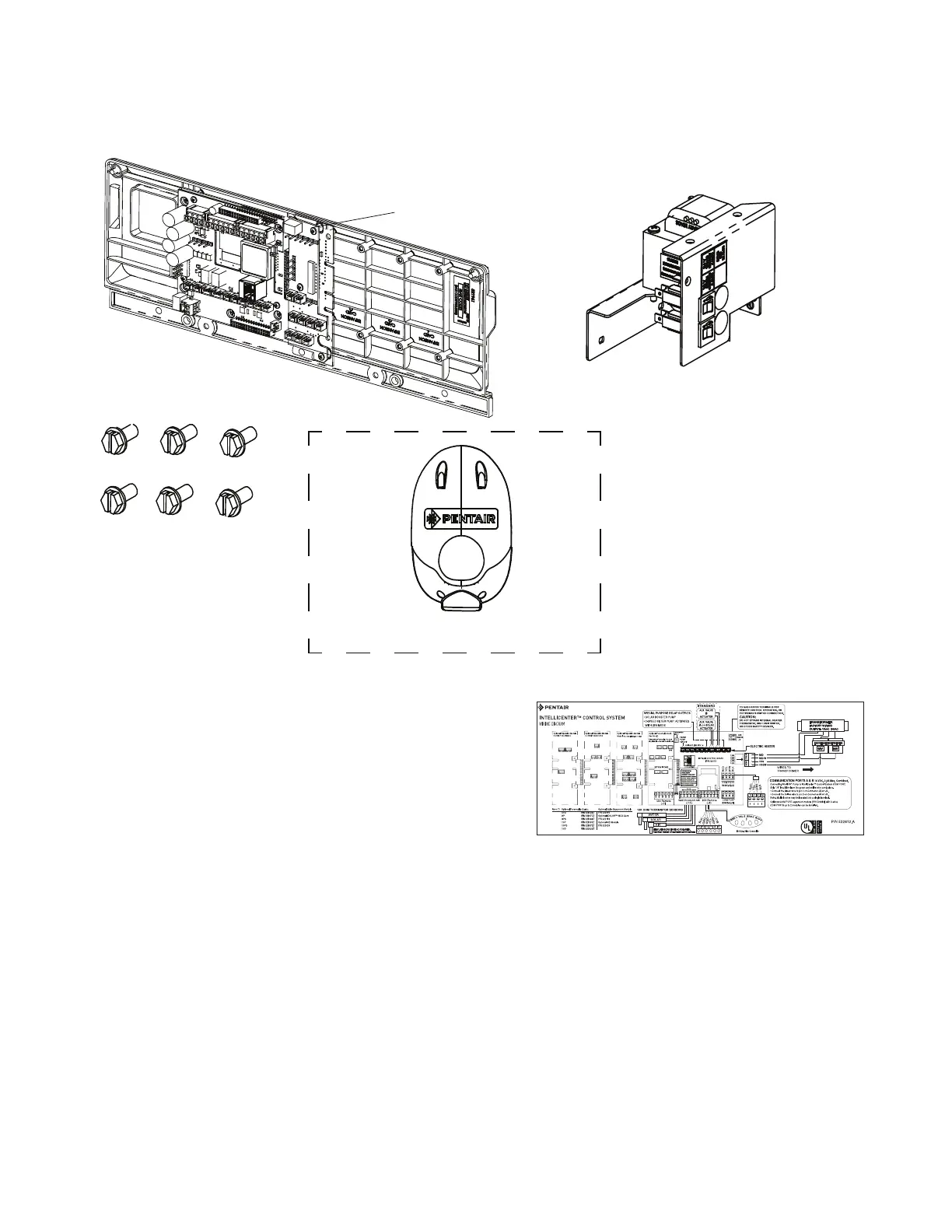

BOX CONTENTS
Figure 1. IntelliCenter Control System Legacy Upgrade Kit Contents
1. Kit P/N 522045, 522046, 523218:
P/N 521938, i5P Outdoor Control Panel.
Kit P/N 523530: P/N 522029, i5X Outdoor Control Panel.
2. Kit P/N 522045: P/N 521993Z, i10P
Personality Board, Shared Equipment.
Kit P/N 522046: P/N 521873Z, i10PS Personality Board,
Shared Equipment.
Kit P/N 523218: P/N 523029Z, i10D Personality
Board, Shared Equipment.
Kit P/N 523530: P/N 522997Z, i10X Expansion Board,
Shared Equipment.
3. P/N 523143, Transformer Bracket Assembly
4. P/N 520222, Six (6) screws
5. P/N 544425, Wireless Antenna Kit
(not included with 523530 expansion kit).
6. P/N 522612, Wiring Label, IntelliCenter Control System
• IntelliCenter Control System manuals (not shown):
• Installation Guide (P/N 522989)
• User’s Guide (P/N 522990)
• Quick Reference Guide (P/N 522988)
• WiFi Remote Installation Guide (P/N 523350)
Wiring Label,
IntelliCenter Control System
6.
AUX5 AUX6
AUX7 AUX8 AUX9
*522612*
Wiring Diagram label for IntelliCenter Control System Upgrade Kit.

Pentair EasyTouch Specifications

General

Lighting Control	Yes
Heater Control	Yes
Valve Control	Yes
Type	Pool and Spa Control System
Enclosure	Weatherproof
Water Features	Yes
Enclosure Rating	NEMA 3R
Control Type	Automated
Pump Control	Yes
Scheduling	Yes
Number of Circuits	4 or 8
Power Supply	120/240V
