Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Legacy Upgrade Kits Installation Instructions
Install the new 4A and 5A Low Voltage Circuit Breakers Bracket and System
Transformer
Remove the existing circuit breakers and system transformer breaker bracket:
1. Remove the circuit breakers and bracket with transformer: Remove the two side
screws on the side of the enclosure, and the screws on the back of the enclosure
securing the circuit breaker bracket. See Figure 4. Discard the existing system
transformer.
2. Remove the bracket with the circuit breakers and transformer from the enclosure.

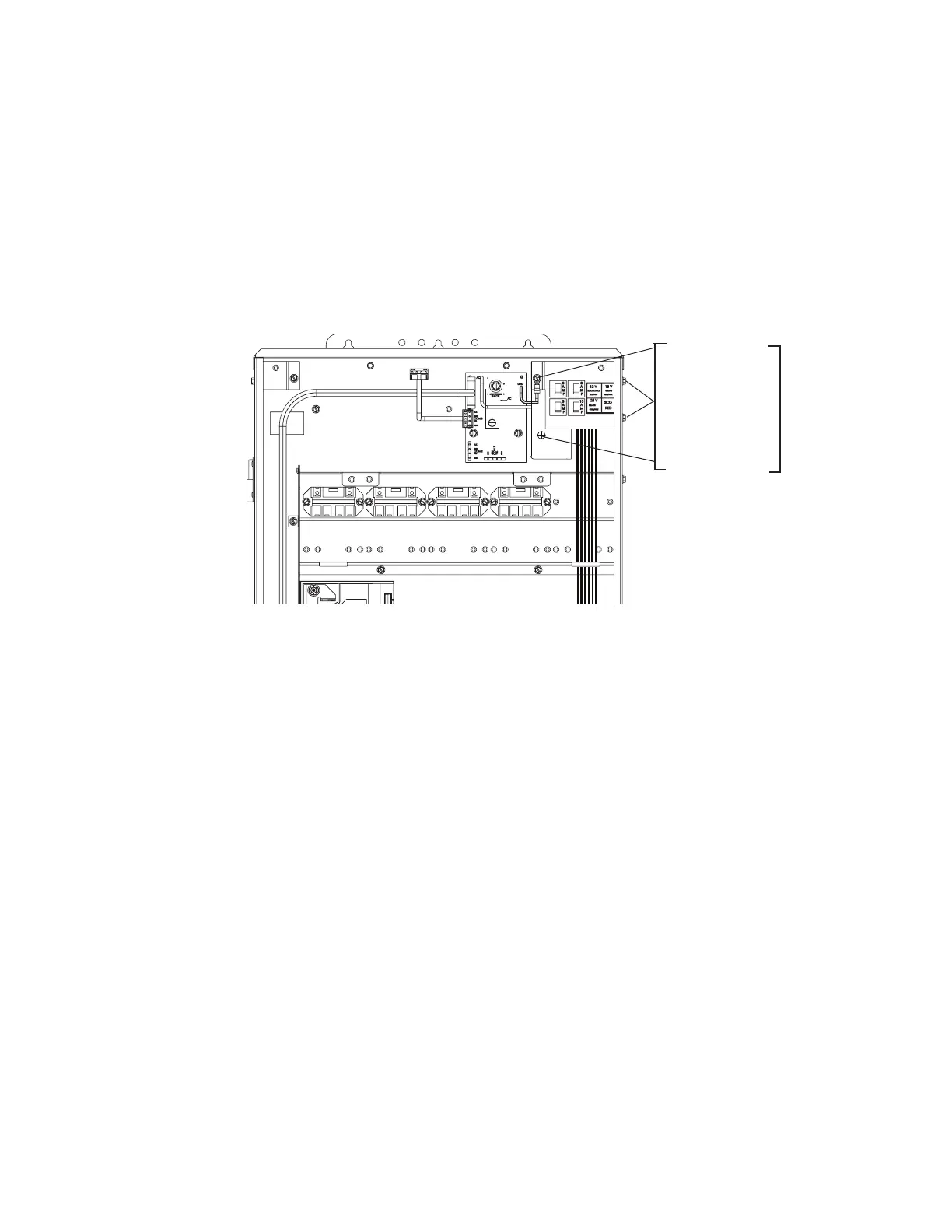

Figure 4. Circuit Breaker Bracket
Circuit
Breaker
Bracket
Screws (4)
(8-32 x 3/8”)
Install the IntelliCenter™ Control System bracket ((3), P/N 523143), with the attached 5AMP and 4
AMP circuit breakers with the system transformer.
3. Route the primary wires from the IntelliCenter Control System transformer through the
wire channel toward the main system circuit board.
4. Install the circuit breaker bracket with the circuit breakers and system transformer onto
the enclosure, and secure it with two side screws and two screws on the back of the
enclosure. See Figure 5 on page 7.
5. Wire the System Transformer to the main Load Center or Power Center circuit breaker.
See Figure 6 on page 7.

Pentair EasyTouch Specifications

General

Lighting Control	Yes
Heater Control	Yes
Valve Control	Yes
Type	Pool and Spa Control System
Enclosure	Weatherproof
Water Features	Yes
Enclosure Rating	NEMA 3R
Control Type	Automated
Pump Control	Yes
Scheduling	Yes
Number of Circuits	4 or 8
Power Supply	120/240V
