Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Legacy Upgrade Kits Installation Instructions
1. Install the IntelliCenter Outdoor Control Panel (1) and Bezel: Mount the Outdoor Control
Panel and bezel onto the enclosure. Install the two screws to secure the bezel (2) to the
enclosure.
Installing the IntelliCenter™ Control System Outdoor Control Panel

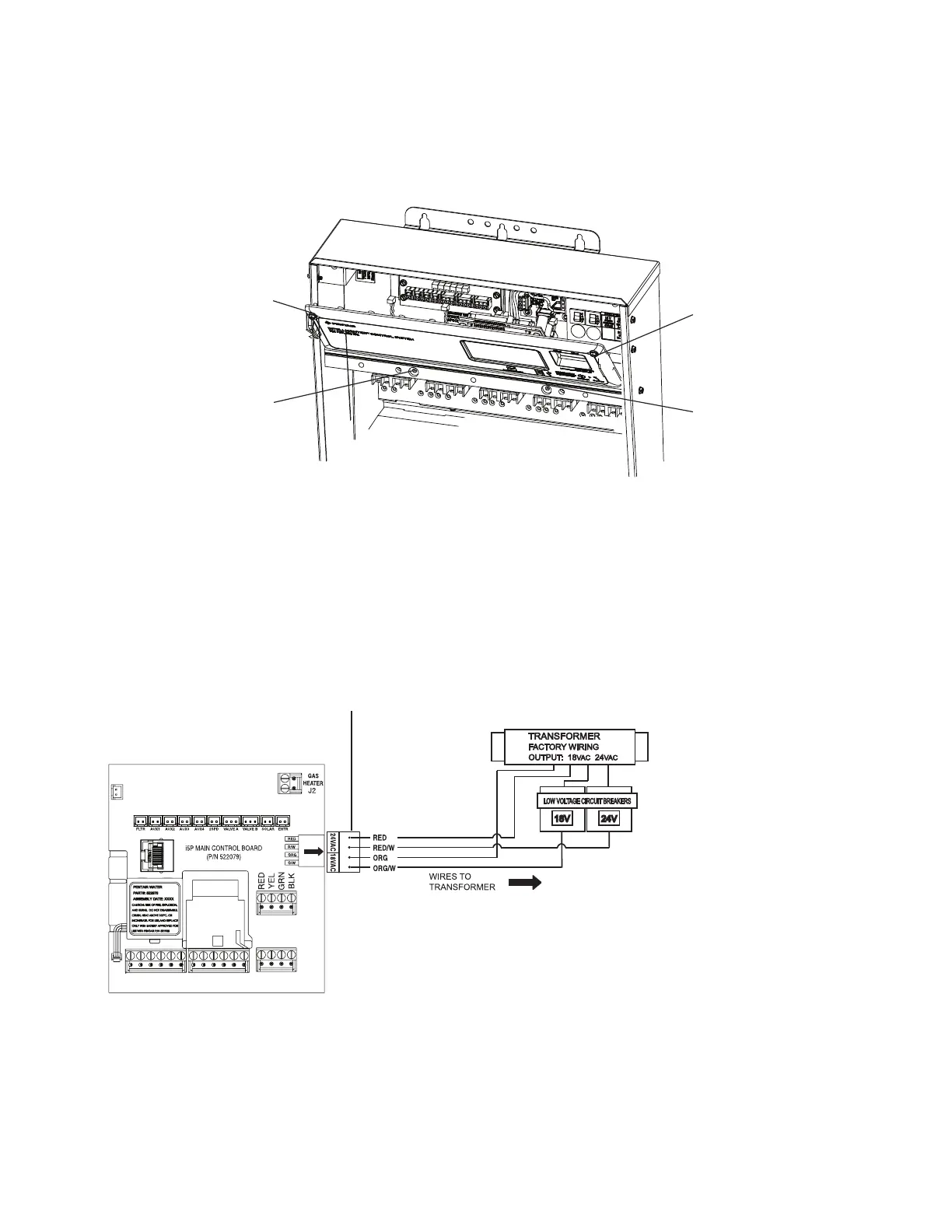

Figure 7. IntelliCenter Control System Outdoor Control Panel
Retaining screw
Retaining screw
Bezel screw
Bezel screw
2. Connect the Transformer connector to the IntelliCenter™ Control System main motherboard.
See Figure 8.
3. Reconnect all of the low voltage connections on the main circuit board. See Figure 9 on
page 9.
4. Secure the control panel bezel to the enclosure with the two retaining screws. See Figure 7.
Figure 8. Wiring the System Transformer and Circuit Breakers to Outdoor Control Panel Motherboard
See Figure 6 on page 7
for 120VAC and 240VAC
System Transformer wiring
Transformer Connector

Pentair EasyTouch Specifications

General

Lighting Control	Yes
Heater Control	Yes
Valve Control	Yes
Type	Pool and Spa Control System
Enclosure	Weatherproof
Water Features	Yes
Enclosure Rating	NEMA 3R
Control Type	Automated
Pump Control	Yes
Scheduling	Yes
Number of Circuits	4 or 8
Power Supply	120/240V
