Pentair Eclipse 58920100 User Manual

P/N • Núm/Pte. • Réf. P/N 99226000 10 Rev. H • Rev. H • Rév. H 12-9-99
SAVE THESE INSTRUCTIONS.
SECTION V. TECHNICAL DATA

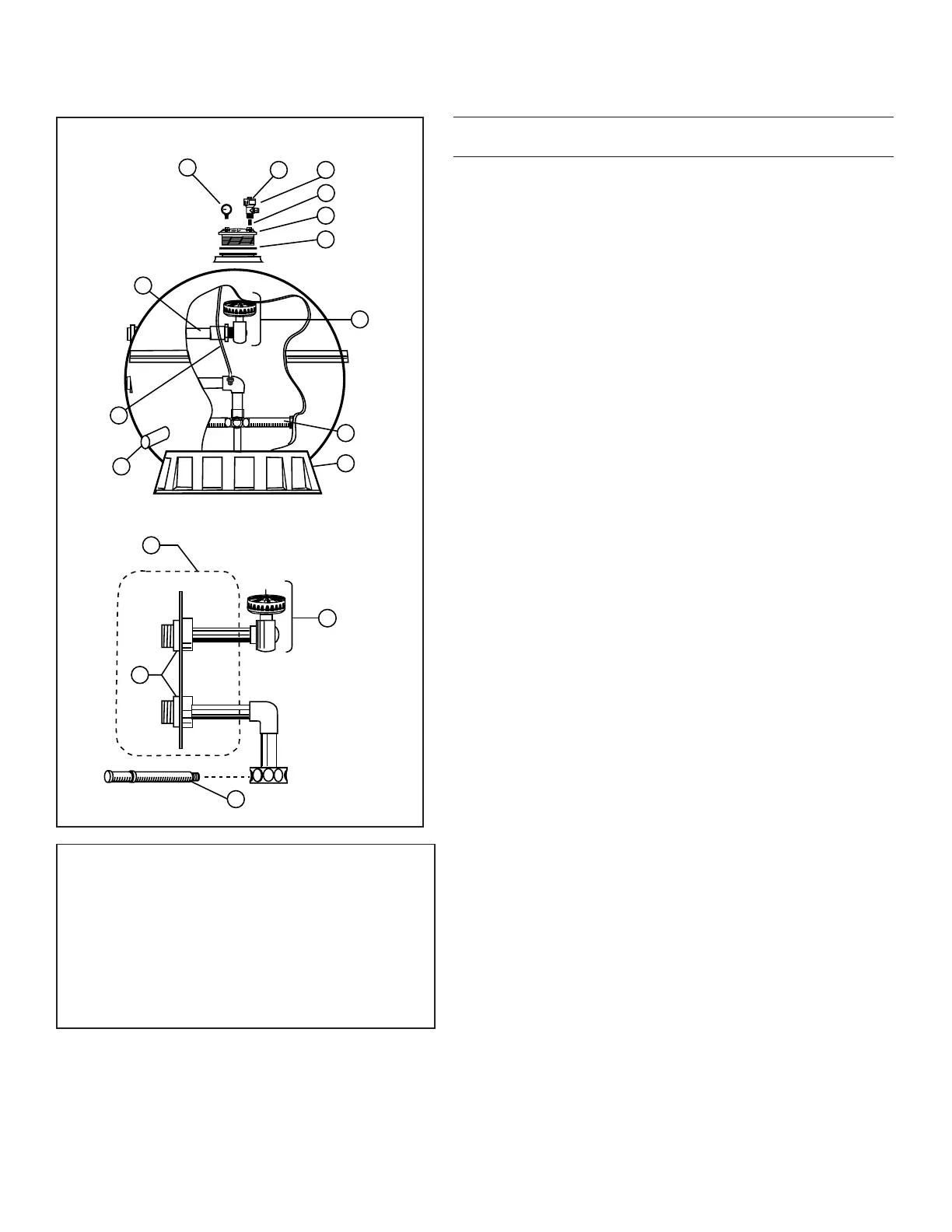

A. ECLIPSE SIDE MOUNT FILTER.
Item Part Description
No. No.
1 53003201 Gauge, pressure
2 98218900 Plug for High Flow manual air relief valve
3 98209800 High Flow manual air relief valve
4 57006800 O-ring
5 55022000 Lid
6 52000500 O-ring
7 55008300 Basket assy., overdrain 26 in. filter Í
7 150017 Diffuser assy., overdrain 26 in. filter Î
7 55008900 Basket assy., overdrain 30 in. filter Í
7 150018 Diffuser assy., overdrain 30 in. filter Î
7 55009100 Basket assy., overdrain 36 in. filter Í
7 150019 Diffuser assy., overdrain 36 in. filter Î
8 55120000 Internal drain pipe assy., 26 in. filter Í
8 150020 Internal drain pipe assy., 26 in. filter Î
8 55120100 Internal drain pipe assy., 30 in. filter Í
8 150021 Internal drain pipe assy., 30 in. filter Î
8 55120200 Internal drain pipe assy., 36 in. filter Í
8 150022 Internal drain pipe assy., 36 in. filter Î
9 51999100 Kit, service air tube, 3/8 in. o.d. Ê
9 55020300 Kit, service air tube, 26 in. filter ËÍ
9 150023 Kit, service air tube, 26 in. filter ÎÏ
9 150037 Kit, service air tube, 26 in. filter Ð
9 55020800 Kit, service air tube, 30 & 36 in. filter ËÍ
9 150024 Kit, service air tube, 30 & 36 in. filter ÎÏ
9 150038 Kit, service air tube, 30 & 36 in. filter Ð
9 150044 Kit, service air tube, 36 in. filter Ð
10 55025800 Lateral, underdrain, 26 in. filter, (3-7/8 in.), 8 per filter Ì
10 55025900 Lateral, underdrain, 30 in. filter, (7-7/8 in.), 8 per filter Ì
10 55026300 Lateral, underdrain, 36 in. filter, (10 in.), 8 per filter Ì
11 55007800 Drain assy., complete
11 86300300 Fitting, drain sand/water
11 86300400 Cap, drain
11 86300500 Gasket, drain cap
12 55226100 Base, 26 in. filter
12 55235000 Base, 30 & 36 in. filter
13 53007111 Fitting, bulkhead, outer
51021500 Gasket, bulkhead
52000100 O-ring, bulkhead, (1) req.
52000200 O-ring, bulkhead, (2) req.
55023200 Funnel, sand filling, 26, 30 & 36 in. filter
1
2
3
4
5
6
7
8
9
11
12
10
13
10
7
8
LEGEND
Ê Used on filters manufactured before 9-94.
Ë Used on filters manufactured after 9-94.
Ì New improved laterals will fit hubs previously manufactured.
Í Used on filters manufactured before 11-98.
Î Used on filters manufactured after 11-98.
Ï Used on filters manufactured before 11-1-99.
Ð Used on filters manufactured after 11-1-99.
