Pentair FNS Plus User Manual

10
FNS
®

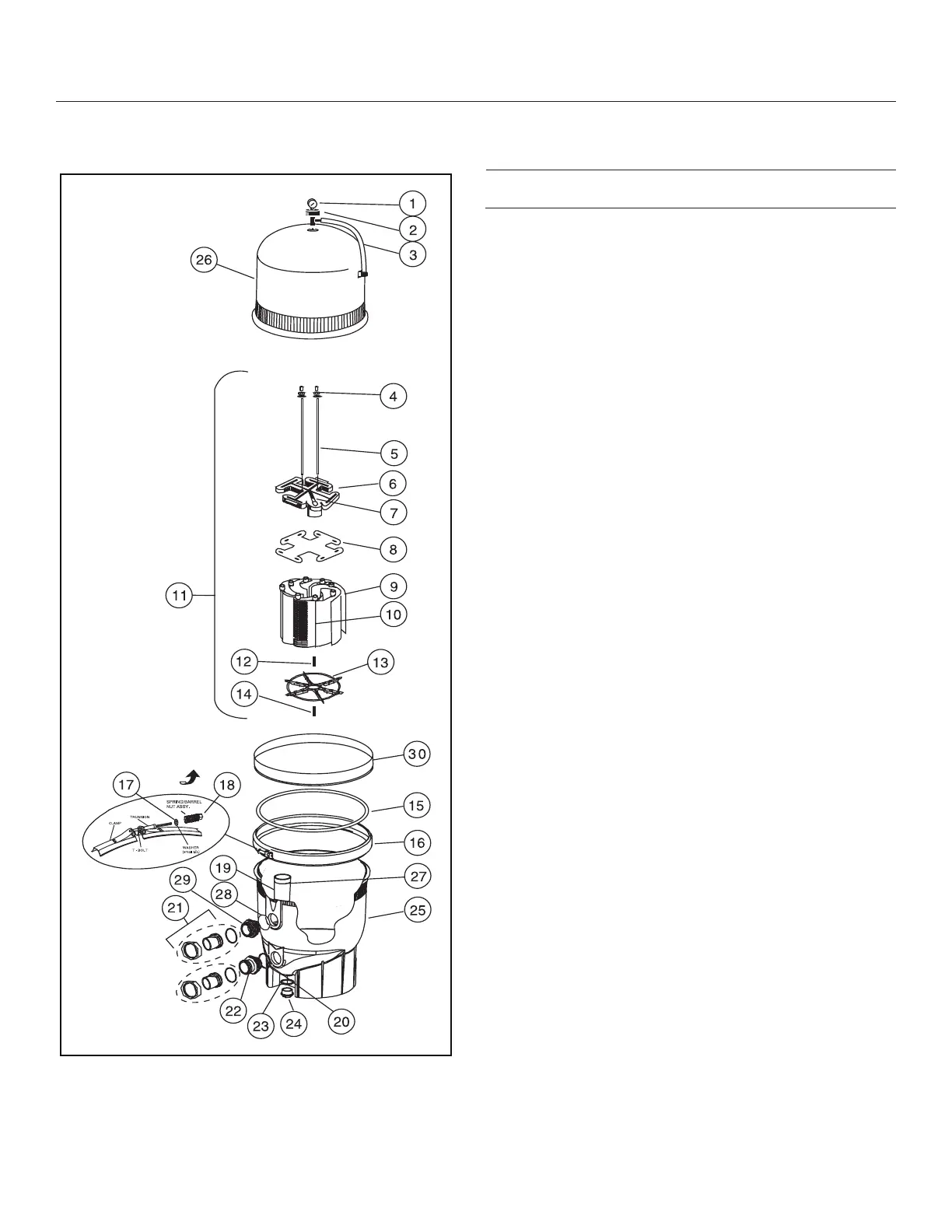

PLUS Vertical Grid D.E. Filter Installation and User’s Guide
Item Part
No. No. Description
1 53003201 Gauge, pressure
2 98209800 High Flow Manual Air Relief Valve (HFMARV)
3 98201200 Hose and retainer clips for HFMARV (Optional accy.)
4 58001100 Nut, knurled brass
5 59000800 Tie Rod, 24 sq. ft. filter
5 59001500 Tie Rod, 36 sq. ft. filter
5 59002100 Tie Rod, 48 sq. ft. filter
5 59002700 Tie Rod, 60 sq. ft. filter
6 59023700 Manifold, top with air bleed
7 59023600 Internal air bleed assembly
8 98725800 Template, filter
9 59001100 Grid, lg. 12 in., 24 sq. ft. filter
9 59001800 Grid, lg. 18 in., 36 sq. ft. filter
9 59002400 Grid, lg. 24 in., 48 sq. ft. filter
9 59003000 Grid, lg. 30 in., 60 sq. ft. filter
10 59001000 Grid, sm. 12 in., 24 sq. ft. filter
10 59001700 Grid, sm. 18 in., 36 sq. ft. filter
10 59002300 Grid, sm. 24 in., 48 sq. ft. filter
10 59002900 Grid, sm. 30 in., 60 sq. ft. filter
11 59023800 Assy., element grid, complete, 24 sq. ft. filter
11 59023500 Assy., element grid, complete, 36 sq. ft. filter
11 59023400 Assy., element grid, complete, 48 sq. ft. filter
11 59023300 Assy., element grid, complete, 60 sq. ft. filter
12 98211400 Nut, 1/4-20, plated brass
13 59000500 Spider, grid locator
14 58001000 Nut, lock, hex, nylon
15 39010200 O-ring, tank clamp (.470 O.D.)
16 190003 Clamp, kit
17 195610 Washer, small I.D.
17a 195611 Washer, large I.D.
18 194997 Nut, machined
18a 195612 Spring
19 190034 Assy., standpipe, outlet, 24 sq. ft. filter
19 190035 Assy., standpipe, outlet, 36 sq. ft. filter
19 190036 Assy., standpipe, outlet, 48 sq. ft. filter
19 190037 Assy., standpipe, outlet, 60 sq. ft. filter
20 86006900 O-ring, bulkhead
21 271096 Bulkhead union (set)
22 190043 Assembly, pipe, inlet
23 51005000 O-ring for drain plug
24 86202000 Plug, 1½ in. drain, with O-ring
25 170015 Tank, bottom, assy., 24 sq. ft. filter
25 170016 Tank, bottom, assy., 36 sq. ft. filter
25 170017 Tank, bottom, assy., 48 sq. ft. filter
25 170018 Tank, bottom, assy., 60 sq. ft. filter
26 170019 Lid, assy., 24 sq. ft. filter
26 170020 Lid, assy., 36 sq. ft. filter
26 170021 Lid, assy., 48 sq. ft. filter
26 170022 Lid, assy., 60 sq. ft. filter
27 192320 O-ring, bulkhead
28 59000600 O-ring 2-137 Buna N 70SH
29 194801 Bulkhead, 2 in.
30 195339 Ring, back-up
TECHNICAL DATA
Replacements Parts

Pentair FNS Plus Specifications

General

Filter Type	Diatomaceous Earth (DE)
Filter Area	60 sq. ft.
Max Working Pressure	50 psi
Inlet/Outlet Size	2 inches
Waste Line Size	2 inches
Valve Type	Multiport Valve
Tank Material	Fiberglass
Warranty	1 Year Limited
Body Material	Fiberglass
