INTELLICHLOR Flow-Temperature Switch Replacement Kit Installation Guide
1. Insert the flow-temperature switch into threaded hole in the cell
and hand tighten the switch as much as possible.
2. Using a flat 1-3/16” (30 mm) wrench carefully tighten the flow-
temperature switch assembly until the switch thread nearly
bottoms out.

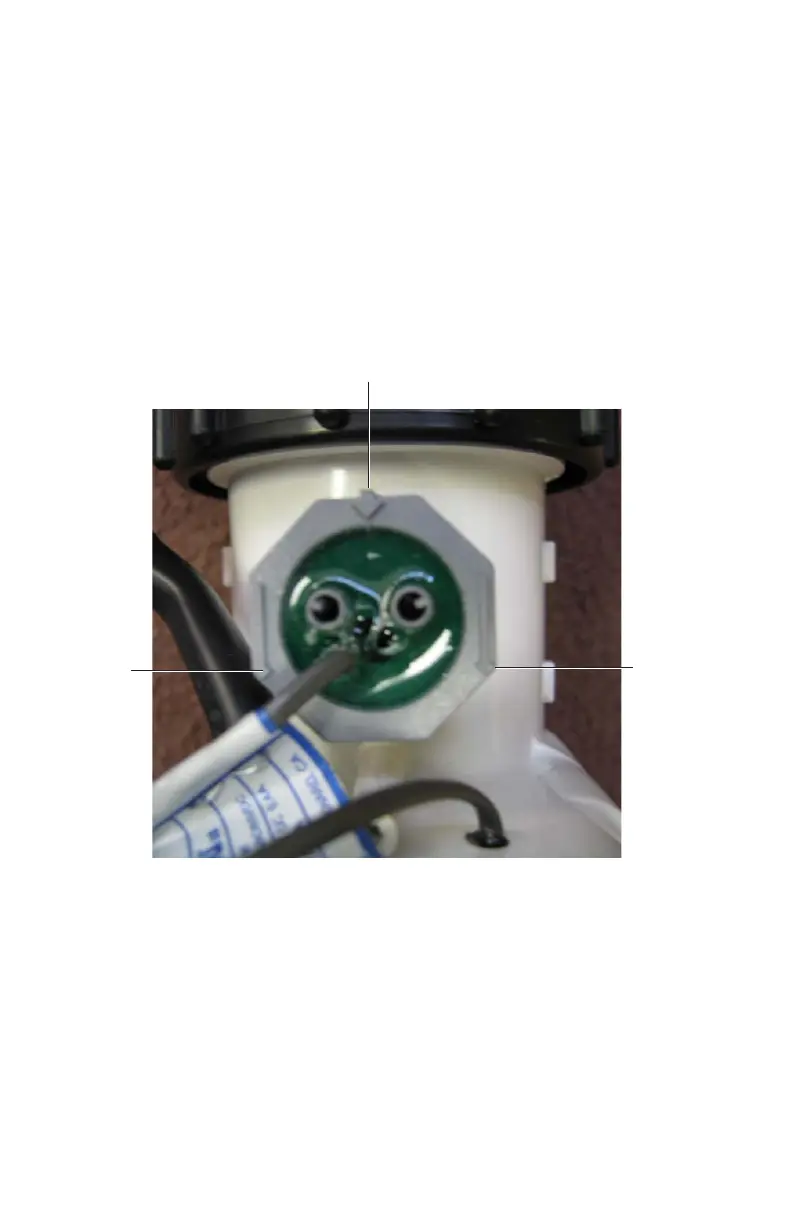

3. Tighten the switch nut until the arrows on the top of the switch
nut are pointing in the flow direction and the center arrow is
aligned in the center position as shown below.
4. Strip back the cable jacket that was cut from the unit.
Note: Do not strip the individual wires.
Step 3: Install the replacement flow-temperature switch
To replace the flow-temperature switch:
2
Center arrow
arrow
direction
arrow
direction

Pentair IntelliChlor Specifications

General

Type	Salt Chlorine Generator
Salinity Range	2500 - 4500 ppm
Cell Life	10, 000 hours
Flow Rate	20 GPM minimum, 80 GPM maximum
Power	240V AC, 50/60Hz
Chlorine Output	Varies by model (IC15, IC20, IC40, IC60 - corresponding to grams of chlorine produced per day)
