INTELLIFLO
®
2 VST Variable Speed Pump Installation and User’s Guide
0
10
20
30
40
50
60
70
80
90
100
0 102030405060708090100110120130140150160170180
TOTAL DYNAMIC HEAD IN FT OF WATER
FLOW RATE IN US GALLONS PER MINUTE
MAX SPEED @3450 RPM
SPEED 4 - 3110 RPM
SPEED 3 - 2350 RPM
SPEED 2 - 1500 RPM
SPEED 1 - 750 RPM

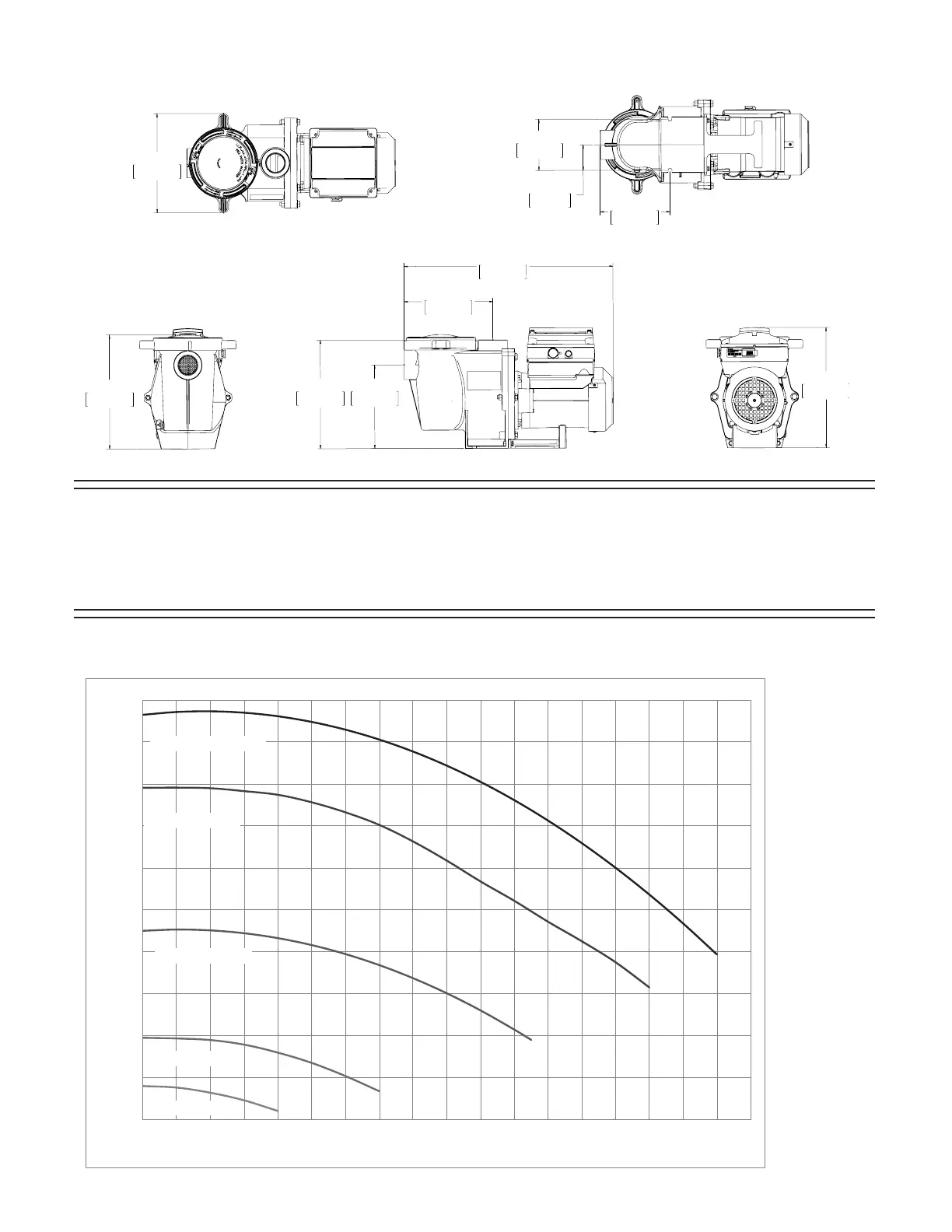

Pump Dimensions
23.4in
594mm
11.8in
301mm
9.9in
253mm
9.1in
232mm
10.8in
275mm
12.4in
316mm
13.1in
333mm
7.8in
199mm
2.8in
71mm
5.6in
142mm
Electrical Specifications
Circuit Protection: Two-pole 20 AMP device at the Electrical Panel.
Input: 208-230 VAC, 50/60 Hz, 3200 Watts Maximum, 1 phase
Pump Performance Curves

Pentair INTELLIFLO 2 VST Specifications

General

Brand	Pentair
Model	INTELLIFLO 2 VST
Category	Water Pump
Language	English
