3
INTELLIFLO
®
VS+SVRS and INTELLIPRO
®
VS+SVRS Variable Speed Pump Installation and User’s Guide
Motor Assembly
The IntelliFlo
®
VS+SVRS Pump’s three-phase six-pole motor operates from 3450 RPM to 1100
RPM. The drive assembly is continually cooled by an external fan. Dual seals on the motor drive
shaft and at the fan shaft assembly seal the entire motor and bearings from any dirt and moisture
entering the motor assembly. For added protection, a slinger located in front of the main motor shaft
seal assists in slinging water away from the shaft opening in the ange.

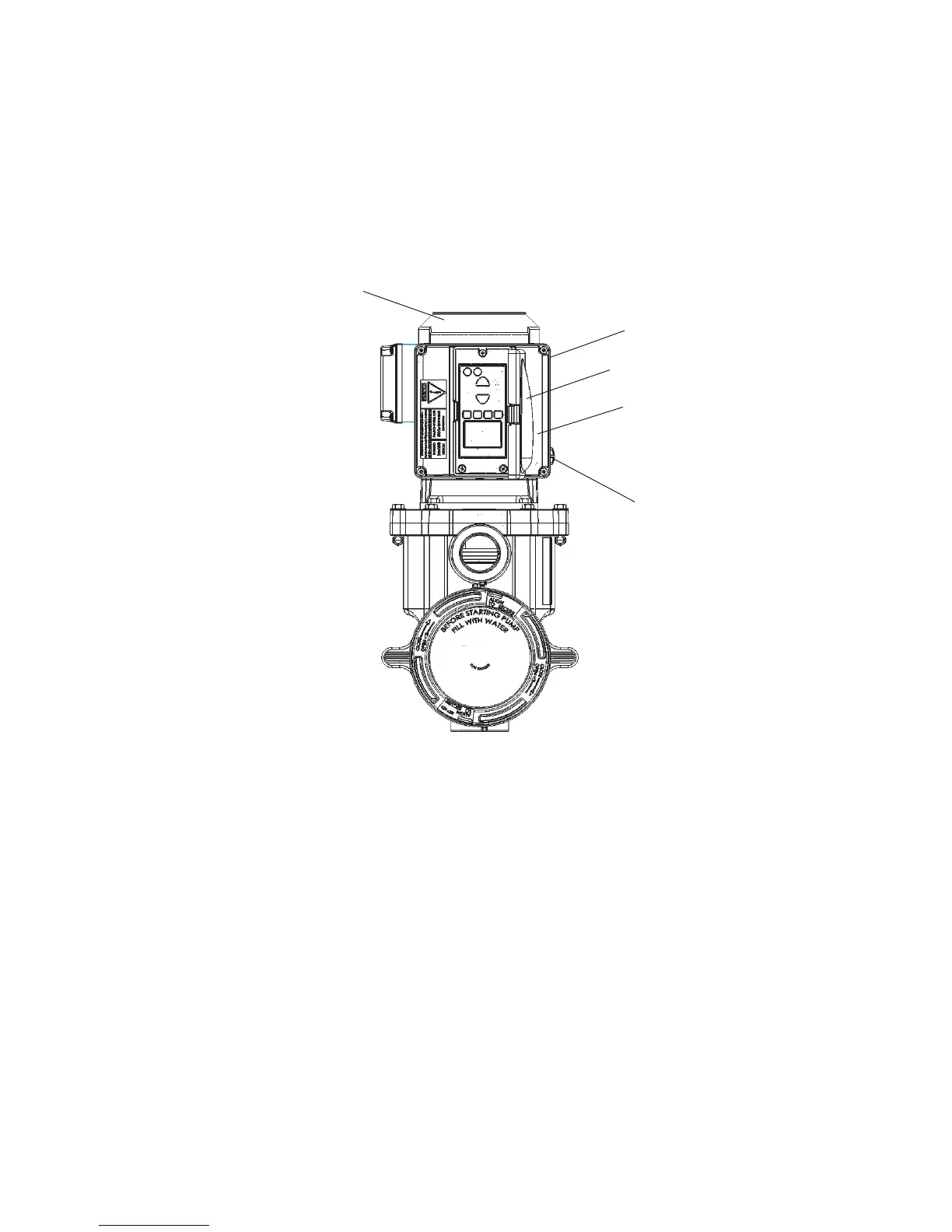

Drive assembly and
electronics enclosure
Pump Assembly
Motor fan cover
Communication port for connection
to EasyTouch
®
, IntelliTouch
®
or
SunTouch
®
Control System or
IntelliComm
®
Communication Center
via two-wire RS-485 cable
Motor assembly
Control panel cover
Motor Features
Permanent Magnet Synchronous Motor (PMSM)
High efciency
Superior speed control
Operates at lower temperatures due to high efciency
Same technology as deployed in hybrid electric vehicles
Designed to withstand outdoor environment
Totally enclosed fan cooled
Three-phase motor
56 Square Flange
Six-Pole
Low noise
