Pentair ONGA 112 Series User Manual

13
REPAIR PARTS LIST

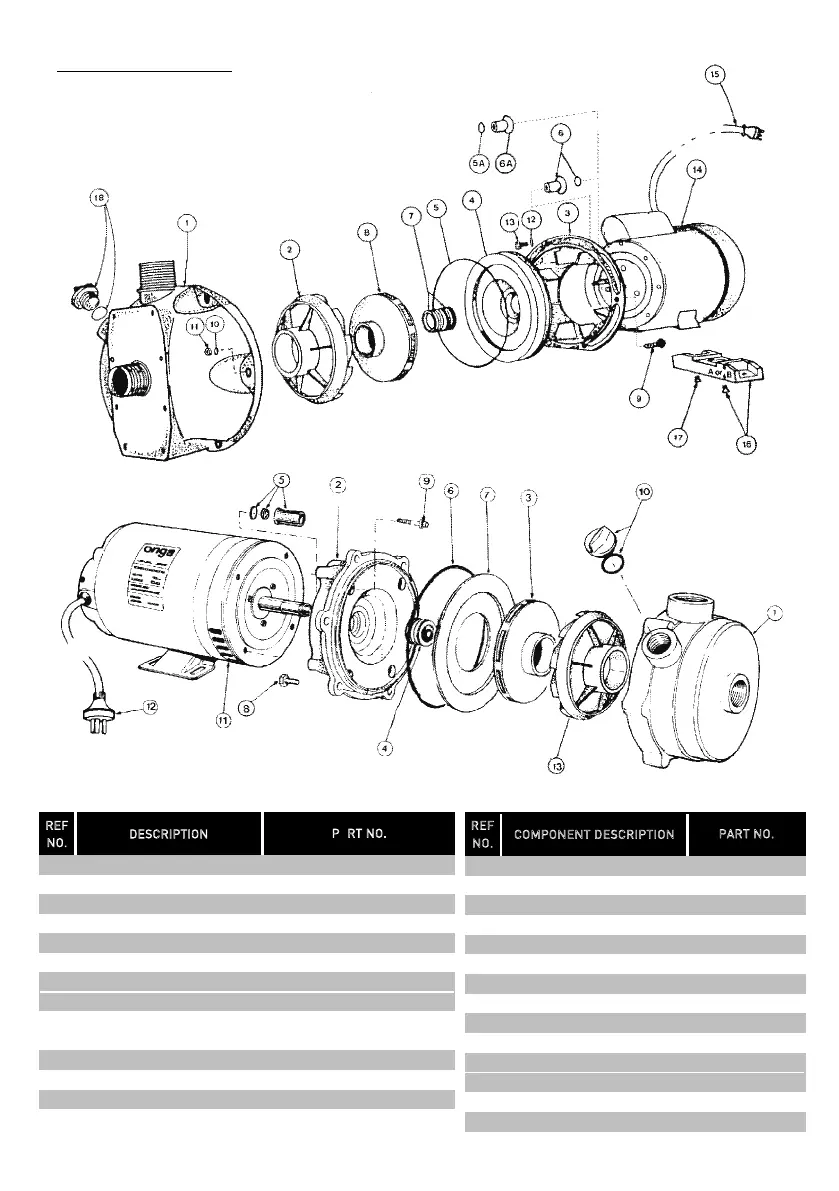

Drawings are indicative only, product appearance may change slightly.
REF
N
O.
DESCRIPTION
1 CASING 402721 1PC
2 DIFFUSER 402810 1PC
3 YOKE 301850 1PC
4 BAFFLE 402301K 1PC
5 O'RING CASING 702184K 1PC
7 SEAL KIT (INC. 6 & 7) 800887K 1PC
8 IMPELLER (1 PHASE) 506343K 1PC
IMPELLER (3 PHASE) 801235K 1PC
14 MOTOR - 1PH 801015 1PC
MOTOR - 3PH 800447 1PC
15 LEAD 608200K 1PC
18 PRIMING PLUG & O'RING 800017 2PC
NS NUT DOMED (3 PHASE ONLY) 603250 1PC
P
ART NO.
– 112 Range
REF
N
O.
C
1
2
3
4 SEAL KIT (INC. 4 & 5) 800583K 1PC
5 SHAFT SLEEVE KIT
6 O-RING - CASING
7
8
9 BOLT & BOLT SEAL (PK/12) 800242K 1PC
10 PRIMING PLUG & O-RING 800017K 1PC
11 MOTOR - 1 PHASE
12
13
OMPONENT DESCRIPTION
CASING 400880GN 1PC
YOKE 402400GN 1PC
IMPELLER 506343 1PC
800895K 1PC
700206K 1PC
BAFFLE 403233 1PC
SCREW (PK/10) 800097 1PC
800445 1PC
MOTOR - 3 PHASE 800447 1PC
LEAD 608200K 1PC
DIFFUSER 402810 1PC
P
ART NO.
– 252 Range
112 252
