REPAIR PARTS LIST (continued)

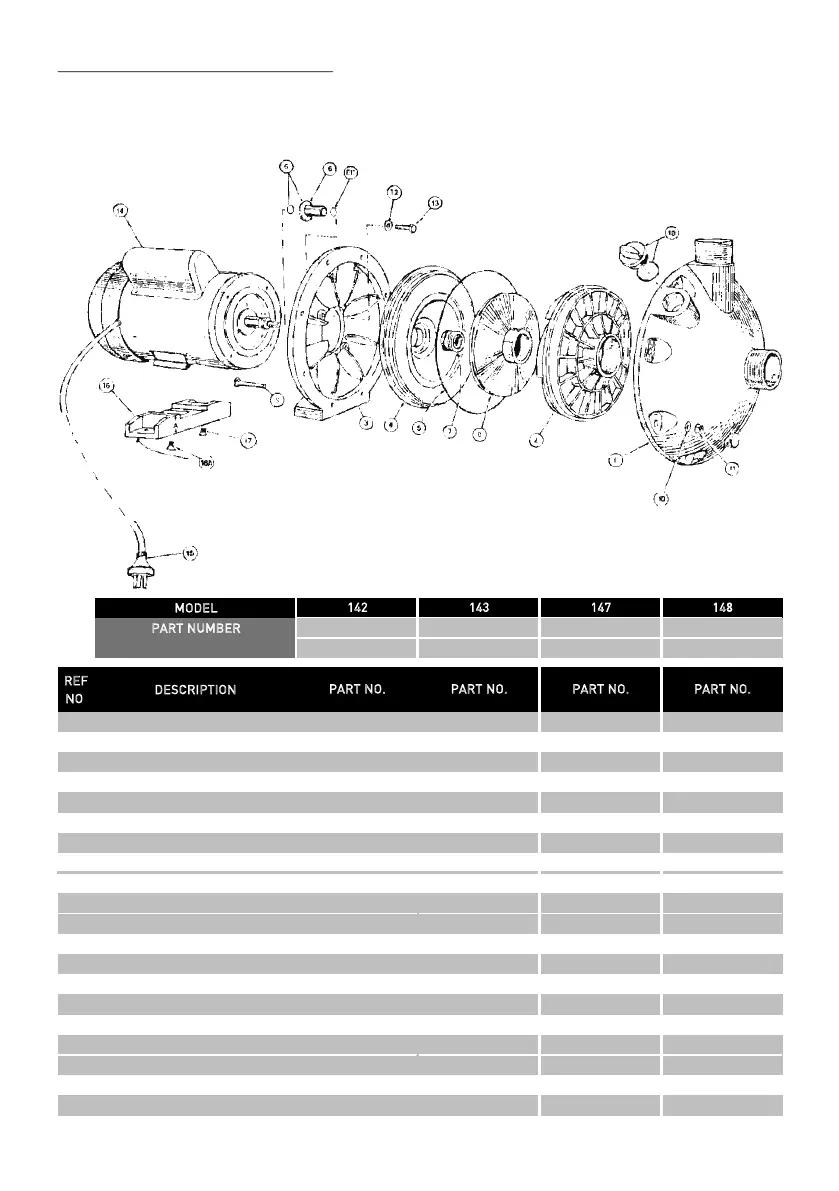

Drawings are indicative only, product appearance may change slightly.
MODEL
PART NUMBER
REF
N
O.
D
ESCRIPTION
1 CASING 301106 1PC 301106 1PC 301106 1PC 301106 1PC
2 DIFFUSER 301431K 1PC 301481K 1PC 301431K 1PC 301431K 1PC
3 YOKE 402061 1PC 402061 1PC 402061 1PC 402061 1PC
4 BAFFLE 403501 1PC 403421 1PC 403501 1PC 403501 1PC
5 O'RING CASING 702180K 1PC 702180K 1PC 702180K 1PC 702180K 1PC
6 SHAFT SLEEVE & O'RING KIT 800895K 1PC 801007K 1PC 800895K 1PC 800895K 1PC
6b O'RING SHAFT SLEEVE (PK 10) 702218K 1PC - 1PC 702218K 1PC 702218K 1PC
7 SEAL KIT (INC. SEAL + 6) 800583 1PC 800890K 1PC 800583 1PC 800583 1PC
SEAL (PK 25) 800900 1PC 800900 1PC 800900 1PC 800900 1PC
8 IMPELLER - 1PH 506353K 1PC 503843K 1PC 507103 1PC 506353K 1PC
IMPELLER - 3PH 801231K 1PC 503849K 1PC - 1PC - 1PC
9 COACH BOLT (PK 10) 800254 8PC 800254 8PC 800254 8PC 800254 8PC
10 WASHER (PK 20) 800151 8PC 800151 8PC 800151 8PC 800151 8PC
11 NUT (PK 12) 702025K 8PC 702025K 8PC 702025K 8PC 702025K 8PC
12 WASHER (PK 20) 800151 4PC 800151 4PC 800151 4PC 800151 4PC
13 SCREW (PK 10) 800097 4PC 800097 4PC 800097 4PC 800097 4PC
14 MOTOR - 1PH 800445 1PC 800446 1PC 801015 1PC 801015 1PC
MOTOR - 3PH 800447 1PC 800449 1PC - 1PC - 1PC
NS NUT DOMED 3PH MOTOR 3/4IN 603250 1PC 603250 1PC 1PC 1PC
15 LEAD 608200K 1PC 608200K 1PC 608200K 1PC 608200K 1PC
16 PRIMING PLUG & O'RING 800017K 1PC 800017K 1PC 800017K 1PC 800017K 1PC
1
48
314800
P
ART NO. PART NO. PART NO. PART NO.
142
314200
314230
1
43
314300
314330
1
47
314700
To Next Page
