SUPERFLO® VST, SUPERFLO
®
VS and SUPERMAX® VS Variable Speed Pumps Installation and User’s Guide
Programming Quick Clean
The pump is equipped with a Quick Clean feature, which
can be engaged to temporarily run at higher or lower speeds
ranging from 300 to 3450 RPM.
At the end of a Quick Clean cycle, the pump will automatically
return to the appropriate point in its programmed schedule.
Note: Pressing and holding Quick Clean for more than 3
seconds will cancel a Quick Clean cycle. The pump will then
return to the appropriate point in its programmed schedule.
TO PROGRAM QUICK CLEAN:
1. Press Start/Stop to stop the pump.

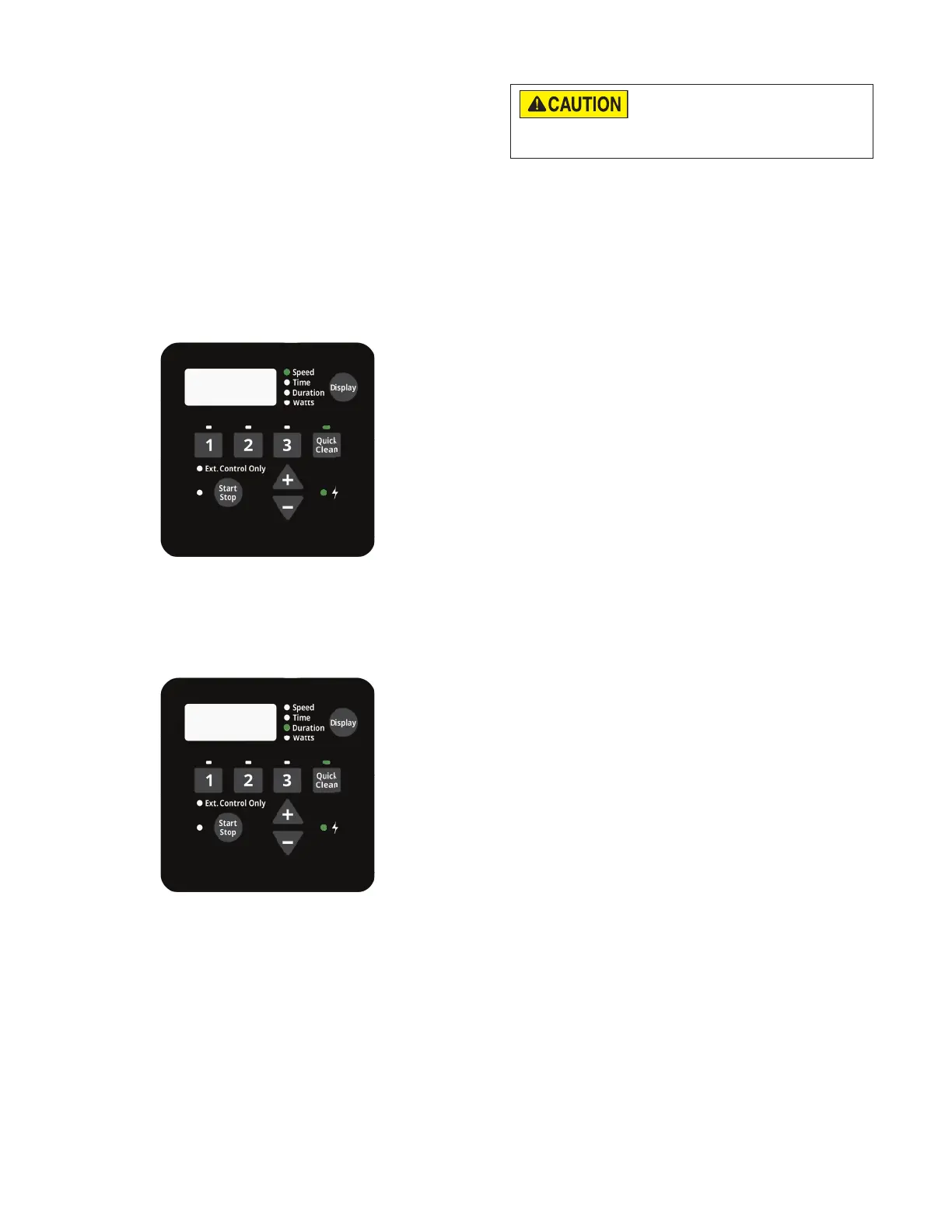

2. Press Quick Clean. The Quick Clean LED and “Speed”
parameter LED will blink while editing. See Figure 14.
3450
Figure 14
3. Use “+” and “-” to adjust the Quick Clean speed in RPM.
4. Press Quick Clean. The Quick Clean duration will
display. The “Duration” parameter LED will blink while
editing. See Figure 15.
2
:
00
Figure 15
5. Use “+” and “-” to adjust the Quick Clean duration in
hours and minutes.
Note: It is recommended that you do not set the Quick
Clean duration to 0 HRS. Setting the Quick Clean
duration to 0 HRS will prevent edits to the duration
setting while the motor is running. The motor will need to
be stopped.
Note: Quick Clean duration does not a󰀨ect the start
or stop times of the 24-hour schedule. For example, if
Quick Clean runs during a period overlapping with a later
part of SPEED 1 and an early part of SPEED 2, the start
time of SPEED 3 is not a󰀨ected.
Keypad Lockout
Keypad lockout will not prevent the motor
from being stopped by pressing the Start/
Stop button. If the pump is stopped with the Start/Stop button during
Keypad Lockout, it can not be restarted until the keypad is unlocked.
The pump features a Keypad Lockout mode.
Keypad Lockout is intended to prevent unwanted
changes to pump settings. When locked, the pump
will only respond to:
• Pressing Display to cycle through current
pump information.
• Pressing Start/Stop to stop the pump and/or
enable/disable external control.
Note: The pump can not be manually
restarted using the Start/Stop button until
the keypad is unlocked.
• Pressing Quick Clean to start a quick clean
cycle or using the "+" or "-" buttons to make
temporary adjustments to quick clean settings.
• Any drive-programmed or external control
schedules, as long as the Start/Stop LED is
illuminated.
TO LOCK/UNLOCK THE PUMP:
1. Press and hold the “1” and Quick Clean buttons
for at least 3 seconds.
2. “Loc On” or "Loc O󰀨" will scroll across the
screen if succesful.

Pentair SuperFlo VS Specifications

General

Horsepower	1.5 HP
Control	Digital
Energy Efficiency	ENERGY STAR Certified
Warranty	1-year limited warranty
Motor Type	Permanent Magnet Motor
Maximum Head	50 feet
Speed Range	Variable Speed
Type	Variable Speed
Union Connection	2-inch
Port Size	2-inch
