VST Variable Speed Pump Installation and User’s Guide
21
Item P/N Description
19 070927 Motor Foot
20 070929 Insert, Motor Foot
21 071657z Screw, Motor Foot, 2 Req.
22 071406 Nut, Motor Foot, 2 Req.
23 072183 Washer, Motor Foot, 2 Req.
24 071131z Drain Plug, 2 Req.
25 192115 O-ring, Drain Plug, 2 Req.
26 357149
Strainer Pot/Seal Plate Kit,
(Incl. Items: 1-4, 9, 10, 16, 18, 24, and 25)
27 073130 Impeller
28 356279 Drive Cover
29 356282 Drive Kit
30 356286s Motor
31 356289s Motor/Drive Assembly
- 075455 Fluid Assembly, (Incl. All Items EXCEPT 31)
- 357243
Strainer Pot Assembly, (Incl. Items 1-4, 10,
24 and 25)
- 356324z RS-485 Automation Wiring Kit
- 357923z Motor Fan Guard Kit
Item P/N Description
1 357199 Lid Clamp
2
357151 Lid
357156 Lid, Chemical Resistant
3 350013z O-ring, Lid
4 070387z Strainer Basket
5 070430 Bolt, 3/8 - 16 x 1-1/4 Hex Head. SS, 4 Req.
6 072184 Washer, 3/8 x 7/8 O.D. SS, 6 Req.
7 070431 Bolt, 3/8 - 16 x 2 Hex Head. SS, 2 Req.
8 071403 Nut, 3/8, 16 Hex Head, 2 Req.
9 357100z Gasket, Seal Plate
10 350015 Strainer Pot
11 355227z O-ring, Di󰀨user
12 071660z Screw, Di󰀨user, 2 Req.
13 072927z Di󰀨user
14 071652z Impeller Screw, 1/4 - 20 x 1 in., LH, Phillips
15 075713 Washer, Impeller Screw
16
071734s Shaft Seal, PA-7 w/ Ceramic Seat, PS1000
071732s Shaft Seal, Ozone/Salt Resistant
17 070429z Bolt, Motor/Seal Plate, 4 Req.
18 350202
Seal Plate Kit (Shaft Seal installed) (Incl.
Items 9, 16 & 18)
(-) Not shown

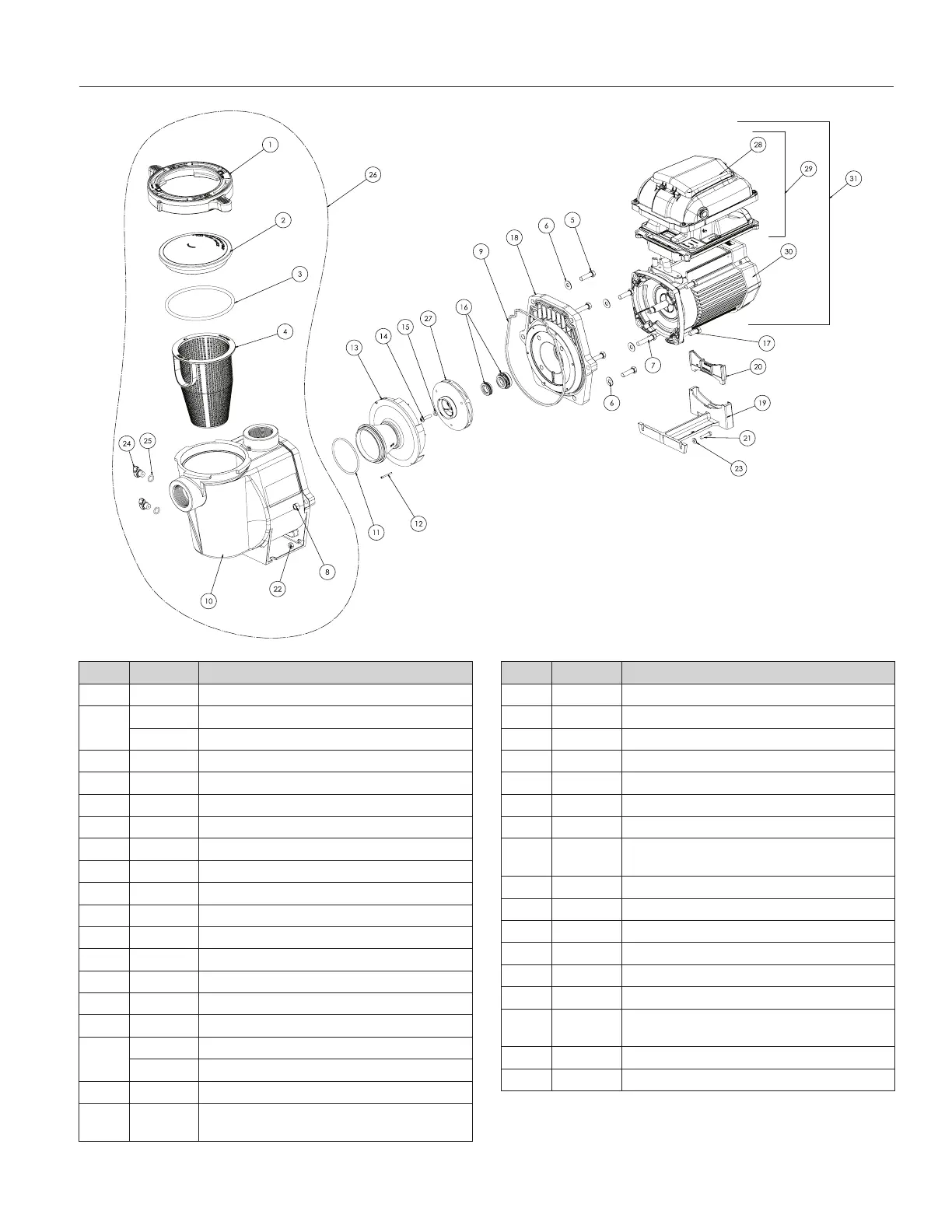

REPLACEMENT PARTS
