Pentair WHISPERFLO VS User Manual

22
WHISPERFLO
®
VS and WHISPERFLO
®
VST Variable Speed Pump Installation and User’s Guide
9.1”
(232 mm)
10.1”
(256 mm)
11.8”
(300 mm)
12.8”
(326 mm)
7.8”
(198 mm)
5.6”
(142 mm)
10”
(254 mm)

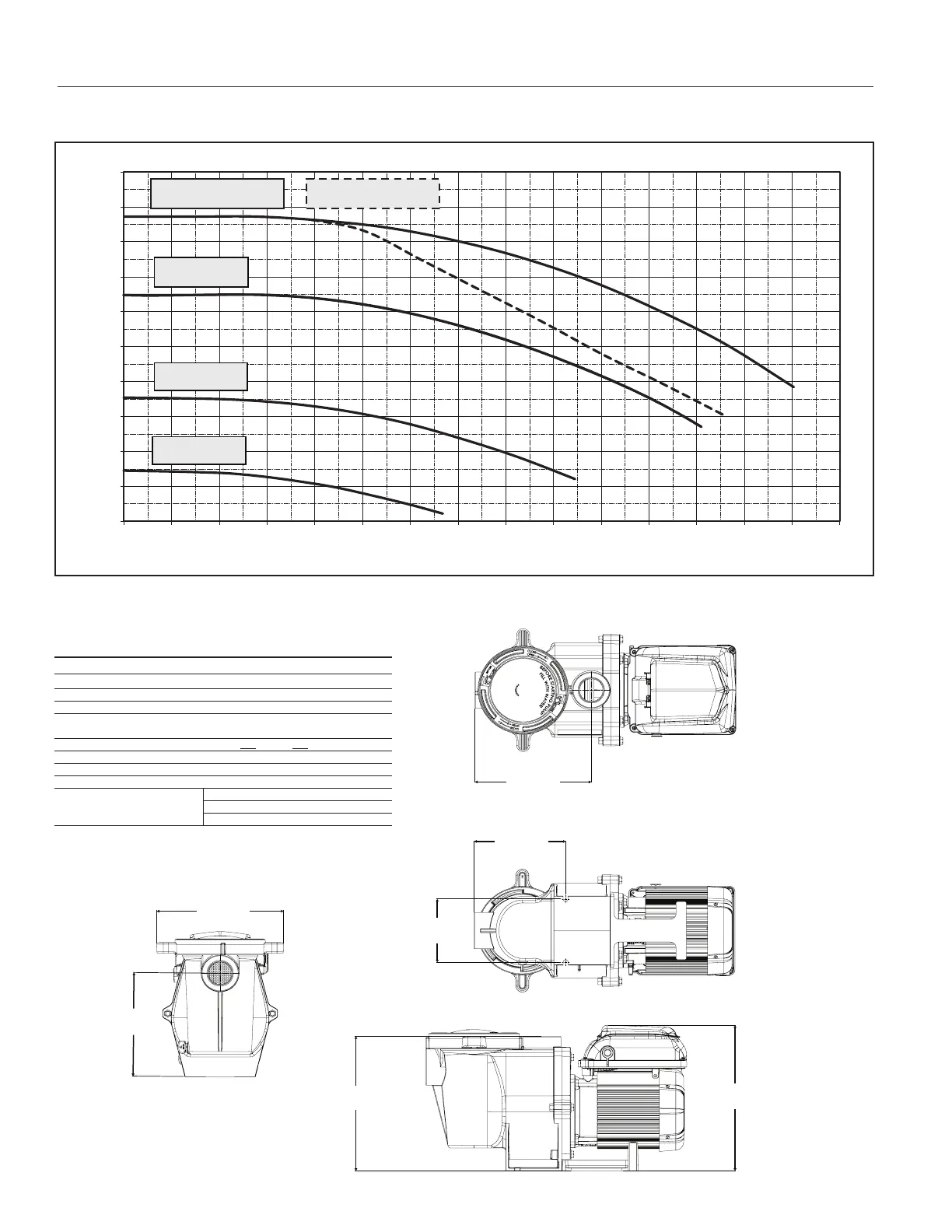

Specications and Dimensions
Performance Curves
0
10
20
30
40
50
60
70
80
90
100
0102030405060708090100 110120 130140 150
Total Dynamic Head in Ft of H
2
O
Volumetric Flow Rate in GPM
QUICK CLEAN / 3450 RPM
(230V)
SPD 1 / 3000 RPM
(115V / 230V)
SPD 3 / 2200 RPM
(115V / 230V)
SPD 2 / 1400 RPM
(115V / 230V)
QUICK CLEAN / 3450 RPM
(115V)
TECHNICAL DATA
Overall Ratings
Input Voltage 115-230 Vrms nominal
Input Current 13.9/11.1-10.1 A
Input Frequency Single phase, 50 or 60 Hz
Control Terminals 18-30V AC (24V AC +/-20%) or
9-30V DC (12/24V DC +/-20%)
Maximum Continuous Load WEF 8.4 THP: 2.6
Speed Range 450 - 3450 RPM
Environmental Rating NEMA Type 3
Ambient Conditions
Storage -40ºC to +85ºC (-40ºF to +185°F)
Operating 0ºC to +50ºC (+32°F to +122°F)
Humidity Relative 0 to 95 % non-condensing
