General
1
1-1-3. Internal Channels of Video Bronchoscopes

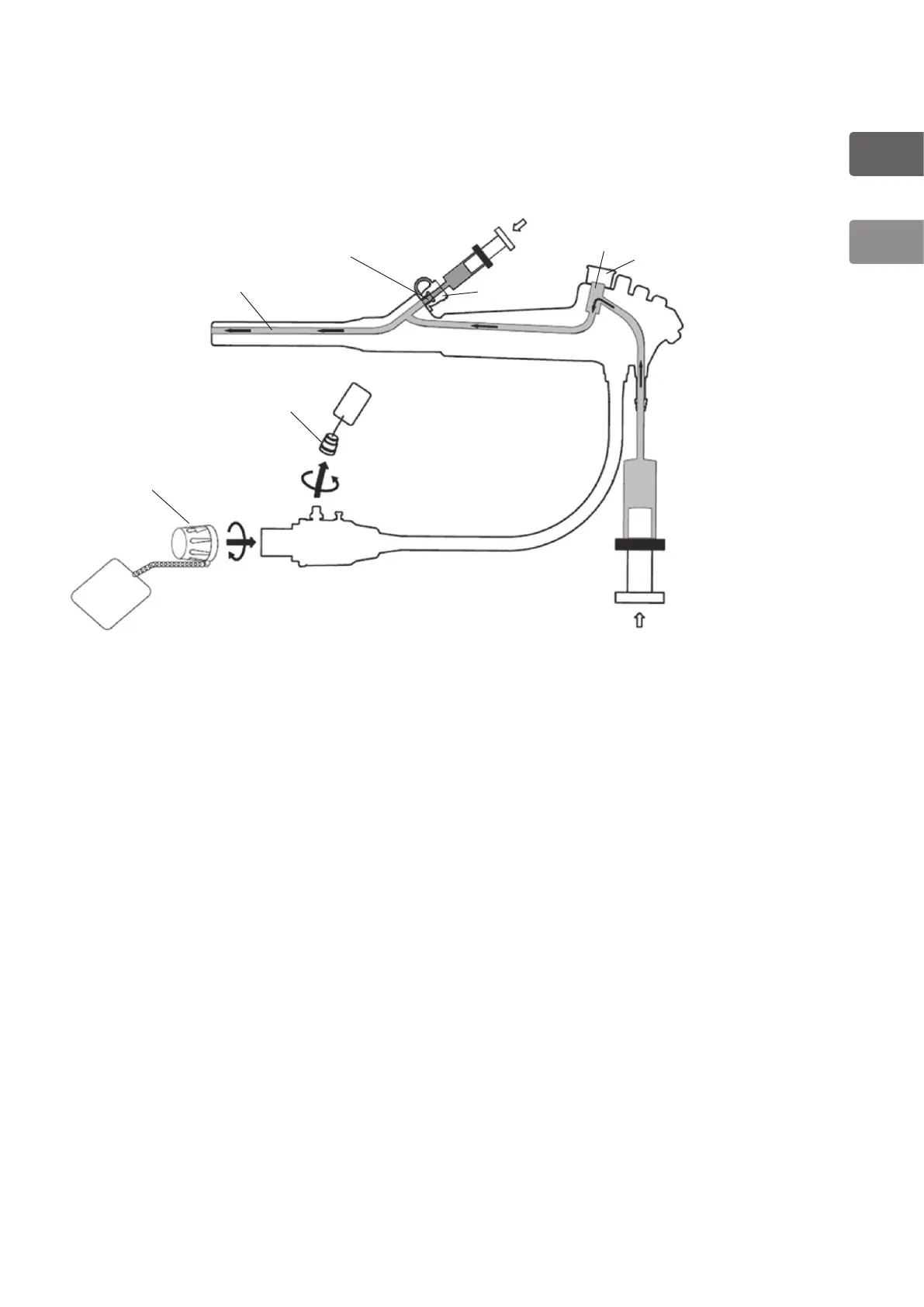

The following internal schematic is designed to help users better understand the intricate
construction of PENTAX endoscopes. Please note that all solution entrance ports and flow
pathways are illustrated below.
(1)
(7)
(3)
(4)
(5)
(6)
(2)
(1) Suction Channel
(2) Instrument
Channel Inlet
(3) Inlet Seal
(OF-B190)
(4) Suction Cylinder
(5) Cleaning Adapter
(OF-B155)
(6) Ventilation Cap
(OE-C5)
(7) PVE Soaking Cap
(OE-C9)
Figure 1.2
