6) Repeat steps 4 and 5 three additional times.
7) Insert cleaning brush (CS3010S for EB-1170K and EB-1990i/CS6015ST: for all
other scopes) into the instrument channel inlet, and gently advance it until it exits the
distal end of the endoscope.

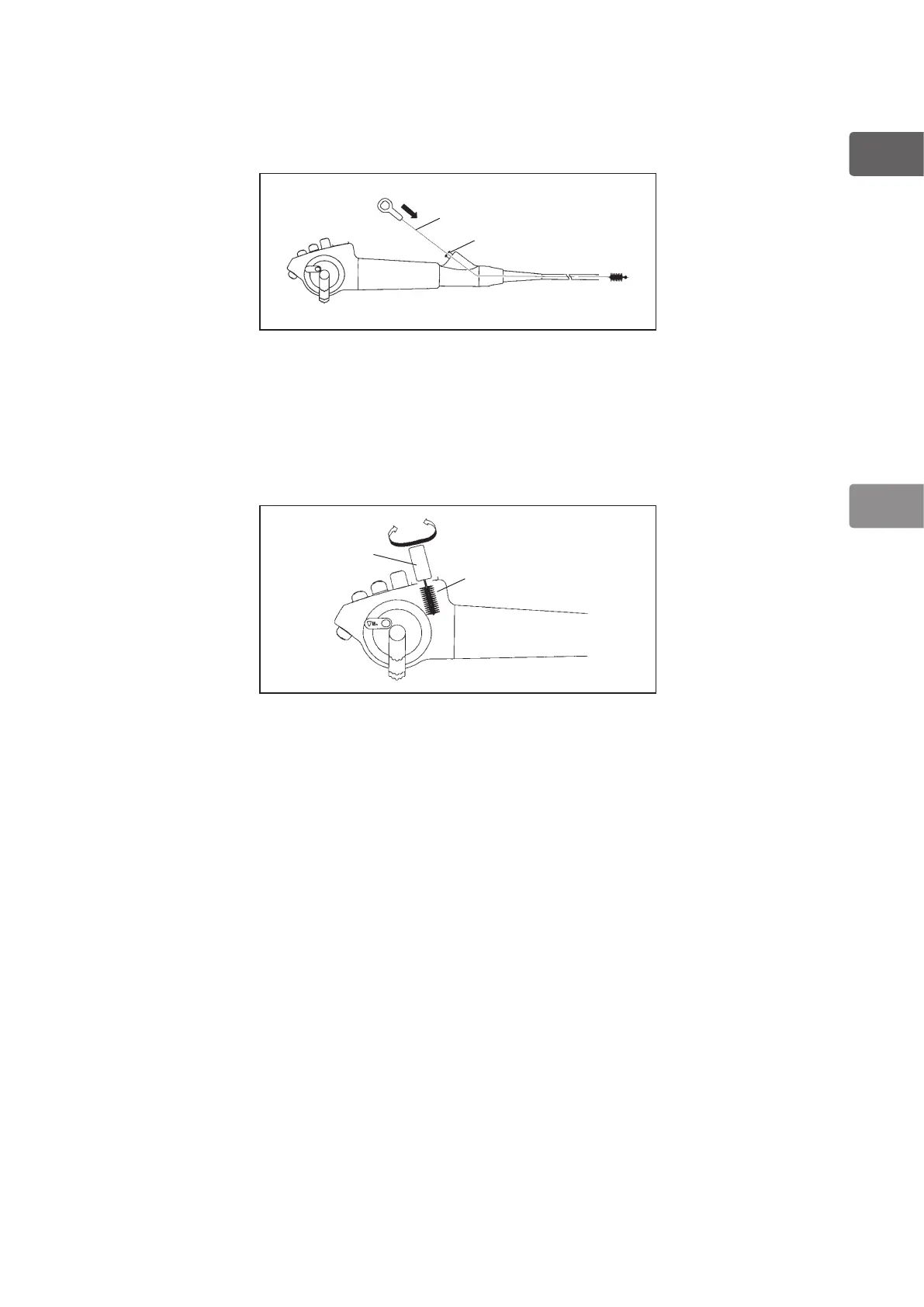

(1)
(2)
(1) CS3010S (for EB-
1170K and EB-1990i)
CS6015T (for all other
scopes)
(2) Instrument Channel
Inlet
Figure 1.13
8) Remove debris from the brush head by rubbing it with gloved ngers and then gently
withdraw the brush.
9) Repeat steps 7 and 8 three additional times.
10) Insert cleaning brush (CS-C3S) into the suction cylinder, and rotate it for 30 seconds.
Do not insert the brush excessively.
(1)
(2)
(1) CS-C3S
(2) Suction Cylinder
Figure 1.14
11) Withdraw the brush. Remove debris from the brush head by rubbing it with gloved
ngers.
12) Repeat steps 10 and 11 three additional times.
Endoscope
Cleaning
1
To Next Page
