Pentax EB-1970TK User Manual

– 2 –

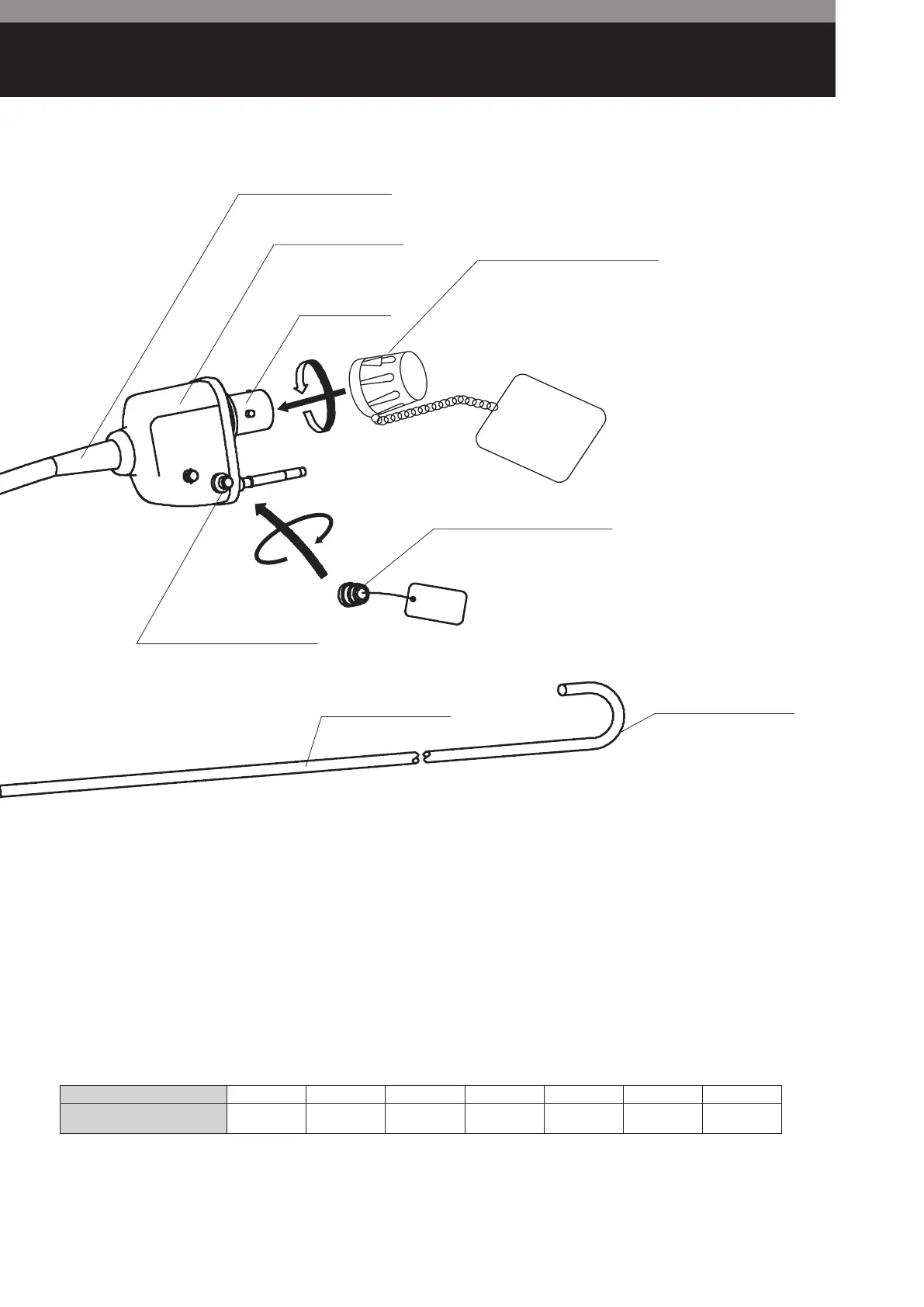

BENDING SECTION
INSERTION TUBE
ANGULATION CONTROL LEVER
ANGULATION LOCK LEVER
EB-1170K, EB-1570K, EB-1970TK only
CONTROL BODY
INSTRUMENT
CHANNEL INLET
SUCTION NIPPLE
STRAIN RELIEF BOOT
STRAIN RELIEF BOOT
MODEL DESIGNATION
STERRAD
®
NX™ system material compatibility identification symbol
This symbol denotes an endoscope model's material compatibility with
the STERRAD
®
NX™ system. (EB-1575K, EB-1975K, EB-1990i)
Endoscopes that do not have this symbol are incompatible with
the STERRAD
®
NX™ system. (EB-1170K, EB-1570K, EB-1970K,
EB-1970TK)
SUCTION CONTROL VALVE (OF–B179)
UMBILICAL CABLE
INLET SEAL (OF–B190)
ELECTRICAL
CONTACTS
PVE CONNECTOR
VENTILATION CAP OF-C5
VENTING CONNECTOR
PVE SOAKING CAP OE-C9
STRAIN RELIEF BOOT
Minimum Instrument Channel Width
Model Name


Video Bronchoscopes EB-1170K EB-1570K EB-1970K EB-1970TK EB-1575K EB-1975K EB-1990i
Minimum Instrument
Channel Width (I.D.
φ
mm)
1.2 2.0 2.8 3.2 2.0 2.8 1.2
Table of Minimum Instrument Channel Width

Pentax EB-1970TK Specifications

General

Brand	Pentax
Model	EB-1970TK
Category	Medical Equipment
Language	English
