Figure 2-9
Follow these four principles, then you can collect tilt points in four different
directions. Each direction should has 10 points. As the picture shows, set the pole on
one point, when you do this step. The tilt angle is 25°~30°, and make sure the
receiver is stable to collect points.
Collect tilt points in four different directions:

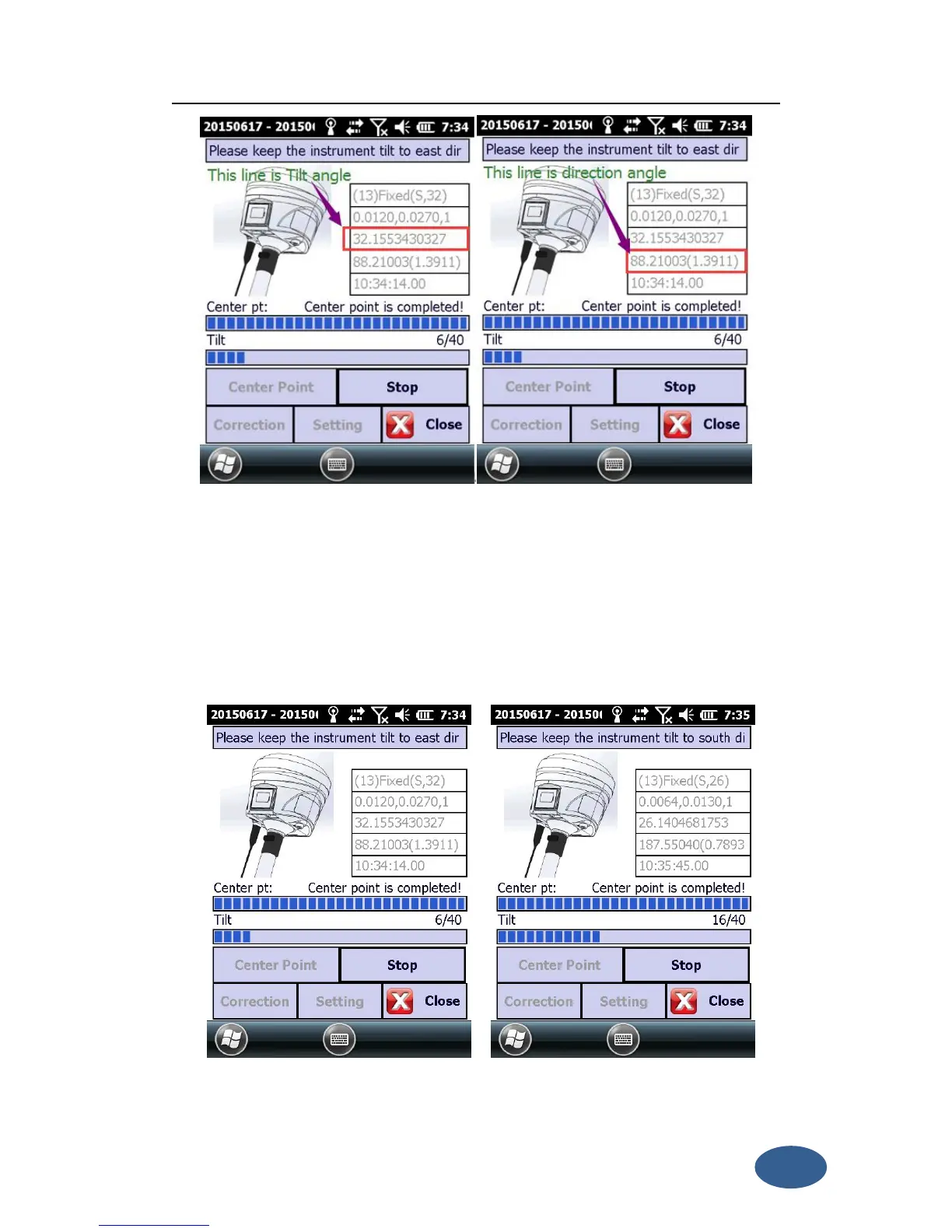

Figure 2-10 East Figure 2-11 South
