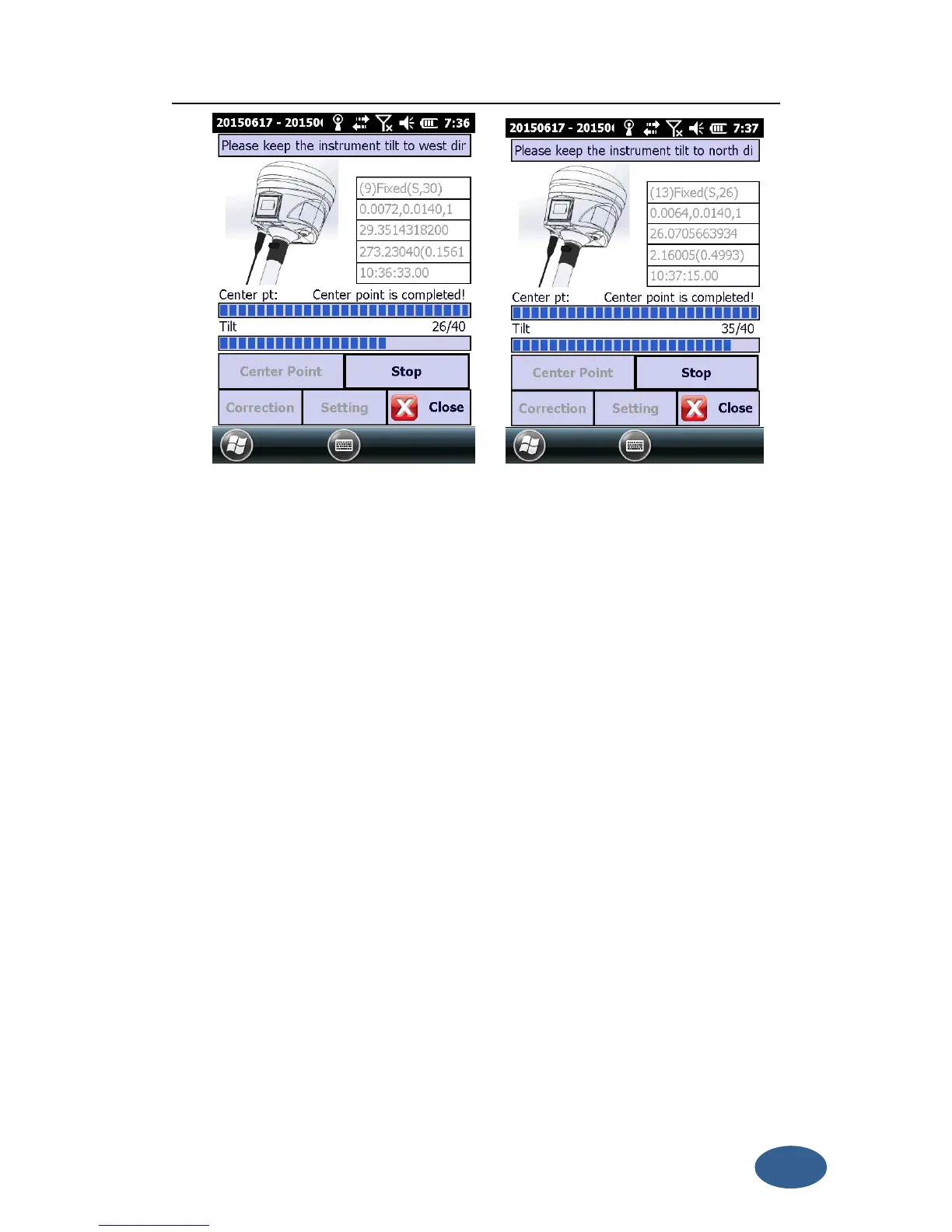

Figure 2-12 West Figure 2-13 North
After success record centers and tilts, then we should apply this parameter to
project. Click “Correction” to calculate the parameters, if it exceed the limit, we
should do the Sensor Calibrate again. If it doesn’t we can apply it. The software will
give message on the screen.
Click “Correction” to apply. Input the Antenna height, if you use the quick release
adapter, the height should be pole height + 0.04m. For example, the pole height is
1.8m, if you use quick release adapter, the height will be 1.84m. Then click “OK” to
use.
