1.2 G6 Receiver
G6 receiver is a flat cylindrical, 102mm in height, 131mm in diameter. The front side
has 1 power buttons and 3 indicators. The back side is a battery compartment. In the
compartment, there are two slots, one for SIM card another for Micro SD card.
The bottom of the receiver is some interfaces. They include a radio antenna interface,
a 5 pin external power interface and a 7 pin RS232/USB interface.
1.2.1. Front side of the Receiver

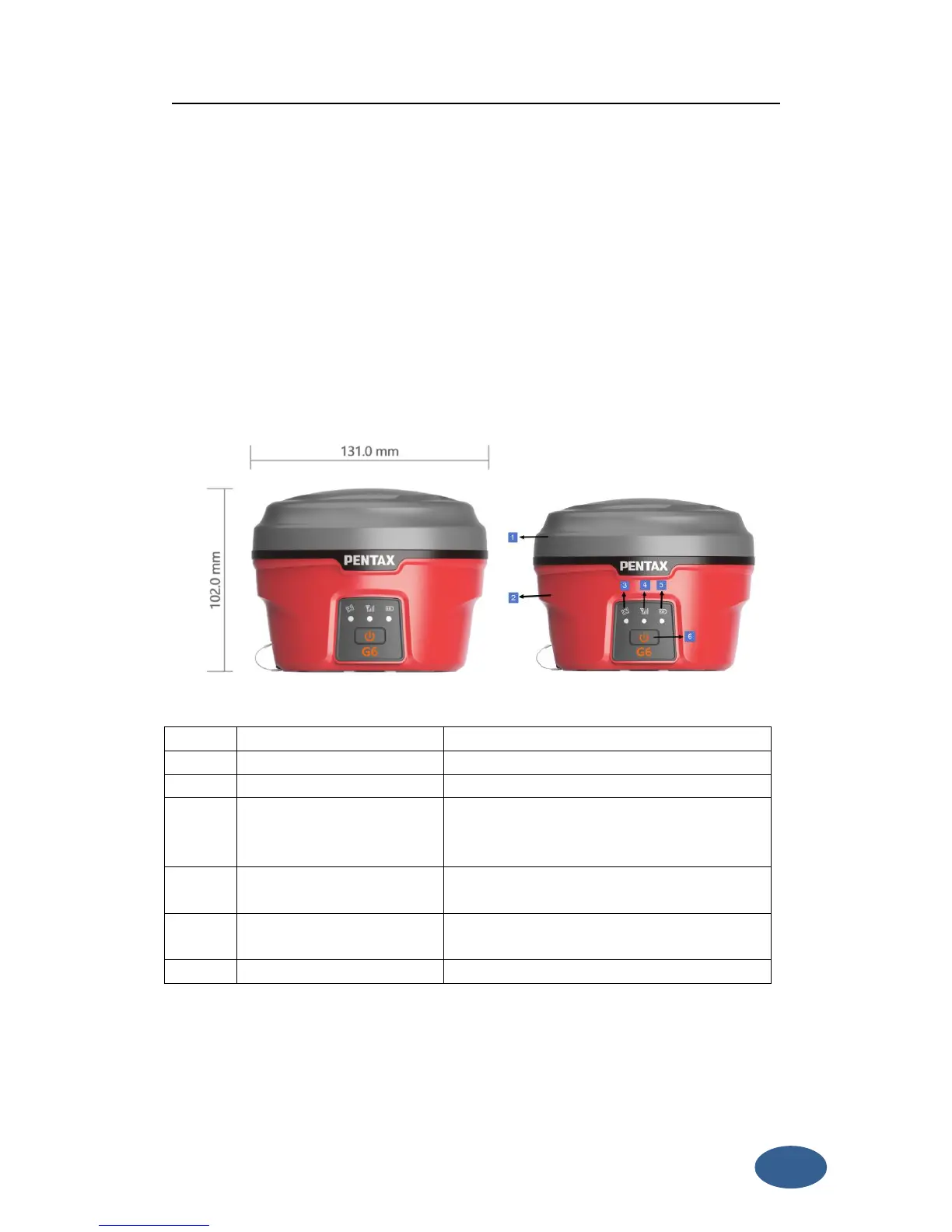

Figure 1- 1 Front panel
Number
Name
Function
1
Top housing
Protect the antenna.
2
Lower housing
Protect the receiver in case of drop.
3
Satellite led
How many time it blinks, means how many
satellites are locked, cycle once every 5
seconds.
4
Network led
It will blink when G6 is transmitting differential
data.
5
Power led
After the G6 turn on, the led always light and
indicate the remaining power.
6
Power key
Power on/off the receiver.
Satellite led (green)
It shows the amount of locked satellites; when the receiver links one or more
satellites signal it will start to blink every 30 seconds for a number of times equal to
