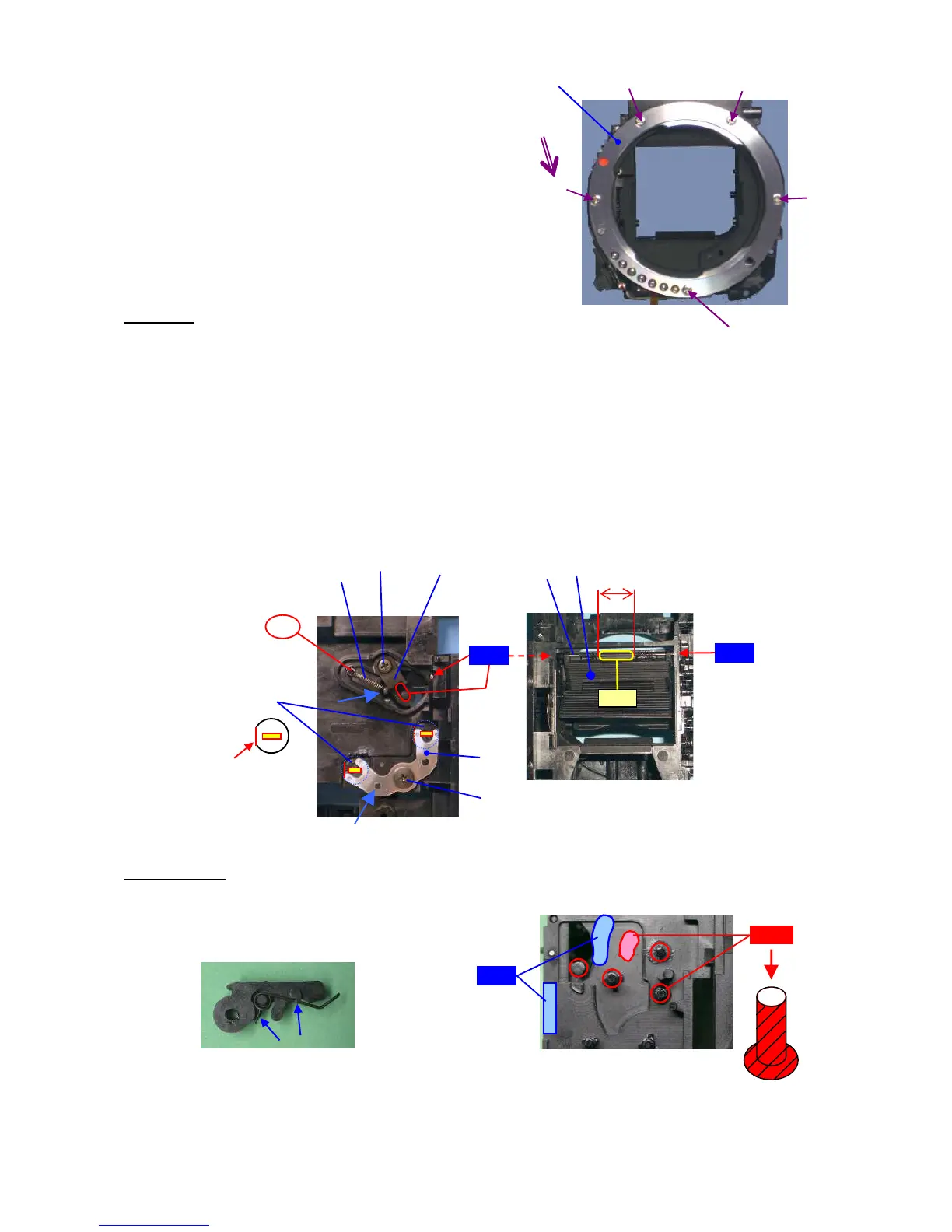

77420 - 20/107 -
⑨ A104
⑩ TY-CNS2.0x4.5Ni x5
*Tighten screw diagonally as shown in figure.
3．0-B52
①B58 x2 --- [Temporary position] Installing position as shown in figure below.
②B59
③TY-CNL-G1.7x2.0
④0-B52 (mirror sheet)
⑤B66 (shaft) --- Apply L115 at both side of B66 as shown in figure below.
Apply Daia bond (black) to fix 0-B52 as shown in figure below.
⑥B63
⑦B57
⑧B62 (spring) --- Apply screw lock.
4．B11・B20
① Apply G126 (5 positions) and L115 (2 positions) as shown in figure.
② Install B20 to B11.
②
