Pentax K-r - Page 37

77420 - 36/107 -

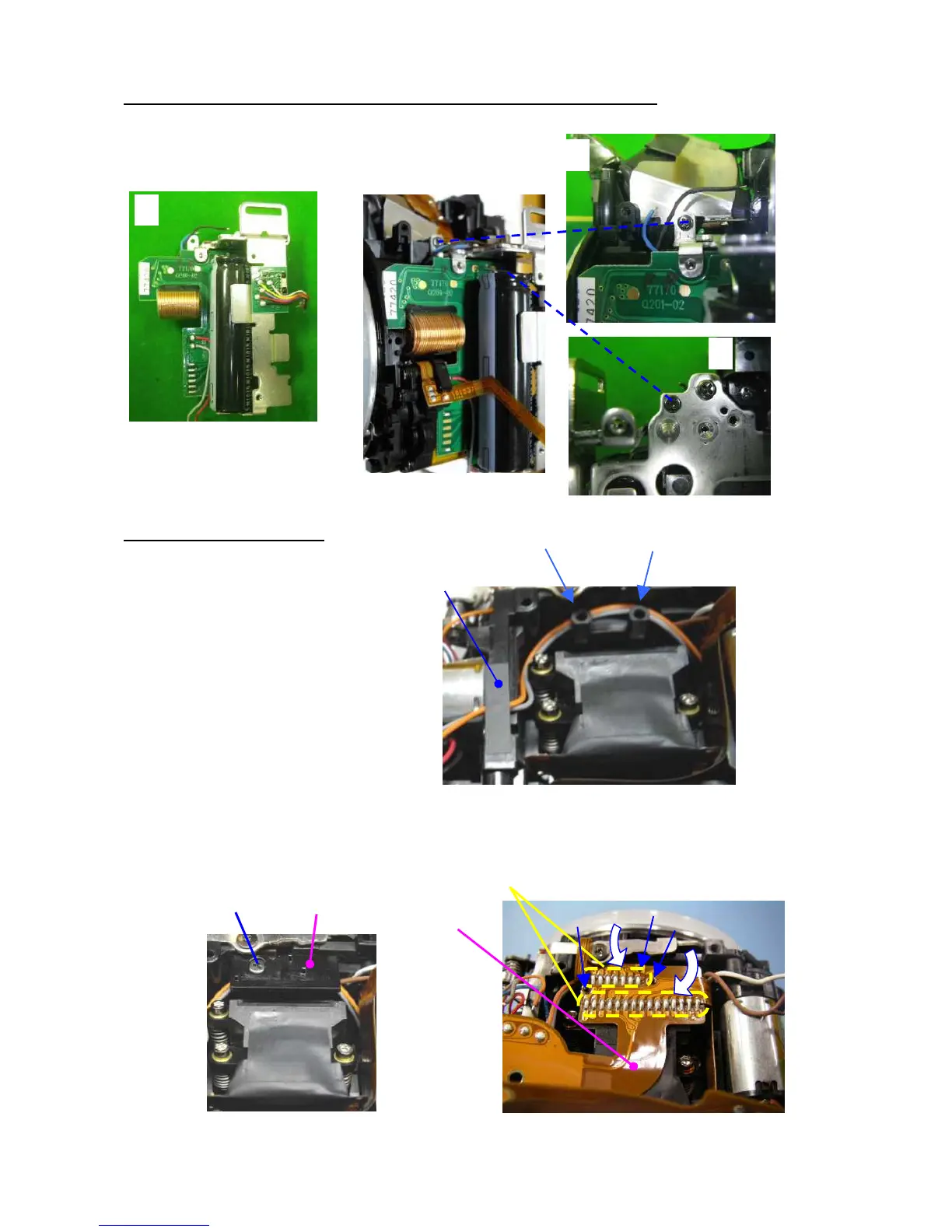

6. A4 and 0-Q200 (Right front plate, Flash P.C.board and related parts)
①Install A4 and 0-Q200 to 0-A101. Do not pinch lead wires.
②TY-CNL-D1.7x4.0
③CNL-D1.7x2.5
7. T901 (Lower flex board)
①X58 --- Arrange lead wires as shown in figure.
②A141
③TY-CNL-D1.7x3.5
④T901
⑤Solder 22 lands for T301 and M100.
①

③

②

①
③

②

⑤

④

