4/9 27550

3. Main P. C. Board (0-T100)

[Note of assembly]

3-1. When the viewfinder LCD is installed,

push the LCD to the direction of allow mark.

(Same as MZ-10)

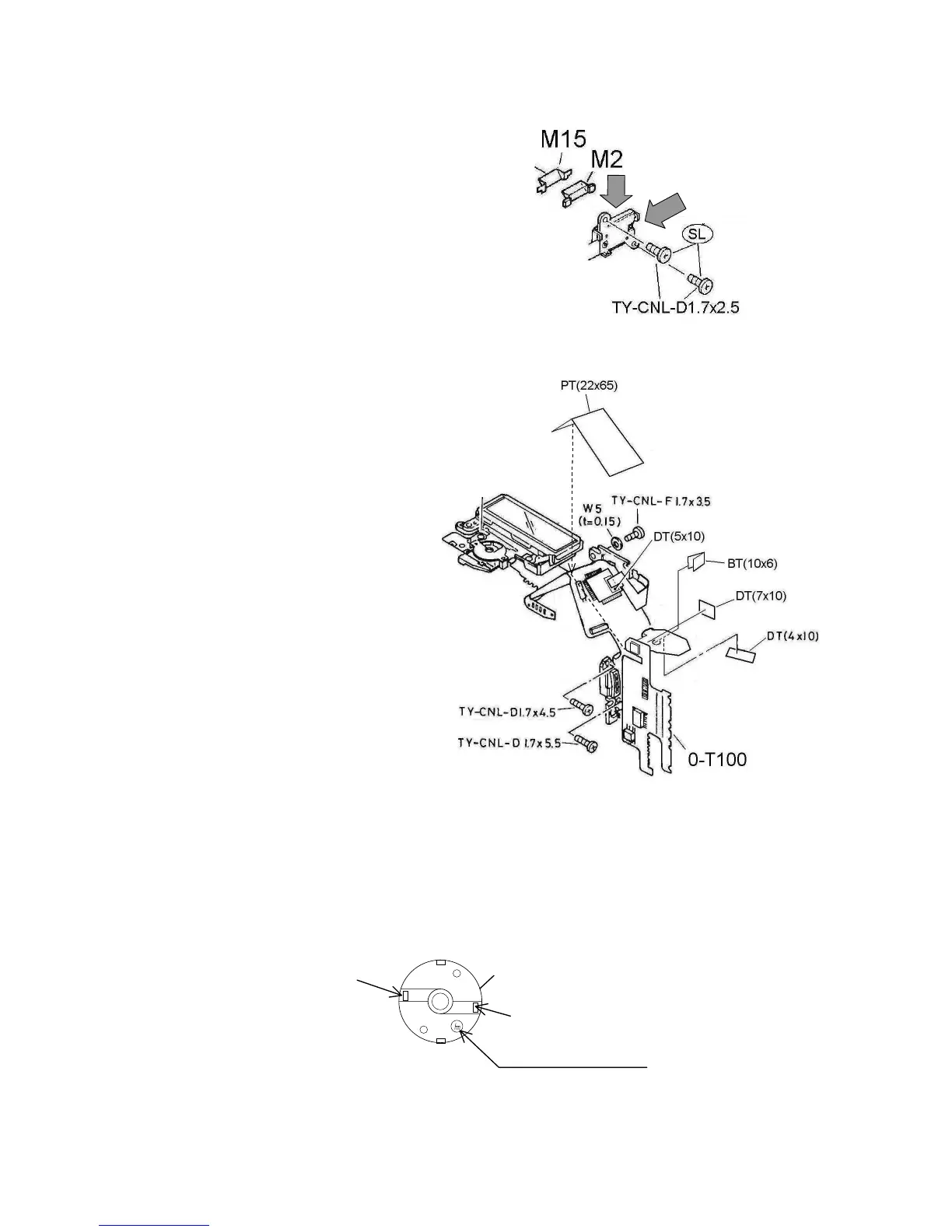

3-2. Stick the tape (DT, PT and BT) as shown in the figure.

4. Main body



[Note of assembly]

The soldering position of winding motor (0-S200)

The length of the lead wire is different from MZ-5. In case of 0-S200 is replaced, lead wires

should also be replaced.

Pink (65mm) 0-S200

Brown (65mm)

Ground (GND) mark
