Pentax MZ-7 QUARTZ DATE - Top Cover Disassembly and Arrangement

27550 5/9
5. Top cover (0-A301)
[Note of assembly]
When assembling the top cover, refer to the Parts list and figures below.
The type of the Hot shoe cover should be “FK” type for MZ-7. (The other type may activate
the switch (A329) and result the Flash won’t pop-up.)

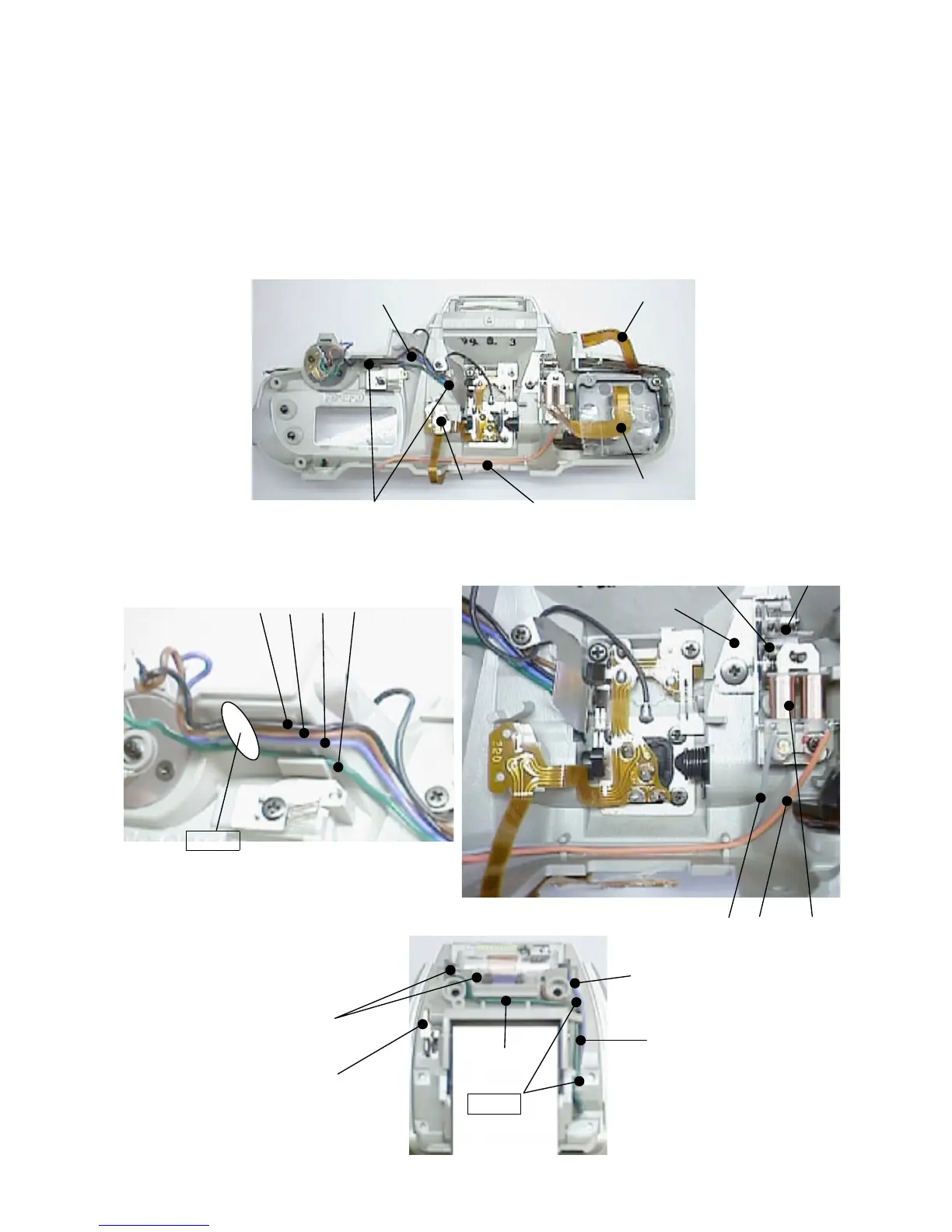

5-a. Arrangement of the reverse side of top cover
DT (7x10) 0-T57
DT (5x7) 0-T20
DT (4x10) T60
*Arrangement of Q100’s lead wires *Center part of top cover
0-A373 0-A365
Black Brown Blue Green (Q100) 0-A368
Bond
Gray Orange G119
5-b. Flash frame (Q2)
Blue
Apply silicon
(4 points) From top, Green, Brown,
Green Black and Blue
Q3 (Adj.)
Bond
