Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 13
3.2.1 Transport trolley
The lid of the remote box may also be
opened for extra workspace.

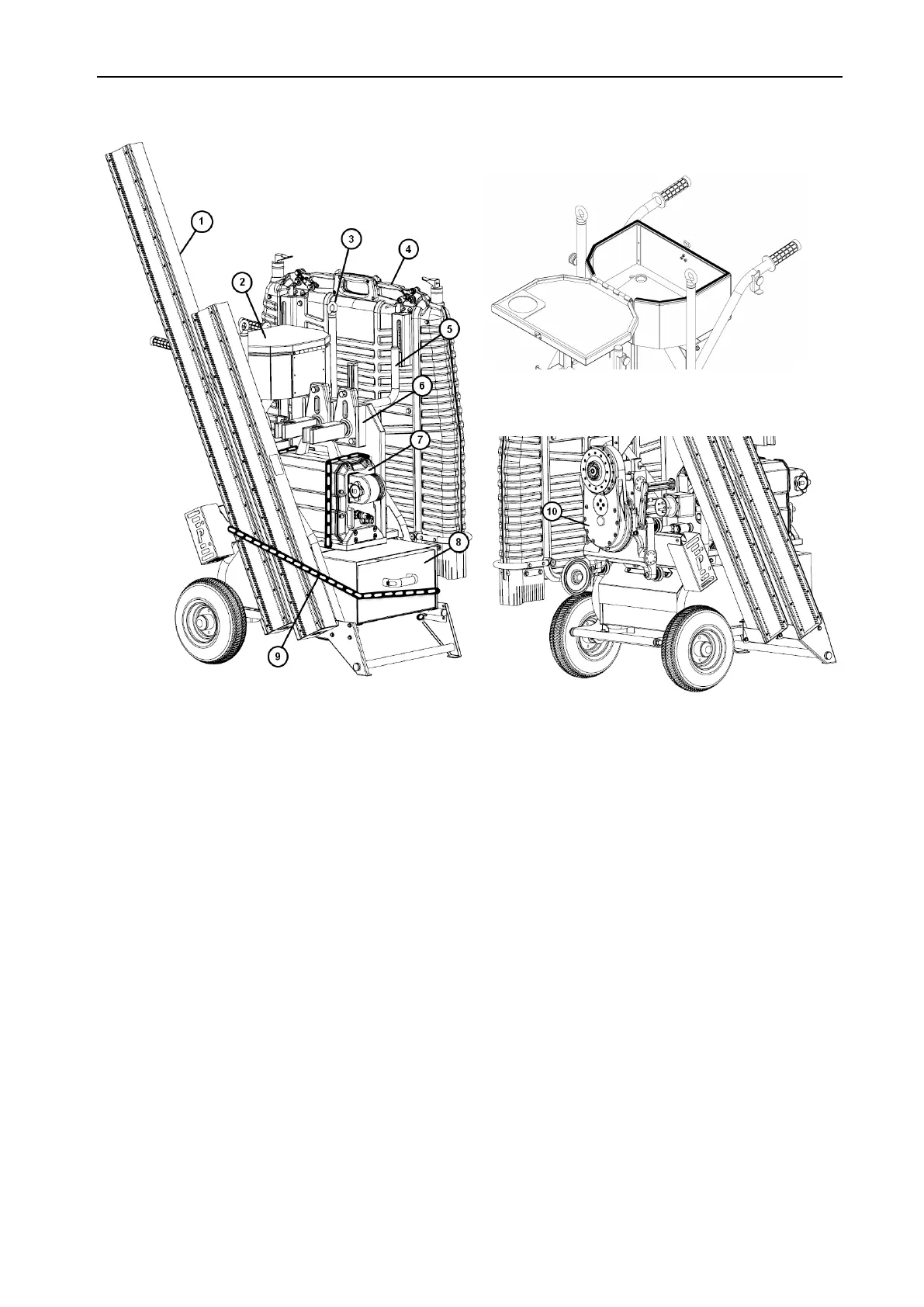

Loaded transport trolley front Loaded transport trolley back
1. Provision for two tracks with track stop.
Slide on from the side with the upper hook in the T-slot on the track. Let it rest on the support.
2. Box with locking mechanism for Radio remote control and cable.
Lock with the eccentric lock on the box.
3. Two lifting eyelets
4. Bracket for max Ø800 mm saw blade and hooks for the blade guard (max Ø800)
Put the blade flange (which is fitted on the saw blade) on the bracket from above. Slide the blade guard over the
saw blade from above and let it rest on the two hooks. Lock the blade guard in place with the blade guard locking
mechanism (see 3.6)
5. Hook for machine cable, water hose and blade guard holder
Roll up cables and hoses in safe way and hang them on the hook. The blade guard holder can also be put here.
6. Bracket for two track feet
7. Bracket for Pentpak with two rubber straps.
The power pack should be positioned as in the picture and fastened with two rubber straps from the hooks on the
middle part, through the holes to the front plastic hooks on the bracket.
8. Tool box for two track feet and extra equipment
The tool box must be lifted slightly upwards and out to open. Extra space for drilling machine.
9. Safety strap for track and tool box
Pull the long rubber strap from the hook on the side bracket behind the track, over the tracks, under the handle on
the tool box, and fasten on the little hook on the foot.
10. Bracket for saw unit
The saw unit is fastened at the back by clamping it with its locking device.
