Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 7

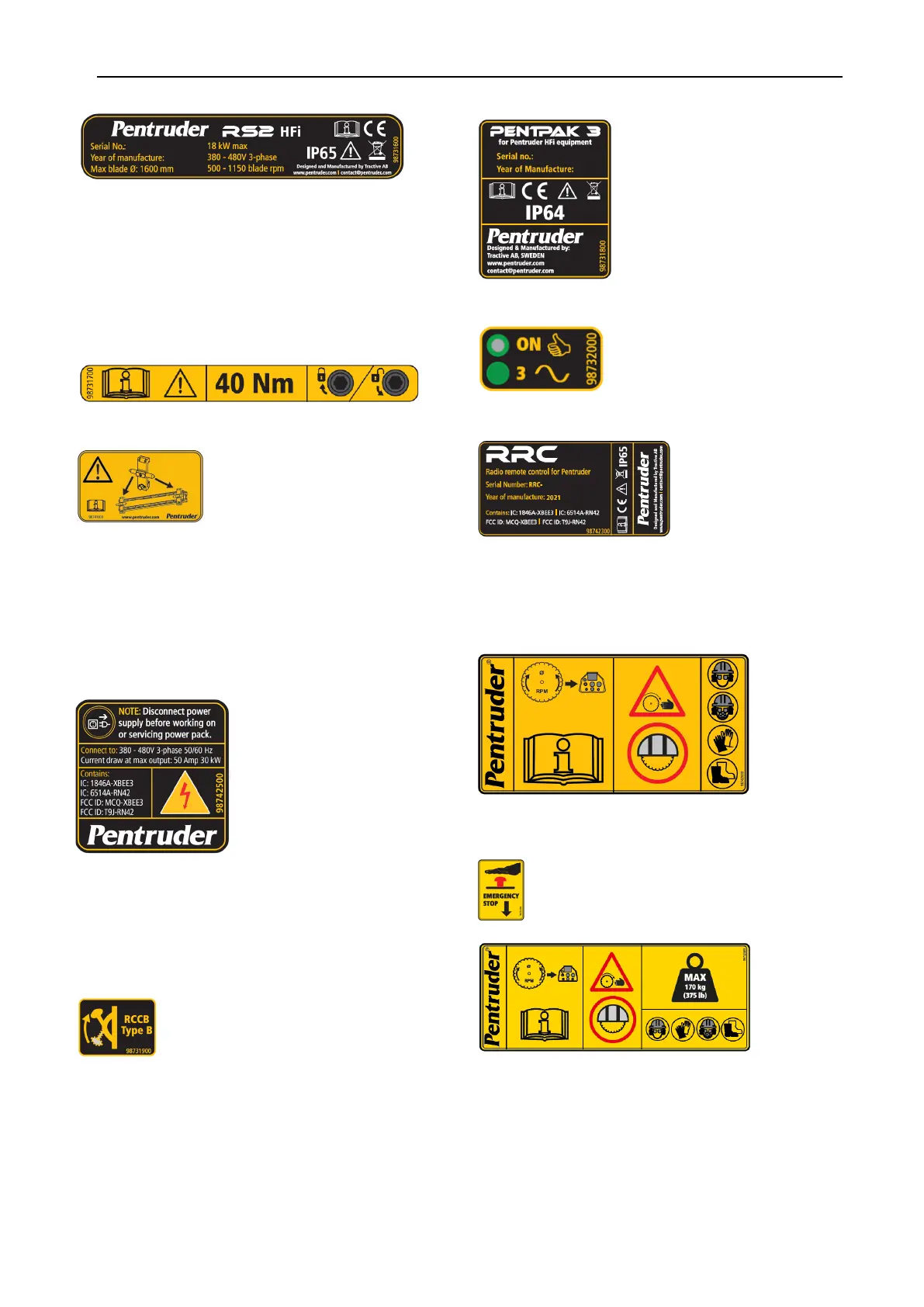

1. Machine sign for RS2 saw head
a. Serial number of Pentruder RS2
b. Year of Manufacture
c. Max blade diameter
d. Maximum output power 18 kW
e. Connect to 380 – 480 V input power, see chapter 3.8
f. Blade speed range is between 500 and 1150 RPM
Symbols, see 1.2.1
2. Information sign about locking mechanism for blade
quick disconnect coupling
See symbols above and chapter 3.5 for instructions.
3. Sign on Track
Track stops should be mounted at both ends of the track. See
chapter 3.3 for instructions.
4. High voltage warning sign on Pentpak 3
Symbol, se 1.2.1. See also chapter 2.2 general safety and 3.8
for description
5. Information about radio, and warning sign about
high voltage
.
Disconnect power supply before working on or servicing the
machine
Connect to 380 – 480V 3-phase 50/60 Hz
Current draw at max output: 50 A, 30 kW
Contains: list of radio modules
Symbols, see 1.2.1
6. Residual Current Circuit Breaker
The RCCB is situated under the cover to the right.
7. Machine sign for Pentpak 3
8. Sign for Green button and Voltage indicator
9. Radio remote control (RRC) type sign
a. Serial number of Radio remote control
b. Manufacturing year
c. Contains: list of radio modules
Symbols, see 1.2.1
10. Warning sign, blade guard
Symbols, see 1.2.1
11. and 12. Signs on trolley
Shows position of Emergency stop on Pentpak 3
Max permissible total weight 170 kg. Blade guard must be
mounted if trolley is loaded with saw blade (see also 3.2).
Symbols, see 1.2.1.
a. Serial number of Pentpak 3
b. Manufacturing year
(upper button) and Voltage
indicator (lower lamp).
