6 Peplink Balance Overview
6.1 Peplink Balance One

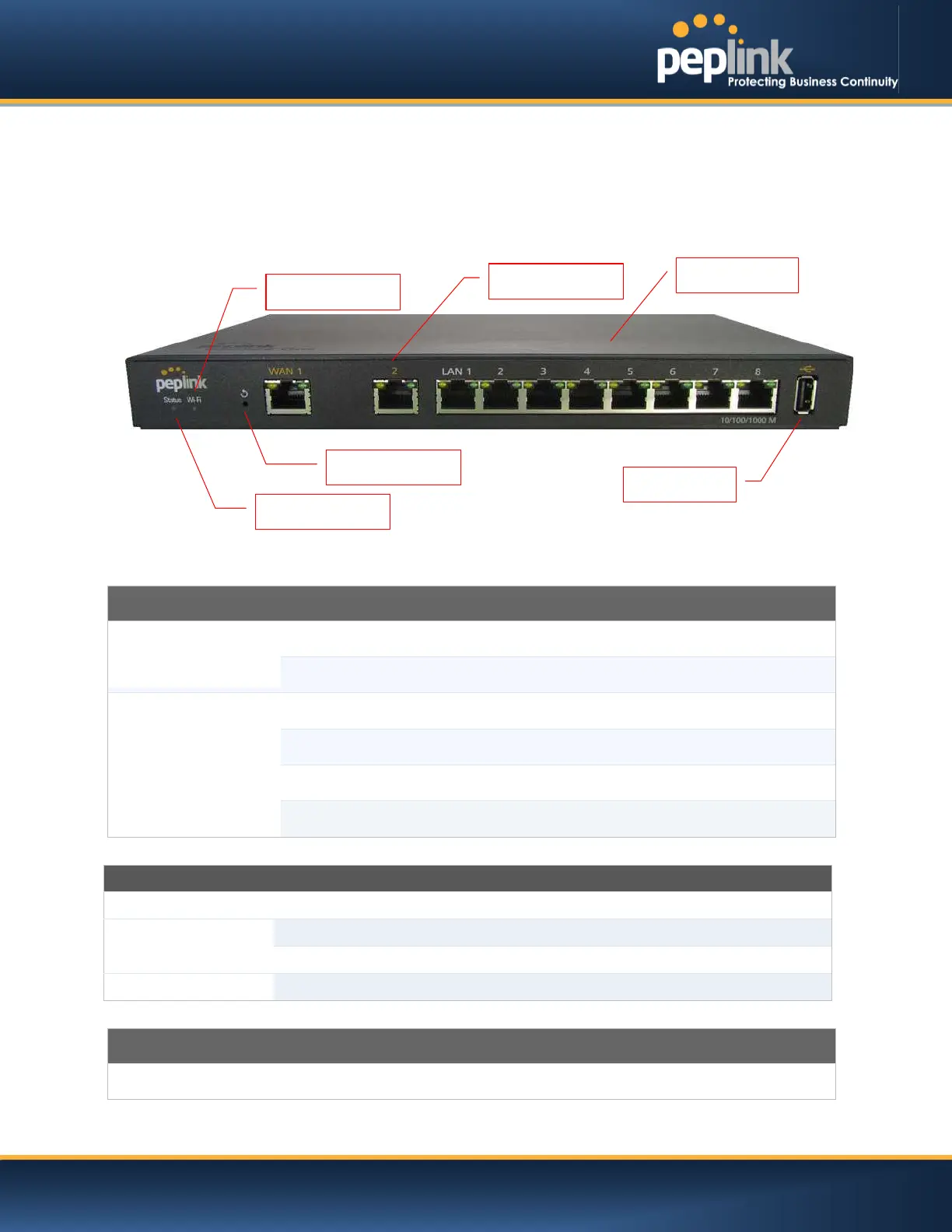

6.1.1 Front Panel Appearance
.
6.1.2 LED Indicators
The statuses indicated by the front panel LEDs are as follows:
Power and Status Indicators
Wi-Fi
OFF
– Wi-Fi is off
Green
– Ready
Status
OFF
– Upgrading firmware
Red
– Booting up or busy
Blinking r
ed– Boot up error
Green
– Ready
LAN and WAN Ports
Green LED
ON
– 10 / 100 / 1000 Mbps
Orange LED
Blinking
– Data is transferring
OFF
– No data is being transferred or port is not connected
Port Type
Auto MDI/MDI
-X ports
USB Port
USB Ports
For
future functionalities.
Status LED
USB Port
LAN Ports
WAN Ports
Reset Button
Wi-Fi LED
