BTC12N-*
Installation
2. There is a movable clamp on the top of the DIN rail adapter. Install the BTC12 at a slight angle
with the movable clamp over the DIN mounting rail. Apply light pressure to pull the BTC12
downward and clamp the adapter into the rail.

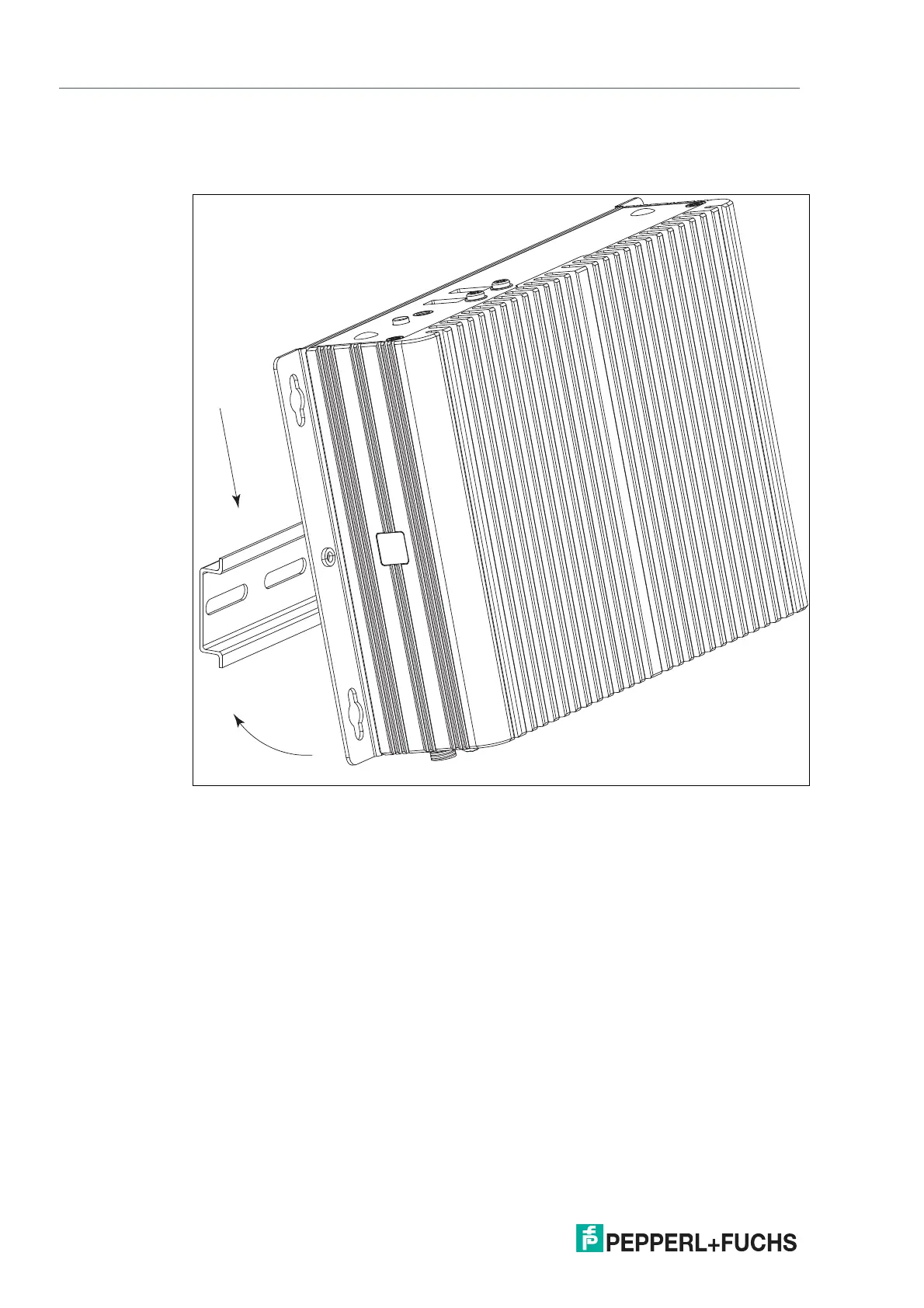

Figure 3.4
1.
2.
