2. Side Panel Assembly
Use three 1/4-in. x 15-mm truss head screws from Pack C
and three locking washers from Pack D to connect the bottom
of the left side panel (B) to the bottom panel (A). Make the
left side panel flush with the rear of bottom panel and tighten
the screws.
Repeat steps for the right side panel (C).
3. Back and Side Panel Assembly
Remove the back panel from the carton. Position the back
panel (A) with the flat side facing outward. Attach the back
panel to the bottom panel (B) with three 1/4-in. x 15-mm truss
head screws from pack C and three 1/4-in. locking washers
from pack D as shown in fig. 3.
Use four 1/4-in. x 15-mm truss head screws from pack C and
four 1/4-in. locking washers from pack D to connect the back
panel to the right and left side panels (C) as shown in fig. 4.

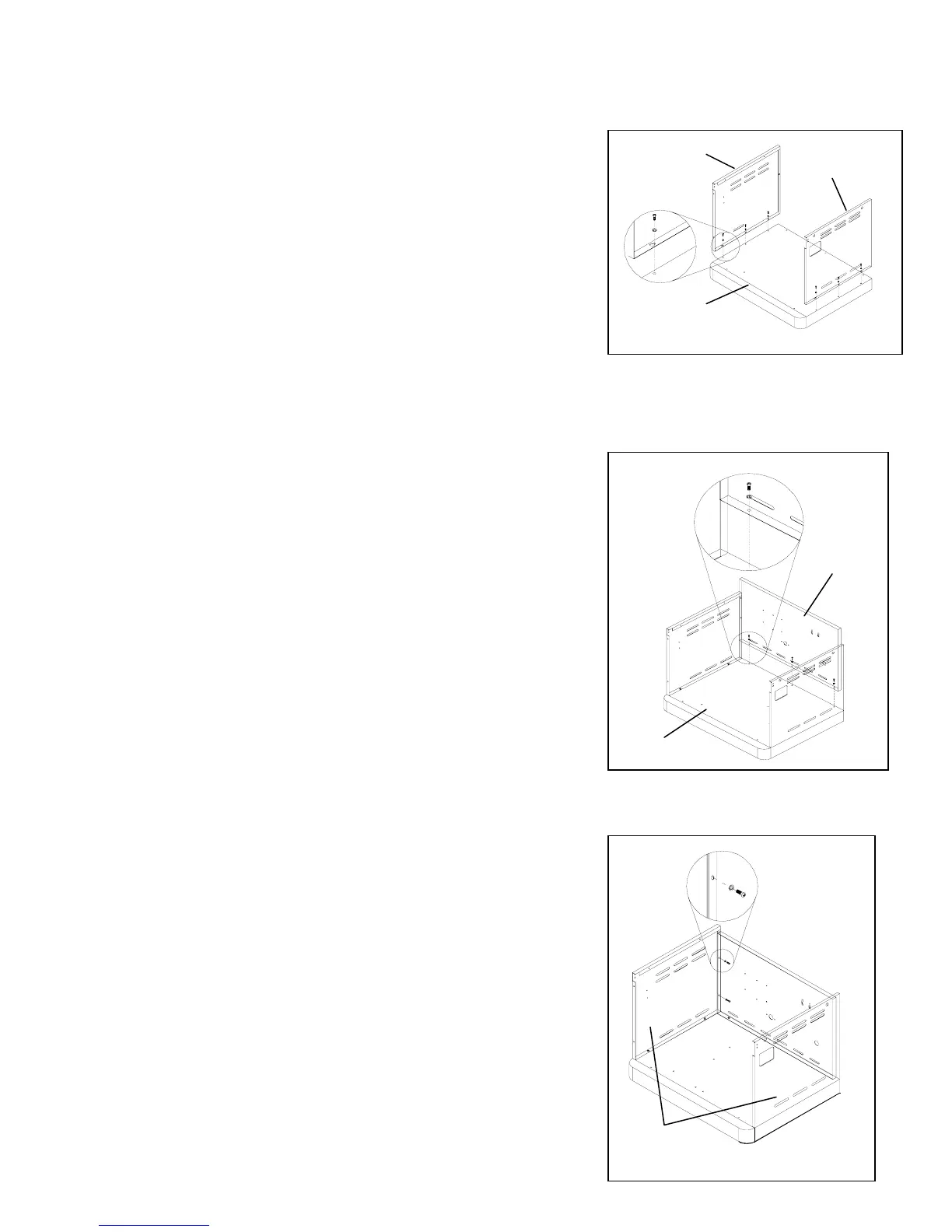

Fig. 2
Fig. 3
Fig. 4
C
B
A
A
B
C
