Perfect Flame GSC3318 - Page 9

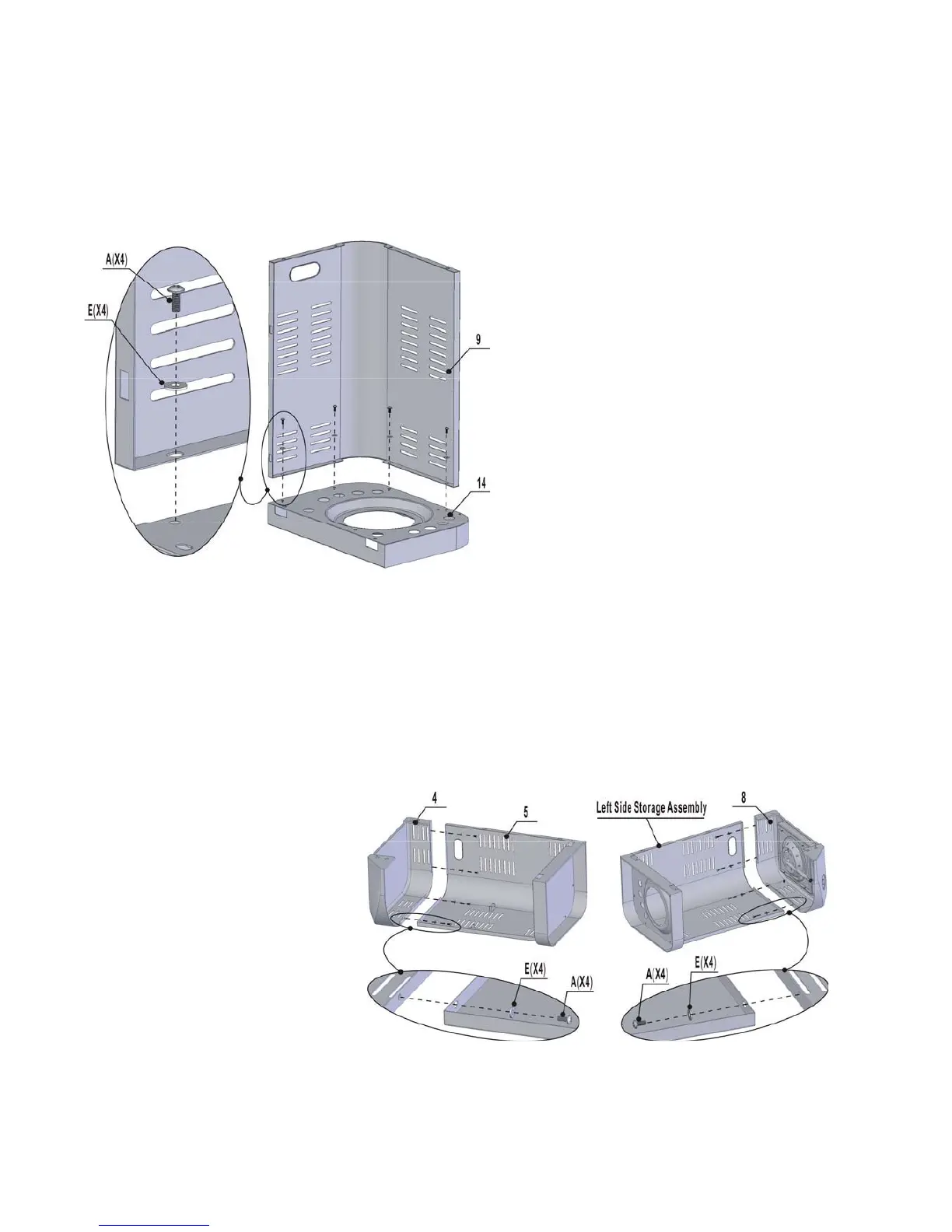

Step 3
Align the holes on the left storage (9) with the
holes on the tank support (14).
Screw a M6x12mm bolt (A) with a M6 washer
(E) into each pre-drilled hole.
Tighten by hand until secure.
Go back and tighten with the
screwdriver provided.
Step 4
Align the holes at the right storage (5) with
the holes on the right sight shelf (4).
Screw a M6x12mm bolt (A) with a M6
washer (E) into each pre-drilled hole.
Tighten by hand until secure.
Repeat the same procedure for the left
storage assembly with left side shelf (8).
Tighten by hand until secure.
Go back and tighten with the
screwdriver provided.
GSC3318
8
Owner’s Manual
