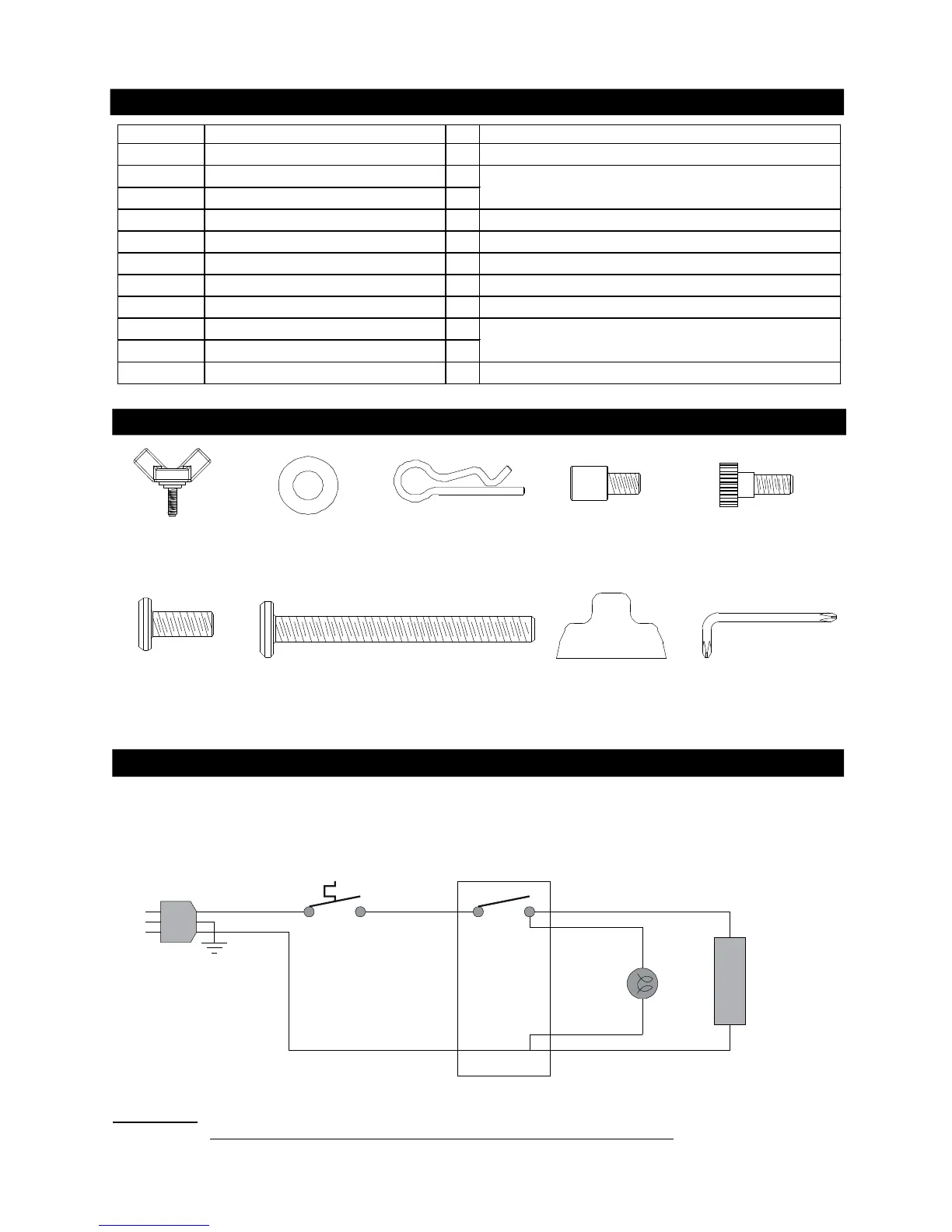

Hardware Pack Diagram for Model LE1808CA
Hardware Pack Parts List for Model LE1808CA
Specification and Wiring Diagram
AC Power Rate: 120 VAC / 60 Hz, 1,700 Watts
Temperature Setting Range: 120°F ~570°F
•
•
WARNING
: If any of the original wire supplied with the appliance needs to be replaced,
it must be replaced with specified type as above or its equivalent
.
AC120V/60Hz
Green/AW G14/105°C Chassis
White/AW G14/105°C
Black/AWG14/105°C
White/AW G14/105°C
White/AW G18/105°C
Black/AWG18/105°C
White/AW G14/200°C
Black/AWG14/200°C
Heat Element
120VAC/1,700Watt
Indicator
120VAC
Electric Timer
Module
Thermostat
120°F~570°F
PART # PART DESCRIPTION QTY PURPOSE OF PART
P06027002A Hardware Pack 1 For use in assembly of Model LE1808CA
P05501106B
Cotter Pin 2
S411G07012
Washer 7/16 in. 2
S112G04324
Phillips Head Screw 1/4 in. X 2 in. 8 Attaches Cart Bottom Shelf between Cart Legs
S112G04084
Phillips Head Screw 1/4 in. x 1/2 in. 8 Attaches Bowl Brackets to Upper Cart Legs
S112G04084
Phillips Head Screw 1/4 in. x 1/2 in. 8 Attaches Side Shelf Bracket to Cart Legs
S233G04104 Wing Bolt 1/4 in. x 5/8 in. 6 Attaches Grill Head onto Bowl Bracket
PD13010050
Control Knob for Electric Burner 1 Attaches to Control Panel
S138G04104
Pattern Head Screw 1/4 in. x 5/8 in. 8
P05515020B
"L" Screwdriver 1
S193G04074
Special Flat Head Screw 1/4 in. x 7/16 in. 2 Attaches to Grease Tray Bracket
Attaches Wheel Axle and Wheels to Cart Legs
Attaches Side Shelf to Side Shelf Bracket
Control Knob for
Electric Burner
Qty. 1
Part # PD13010050
Scale: 1:2
Wing Bolt
1/4 in. x 5/8 in.
Qty. 6
Part # S233G04104
Washer 7/16 in.
Qty. 2
Part # S411G07012
Pattern Head Screw
1/4 in. x 5/8 in.
Qty. 8
Part # S138G04104
Phillips Head Screw
1/4 in. x 1/2 in.
Qty. 16
Part # S112G04084
Phillips Head Screw
1/4 in. x 2 in.
Qty. 8
Part # S112G04324
Cotter Pin
Qty. 2
Part # P05501106B
Special Flat Head Screw
1/4 in. x 7/16 in.
Qty. 2
Part # S193G04074
"L" Screwdriver
Qty. 1
Part # P05515020B
Scale: 1:2
