Assembly Instructions
1
2
Cotter Pin
Qty. 2
Part # P05501106B
Washer 7/16 in.
Qty. 2
Part # S411G07012

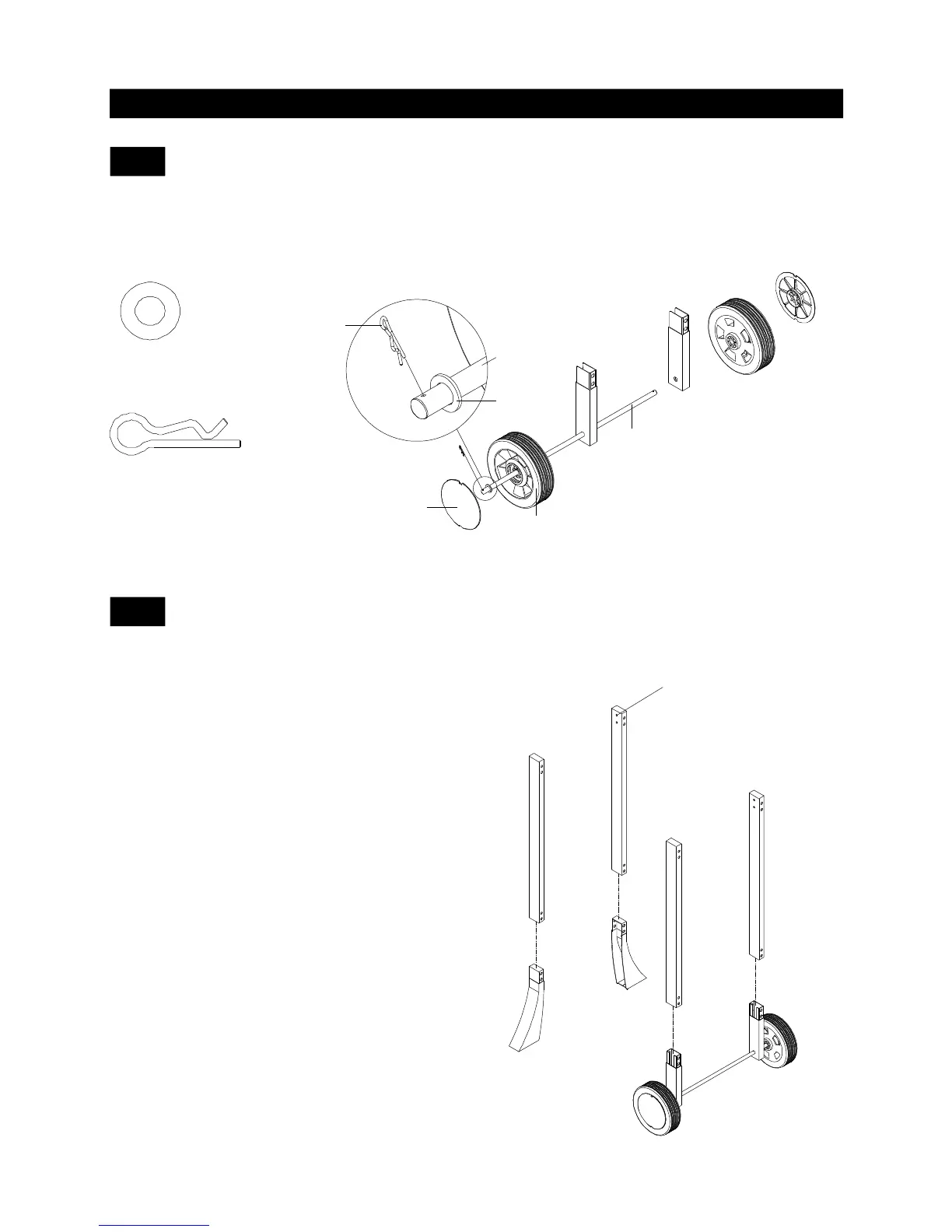

Install Cart Legs (Fig. 2)
Install Wheel (Fig. 1)
Fig. 1
Fig. 2
1.
2.
3.
4.
1.
2.
Lower Left
Cart Legs
Wheel
Hub Cap
Wheel
Axle
Wheel
Wheel
Axle
Washer
Cotter
pin
Lower Left
Cart Legs
Upper Left
Cart Legs
Upper Right
Cart Legs
Lower Right
Cart Legs
Double holes
face inward
Thread Wheel Axle on the Lower Front Left Cart Legs.
Insert1Wheeland1Washer7/16in.totheleftsideof
Wheel Axle and secure Cotter Pin as shown.
Snap the Wheel Hub Caps onto the Wheels.
Repeat steps for the rear right side of Wheel Axle.
Align the 2 holes on the Lower Right Cart Legs with the
threaded holes on the Upper Right Cart Legs and snap
fit the two parts together.
Repeat Steps for Upper Left Cart Legs and Lower Left
Cart Legs.
