Perfect Flame LE1808CA - Page 8

Upper Left
Cart Legs
Upper Right
Cart Legs
Lower Right
Cart Legs
Lower Left
Cart Legs
Cart Bottom Shelf
Double holes
face inward
8
3
Phillips Head Screw
1/4 in. x 2 in.
Qty. 8
Part # S112G04324

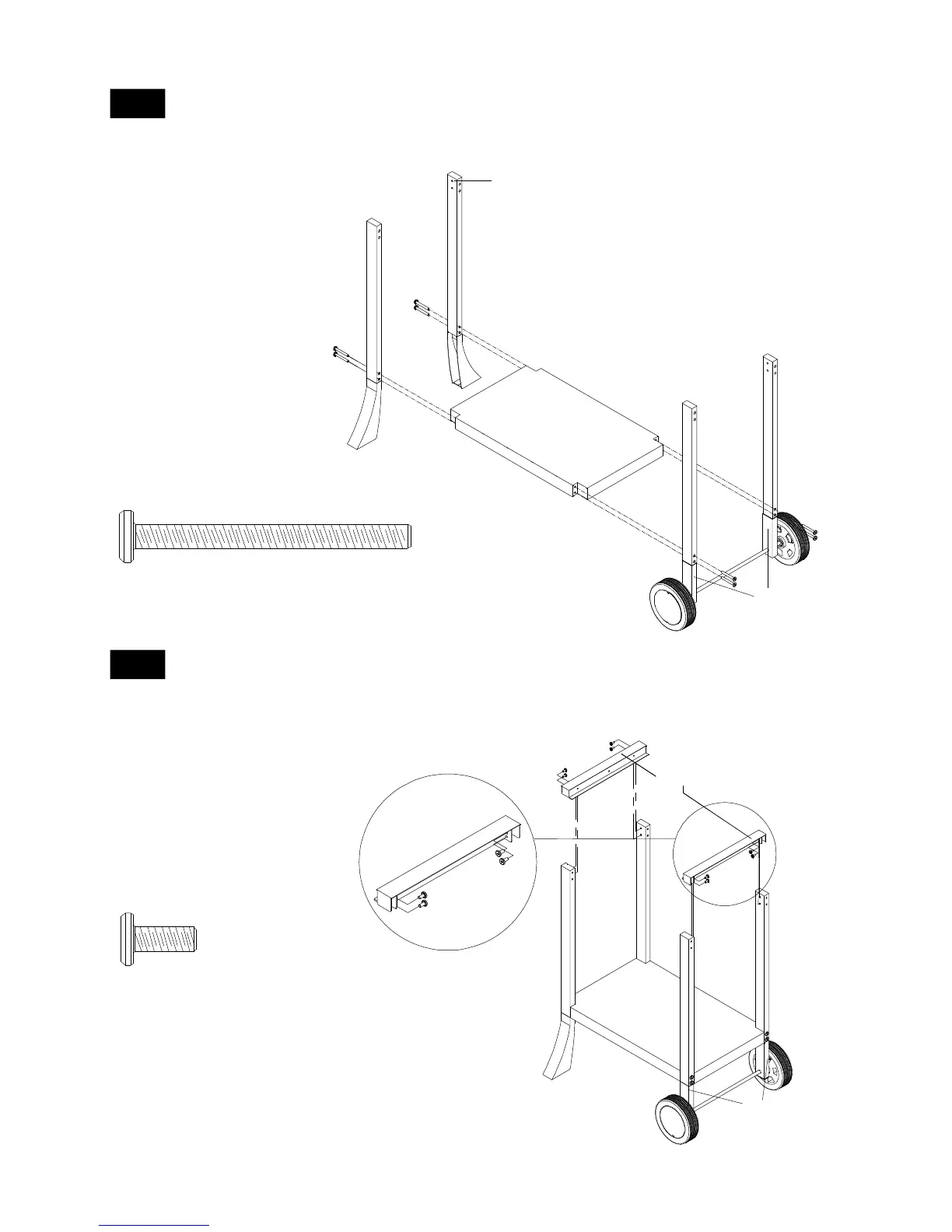

Install Cart Bottom Shelf (Fig. 3)
Install Bowl Brackets (Fig. 4)
Phillips Head Screw
1/4 in. x 1/2 in.
Qty. 8
Part # S112G04084
Fig. 3
Fig. 4
1.
2.
1.
2.
3.
Lower Left
Cart Legs
Upper Left
Cart Legs
Left Bowl
Bracket
Right Bowl
Bracket
Cart Bottom
Shelf
Lower Right
Cart Legs
Flat plate faces inward
Right Bowl
Bracket
4
Attach the Cart Bottom Shelf between the Cart Legs (as
shown).
Note: Ensure double holes face inward on 4 Cart Legs.
Insert 2 Phillips Head Screws 1/4 in. x 2 in. per Cart Leg
and tighten securely.
Attach a Right Bowl Bracket between the Upper Right Cart
Legs.
Note: Ensure flat plate faces inward.
Insert 4 Phillips Head screws 1/4 in. x 1/2 in. and tighten
securely.
Repeat steps for Left Bowl Bracket between the Upper
Left Cart Legs.
