Perfect Vision PV-SFA - Installing Tie Back Pipes (Single Sector Installation)

3/8"
3/8"
4 1/2"
1"
DETAIL U
SINGLE SECTOR TIE BACK PIPE INSTALLATION
PV-SAM-U
DETAIL V
SINGLE SECTOR TIE BACK PIPE INSTALLATION
A
A
B
B
DETAIL W
FRAME ATTACHMENT
5/8" X 4" BOLT KIT
END PLATE
1/2" X 1-1/2"
BOLT KIT
DETAIL X
LEG ATTACHMENT WITH PV-SAM-U
1/2" X 6" BOLT KIT
BENT BACKING
PLATE
CROSSOVER PLATE
LEG BRACKET
5/8" X 1-3/4"
BOLT KIT
5/8" X 2-3/4"
BOLT KIT
1/2" X 12" ALL
THREAD WITH HW
TRIM EXCESS OFF
TIE BACK PIPE

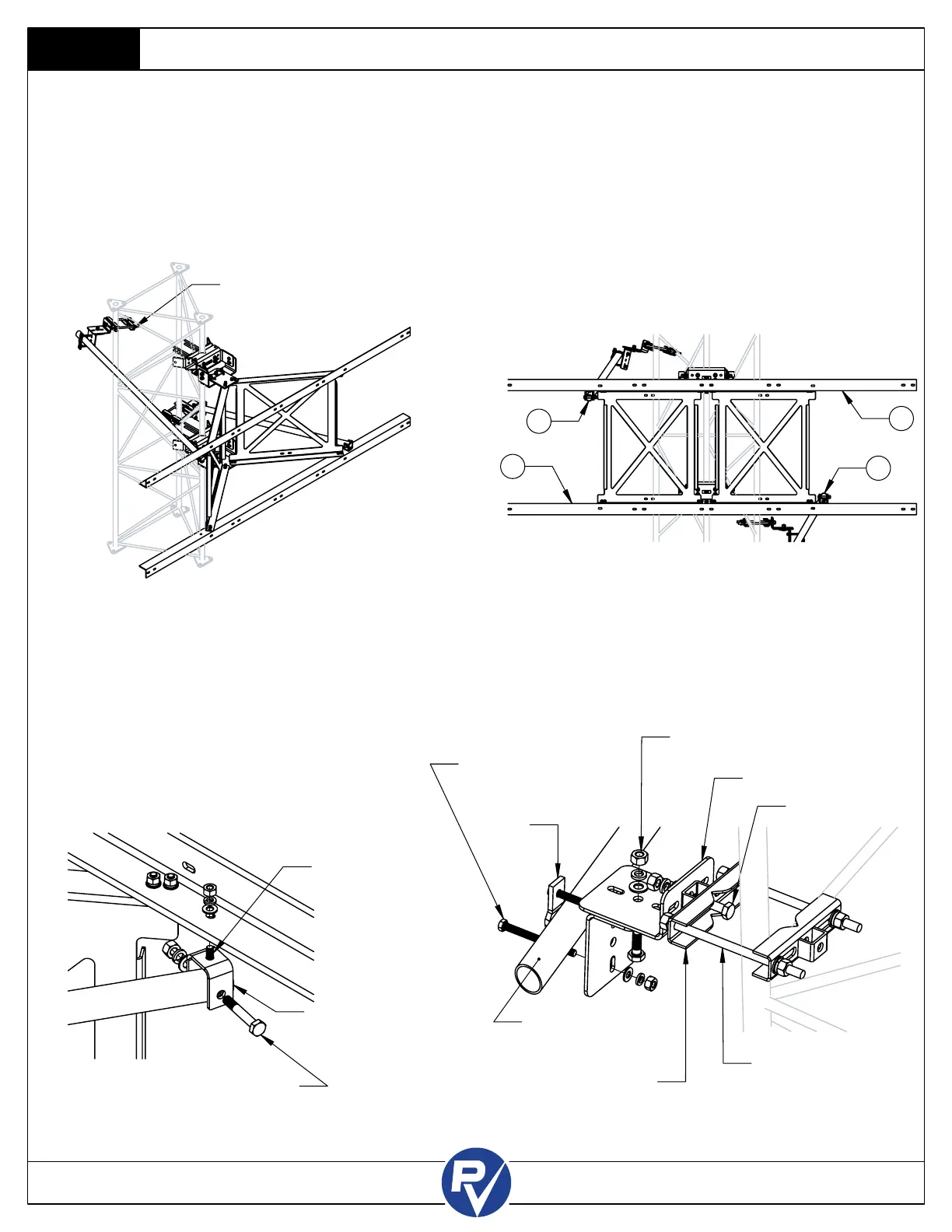

INSTALLING TIE BACK PIPES FOR SINGLE SECTOR INSTALLATION
Note: This step is for Single Sector installations only. For (3) Sector installations, see Step 6A.
Attach Tie Back Pipe to the face of the Frame using (1) Stiff Arm End Plate, (1) 1/2" x 1-1/2" Bolt Kit, and (1) 5/8" x 4" Bolt
Kit. Attach Tie Back Pipe to adjacent leg using PV-SAM-U kit. Do not install Tie Back Pipe to tower horizontals or diagonals.
Trim excess Tie Back Pipe 12" past the leg attachment point. Apply (3) coats Zinga to all field cut and drilled surfaces. Repeat
for additional stiff arm.
NOTE: TIE BACK PIPES MUST BE INSTALLED ON OPPOSITE CORNERS OF FRAME (LOCATIONS A-A OR B-B). DO
NOT INSTALL TIE BACK PIPES IN AN A-B CONFIGURATION.
GALVANIZED
2393.06
---
STEP 6B
www.perfect-vision.com
PV-SFA-INS-01-R6
1-844-887-6723 13 OF 20
