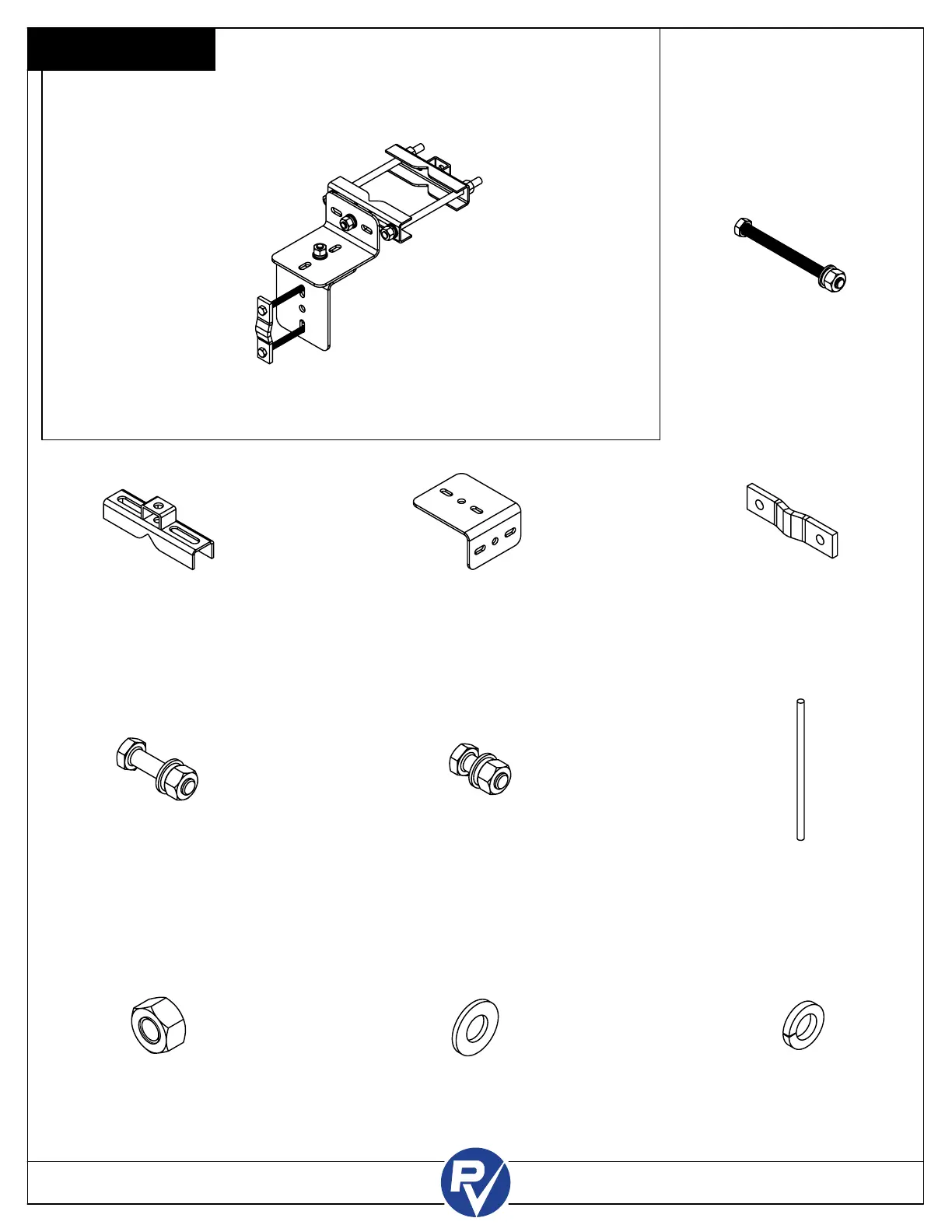

Perfect Vision PV-SFA - Optional Stiff Arm Leg Bracket Parts List (for Single Sector Installation)

PV-SAM-U
STIFF ARM LEG BRACKET
WEIGHT: 20 LBS
W033-005-01
LEG BRACKET
QTY: 2
WEIGHT: 2.5 LBS EACH
P597-019-01
CROSSOVER PLATE
QTY: 2
WEIGHT: 5 LBS EACH
P597-026-03
BENT BACKING PLATE
QTY: 1
WEIGHT: 1 LBS
HK1-0860-60
1/2" X 6" BOLT KIT
QTY: 2
WEIGHT: LBS EACH
HK1-1017-12
5/8" X 1-3/4" BOLT KIT
QTY: 2
WEIGHT: 0.24 LBS EACH
HK1-1017-12
5/8" X 2-3/4" BOLT KIT
QTY: 2
WEIGHT: 0.53 LBS EACH
H10-1012-08
1/2" X 12" ALL THREAD
QTY: 2
WEIGHT: 0.63 LBS EACH
H02-0008-13
1/2" A63DH NUT
QTY: 4
WEIGHT: 0.07 LBS EACH
H03-0008-02
1/2" F436 FLAT WASHER
QTY: 4
WEIGHT: 0.02 LBS EACH
H04-0008-01
1/2" LOCK WASHER
QTY: 4
WEIGHT: 0.02 LBS EACH
OPTIONAL STIFF ARM
ATTACHMENT KIT REQUIRED
FOR SINGLE SECTOR MOUNT
SETUP. (1) REQUIRED PER PIPE
ARM. SEE STEP 6B FOR DETAILS.
