3/8"
3/8"
4 1/2"
1"

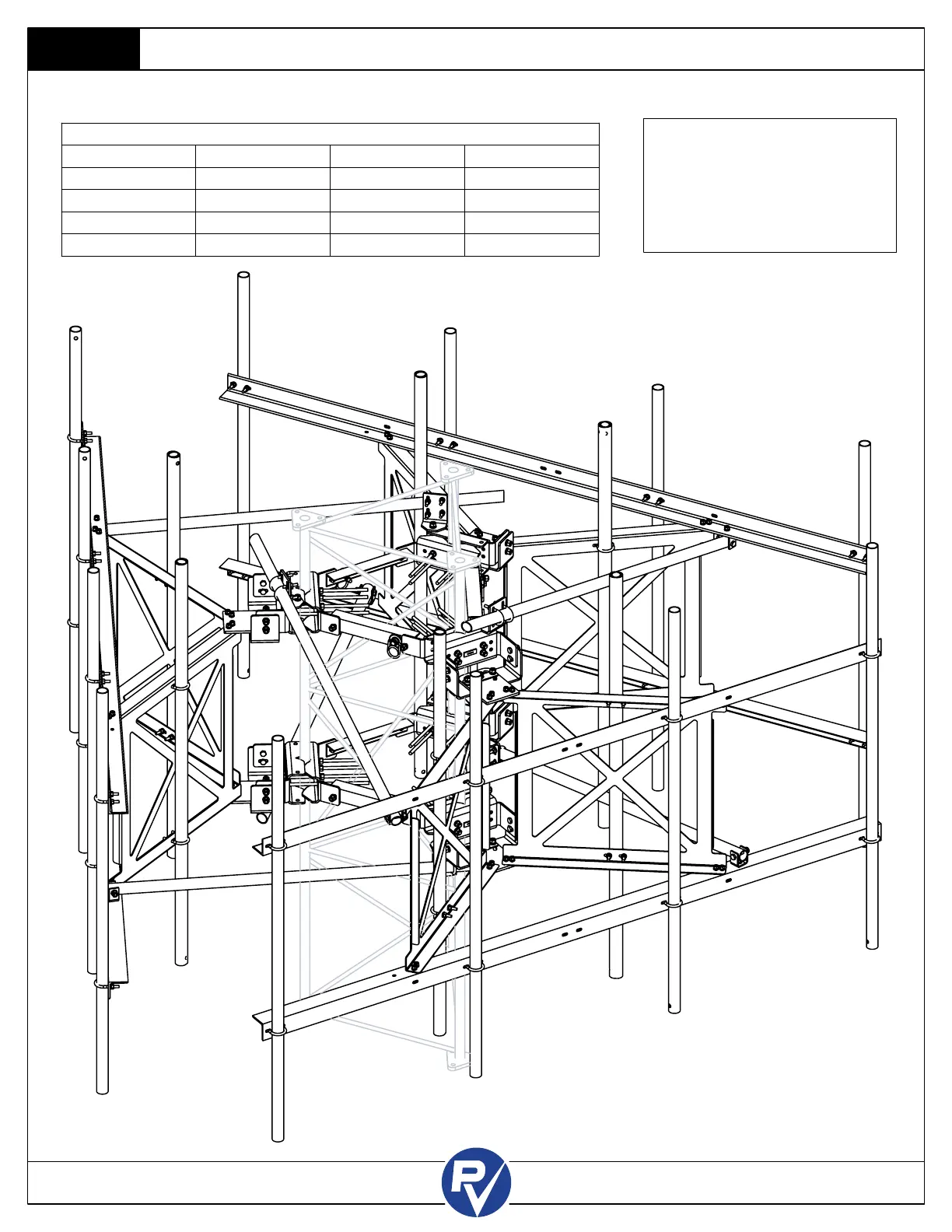

INSTALLING ANTENNA PIPE
Attach required Antenna and Equipment Pipe to the frame using 1/2" x 2-9/16" U-Bolt Kits. If 2-7/8" Antenna Pipe is used, an
alternate U-bolt must be purchased separately for installation.
NOTE: IF OTHER SPACINGS ARE
NEEDED, IT IS ACCEPTABLE TO
FIELD DRILL ADDITIONAL HOLES
IN THE SAME FACE ANGLES.
APPLY (3) COATS ZINGA TO ANY
DRILLED HOLES.
Table 3: Antenna Pipe Spacing
Part Number
3 Pipe Spacing 4 Pipe Spacing 5 Pipe Spacing
PV-SFA7-B
3' 6" 2' 4"
N/A
PV-SFA10-B
5'
3' 4"
N/A
PV-SFA12-B
6' 4'
N/A
PV-SFA14-B
7'
4' 8"
N/A
GALVANIZED
2393.06
---
STEP 8
www.perfect-vision.com
PV-SFA-INS-01-R6
1-844-887-6723
15 OF 20
