Perfect Vision PV-SFA - Pre-Assembling Sector Frame

3/8"
3/8"
4 1/2"
1"
B
C D
DETAIL A
FRAME ASSEMBLY
FACE ANGLE
X-FRAME
ROTATION PLATE
NOTE: DO NOT TIGHTEN
HARDWARE UNTIL FRAME
IS CONSTRUCTED
DETAIL B
SCALE 1 : 7
DETAIL B
TOP PLATE ATTACHMENT
1/2" X 1-3/4" BOLT
1/2" FLAT WASHER
1/2" LOCK WASHER
1/2" NUT
DETAIL C
SCALE 1 : 6
DETAIL C
BOTTOM PLATE ATTACHMENT
1/2" X 1-3/4" BOLT
1/2" FLAT WASHER
1/2" LOCK WASHER
1/2" NUT
DETAIL D
SCALE 1 : 8
DETAIL D
FACE ANGLE ATTACHMENT
1/2" X 1-1/2" BOLT
1/2" FLAT WASHER
1/2" LOCK WASHER
1/2" NUT

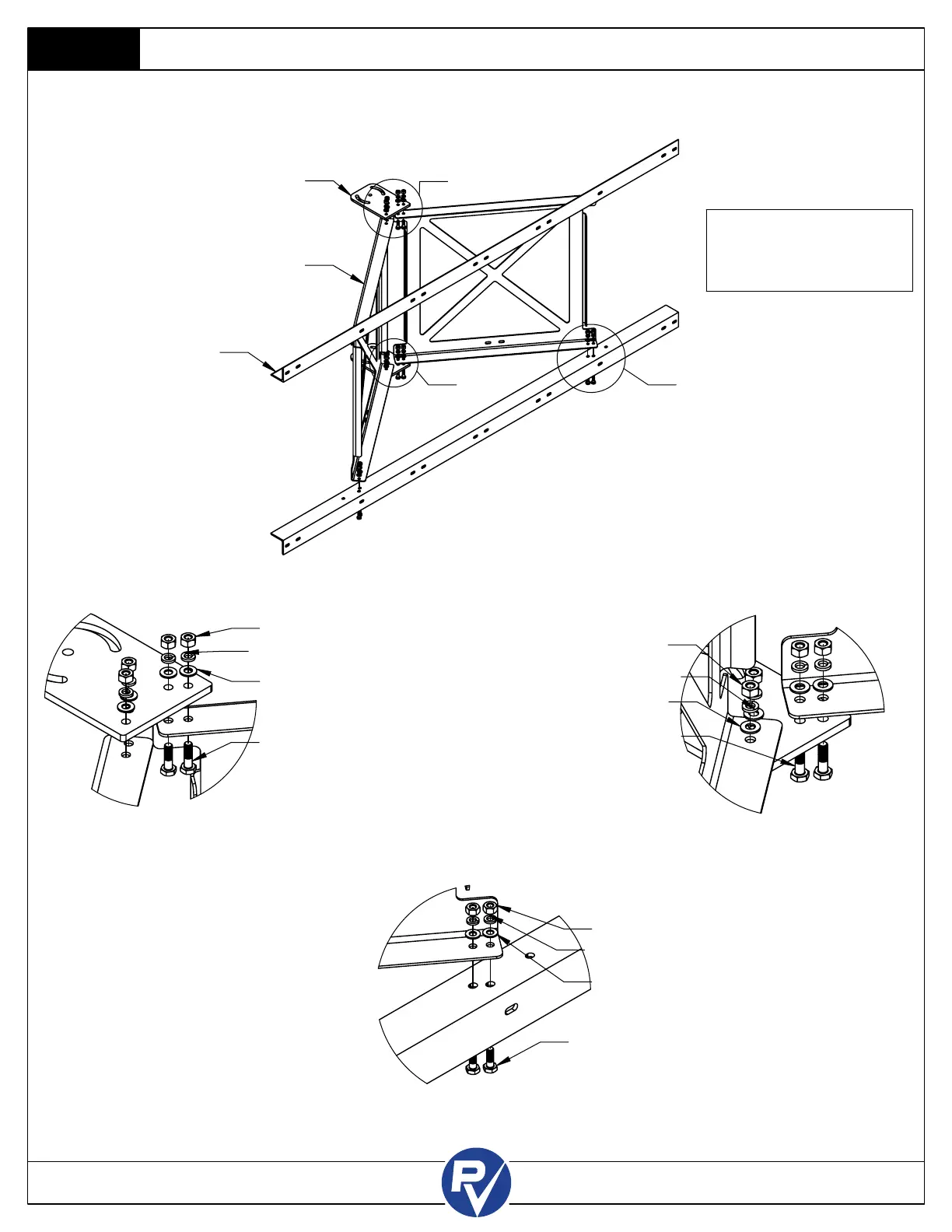

PRE-ASSEMBLING SECTOR FRAME
Pre-assemble the Sector Frame as shown at the ground level. Connect (2) Rotation Plates to the (2) X-Frames using (8) 1/2"
x 1-3/4" Bolt Kits. Connect (2) Face Angles to the Frame using (8) 1/2" x 1-1/2" Bolt Kits.
Note: X-Frames can be oriented to allow equipment mounting on the inside or the outside of the frame.
NONE
685.29
---
STEP 1
www.perfect-vision.com
PV-SFA-INS-01-R6
1-844-887-6723 8 OF 20
